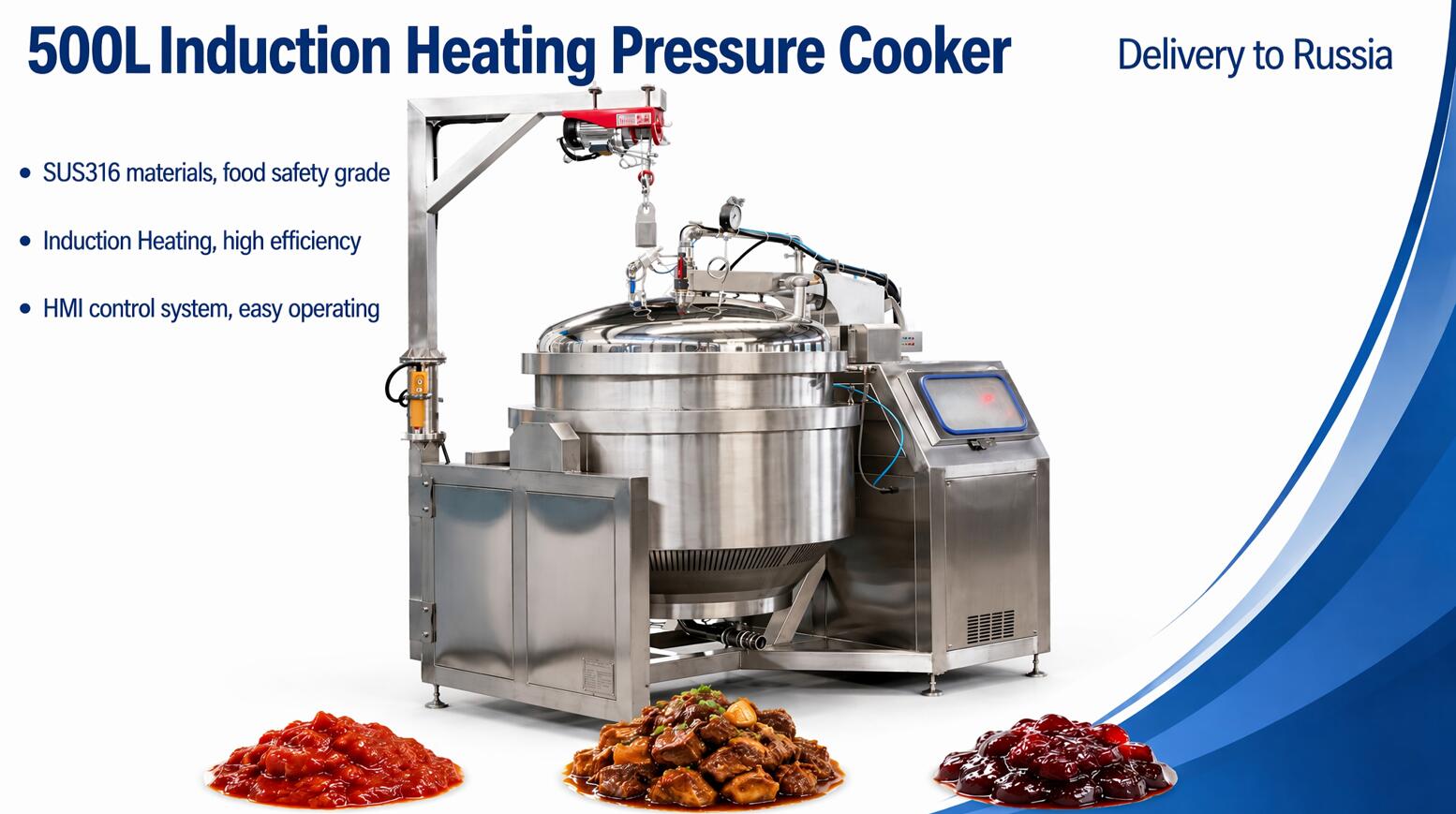

500L Industrial Electric Induction Pressure Cooker — TDPCI-500L for Food Processing | Delivery to Russia

1. Introduction: Meeting Russia's Demand for Large-Capacity Food Processing Equipment

Russia's food processing sector has undergone significant modernization over the past decade, driven by import substitution policies and growing domestic demand for processed meat products, canned goods, and ready-to-eat meals. Industrial-scale cooking equipment — particularly high-pressure cooking kettles — plays a central role in this transformation. For manufacturers producing bone broth, stewed meat, bean paste, or tomato sauce at commercial volumes, a 500L industrial pressure cooker represents the sweet spot between throughput and operational efficiency.

In this article, we examine the TDPCI-500L electric induction pressure cooker, a 500-liter fully automatic unit recently delivered to a Russian food processing facility. This system combines Siemens PLC automation, induction heating technology, and all-304 stainless steel construction to deliver consistent high-pressure cooking performance at industrial scale.

2. Applications: What Can a 500L Industrial Pressure Cooker Produce?

Before diving into the technical specifications, it is helpful to understand the range of food products this equipment supports:

The common thread across all these applications is the need for uniform heating, precise temperature control, and sustained high pressure — all of which the TDPCI-500L delivers through its induction heating and PLC-regulated pressure system.

3. TDPCI-500L Technical Specifications

The following table provides the complete equipment parameters for the 500L induction pressure cooker:

4. Key Features

4.1 Electric Induction Heating — 50 KW of Controllable Power

The TDPCI-500L uses electric induction heating rather than gas, steam, or thermal oil. Induction heating offers several advantages for industrial food processing:

• Thermal efficiency typically exceeds 90%, significantly higher than gas-fired alternatives

• Precise temperature ramping — the 50 KW power output is modulated by the PLC to follow programmed heating profiles

• Clean operation — no combustion byproducts, no flue gas management, and no open flame risk in the production area

• Uniform heat distribution across the bowl surface, minimizing hot spots and scorching

For Russian food manufacturers operating in facilities where gas infrastructure may be limited or where indoor air quality is a concern, electric induction provides a practical and compliant solution.

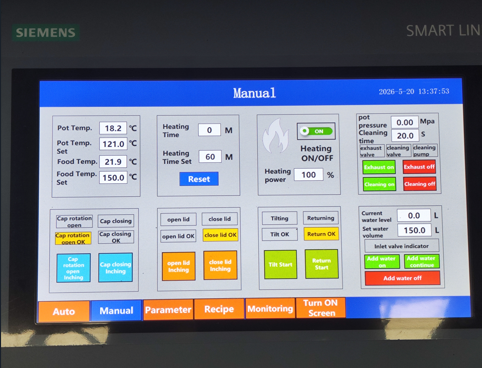

4.2 Siemens PLC Automation with HMI Touchscreen

The control architecture is built around a Siemens PLC with a color HMI touchscreen interface. Operators can:

• Pre-program multi-stage cooking recipes (temperature, pressure, and time for each phase)

• Monitor real-time pressure, temperature, and cycle progress

• Log production data for quality assurance and traceability

• Set user permission levels for recipe management versus day-to-day operation

The PLC also manages safety interlocks: the lid cannot be opened while the vessel is pressurized, and the heating system is disabled if the pressure sensor detects an anomaly.

4.3 Full 304 Stainless Steel Construction — 8 mm + 3 mm Composite Bowl

All product-contact surfaces are fabricated from SUS304 (EN 1.4301) stainless steel, the standard for food-grade equipment. The bowl wall is a composite 8 mm + 3 mm construction, providing:

• Structural integrity under sustained working pressures of 0.3–0.35 MPa

• Excellent corrosion resistance against acidic food products (tomato-based sauces, vinegar marinades)

• Full compliance with HACCP hygiene requirements

• Long service life with minimal maintenance

The 1,100 mm bowl diameter and 550 mm depth provide a favorable surface-area-to-volume ratio for efficient heat transfer.

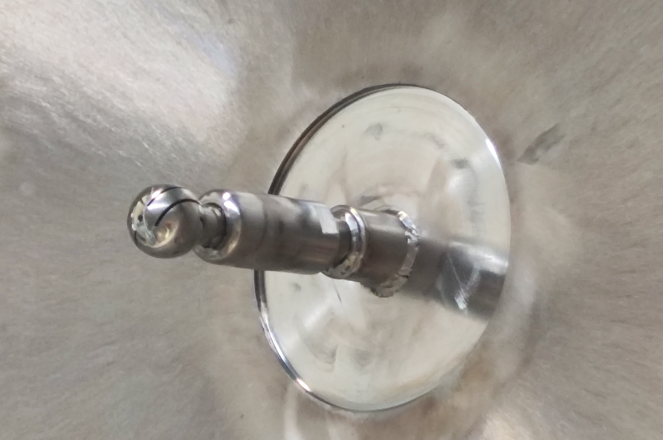

4.4 Automatic Water Spray Cleaning with Flow Meter

Post-production cleaning is a critical but often overlooked aspect of industrial cooking equipment. The TDPCI-500L integrates an automatic water spray cleaning system with an in-line flow meter, enabling:

• Programmable cleaning cycles triggered from the HMI

• Metered water consumption for cost tracking and environmental reporting

• Thorough coverage of the bowl interior without manual intervention

Combined with the all-stainless construction, this system supports CIP (Clean-in-Place) workflows that reduce downtime between production batches.

4.5 Premium Electrical Components: Siemens, Schneider, and Omron

All major electrical and control components are sourced from tier-one global suppliers:

This component selection ensures long-term availability of spare parts, global service network compatibility, and reliable performance — factors that matter significantly for buyers in markets like Russia where equipment uptime directly impacts production economics.

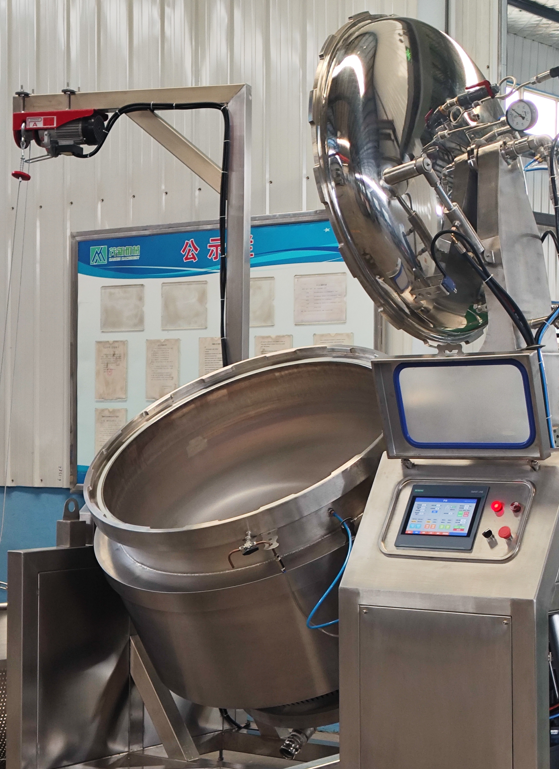

4.6 Fully Automatic Lid Lifting System

The lid is raised and lowered by a 1.5 KW pneumatic actuator, controlled through the PLC. This eliminates manual handling of a heavy pressure-rated lid and integrates seamlessly with automated loading and unloading systems. The extended machine height of 2,950 mm (with lifter) is within standard industrial ceiling clearances, making facility integration straightforward.

4.7 How the TDPCI-500L Compares to Conventional Jacketed Kettles

Industrial buyers often weigh a high-pressure cooking pot against a conventional atmospheric jacketed kettle. The table below clarifies the operational differences:

For Russian food processors targeting high-volume bone broth, meat stewing, or sauce production, the pressure differential alone accounts for a 3×–5× reduction in cooking time — directly translating to higher daily throughput and lower per-unit production cost.

5. Frequently Asked Questions About the 500L Industrial Pressure Cooker

Q: What food products can the TDPCI-500L process?

The unit is designed for bone broth, meat stewing, bean cooking, sauce and paste production, soup bases, porridge, and ready-meal preparation. Its 304 stainless steel construction is compatible with acidic, salty, and oil-based food matrices.

Q: Is the voltage configurable for the Russian power grid?

Yes. The standard specification is 3-phase / 380V / 50Hz, which matches Russian industrial power standards. Other voltages are available on request.

Q: What safety features does the pressure vessel include?

The system includes a PLC-managed safety interlock (lid blocked while pressurized), a pressure relief valve, an over-temperature cutoff, and an emergency stop. The composite 8 mm + 3 mm bowl thickness provides a generous safety margin above the 0.35 MPa maximum working pressure.

Q: Can the machine handle continuous production?

Yes. With a typical cycle time of 60–120 minutes depending on the product, and CIP-style automatic cleaning between batches, the TDPCI-500L supports multi-batch daily operation. The induction heating system and Siemens PLC are rated for continuous industrial duty.

Q: What after-sales support is available in Russia?

Remote video commissioning, on-site technician dispatch, and locally available spare parts (Siemens, Schneider, Omron) are all supported. Russian-language technical documentation is provided.

6. Delivery to Russia: Logistics and Compliance

The recent delivery of a TDPCI-500L unit to a Russian food processing facility highlights several practical considerations for cross-border equipment procurement:

• Voltage Compatibility: The 3-phase / 380V / 50Hz electrical specification matches the Russian industrial power standard, eliminating the need for transformers or frequency converters.

• Customs Documentation: The unit ships with full technical passports, GOST-R conformity documentation where applicable, and detailed installation manuals in both English and Russian.

• Commissioning Support: Remote video commissioning and on-site technician dispatch options are available depending on the buyer's preference.

• Spare Parts: The use of globally available Siemens, Schneider, and Omron components means that electrical spares can be sourced locally in Russia without waiting for international shipments.



7. Why a 500L Capacity Makes Economic Sense

For mid-to-large-scale food processors, 500 liters represents a practical production unit:

• Batch size alignment: A single 500L batch of bone broth concentrate can fill approximately 2,000–2,500 retail packs (200–250 ml each), matching common production scheduling requirements.

• Energy efficiency: Larger vessels have a lower surface-area-to-volume ratio, meaning less heat loss per unit of product compared to multiple smaller cookers.

• Labor optimization: One automated 500L unit operated by a single technician replaces multiple smaller manual kettles requiring 2–3 workers.

• Floor space: The 2,200 × 1,550 mm footprint is compact relative to throughput, fitting into standard food production bay layouts.

8. Conclusion

The TDPCI-500L industrial electric induction pressure cooker addresses the core requirements of modern food processing facilities: high throughput, precise automation, food-grade safety, and low operational overhead. Its recent deployment in Russia demonstrates the growing international demand for Chinese-manufactured industrial cooking equipment that meets global quality standards.

For food processors evaluating a 500L industrial pressure cooking kettle — whether for bone broth, meat products, sauces, or ready meals — the TDPCI-500L offers a fully specified, automation-ready package with proven field performance.

For detailed quotations, lead times, and technical documentation, please contact our engineering team. We support FOB, CIF, and DDP delivery terms to Russia and CIS countries.
