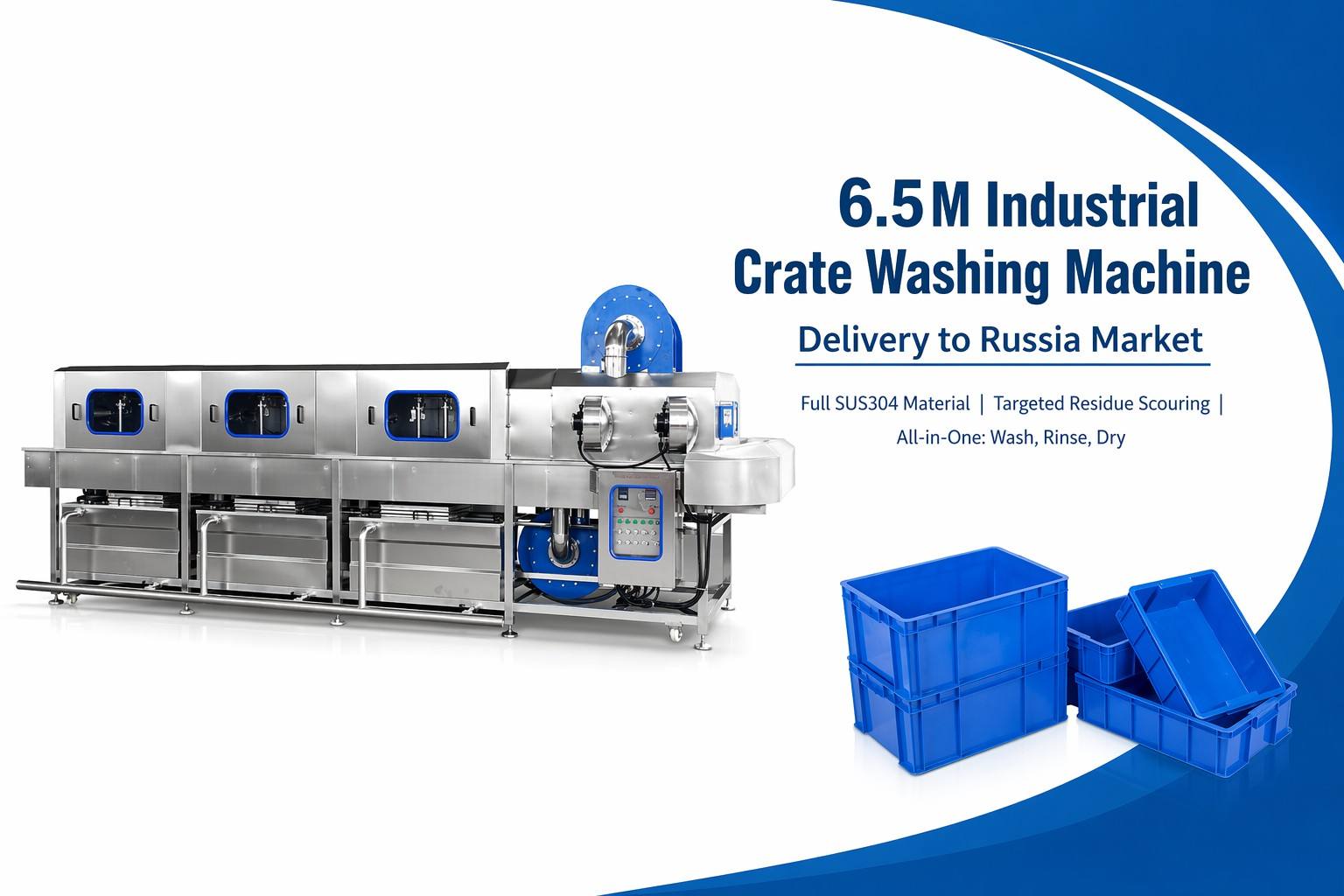

6.5m Industrial Crate Washer Dispatched to Russia: TDXKJ-Scale Tunnel Washing Solution for Crates, Baskets & Containers

Going XXL:6.5-Meter Industrial Crate Washing Machine Successfully Shipped to a Russian Food Processing Giant

When standard washing tunnels fall short of production demands, scaling up is the only answer. We are proud to announce that our largest-ever 6.5-meter industrial crate washer — a heavy-duty tunnel-style crate, basket, and container washing machine — has completed factory acceptance testing and is now en route to a major food processing facility in Russia.

This is the third industrial washing system TINDO has delivered to the Russian market in 2026, reflecting growing demand for high-capacity automated sanitation solutions in the region. Unlike our previously dispatched 4-meter unit, this 6.5-meter XXL configuration is purpose-built for facilities managing ultra-high throughput — processing crates, meat lugs, bakery trays, poultry baskets, and pallet containers at industrial scale.

For food manufacturers operating round-the-clock production lines, a longer tunnel washing machine translates directly to more cleaning zones, extended dwell time under high-pressure spray, and higher daily throughput without compromising hygiene standards.

I. Why 6.5 Meters? The Engineering Logic Behind Tunnel Length

In tunnel-type crate washing machines, conveyor length is not just a dimension — it defines the entire cleaning architecture. A 6.5-meter tunnel provides:

• Extended Pre-Wash Zone: More time for high-flow water to loosen baked-on meat fats, dough residues, and organic soils before entering high-temperature zones.

• Multi-Stage Hot Water Immersion: The additional length allows for dedicated alkaline wash, acid rinse, and sanitizing stages without overlap.

• Higher Belt Speed Capacity: A longer tunnel allows the conveyor to run at higher speeds while maintaining sufficient dwell time per stage, ultimately boosting throughput to 800–1,200 crates or baskets per hour.

• Flexible Crate/Basket Size Handling: With a 6.5-meter processing chamber, the machine accommodates oversized containers — including Euro pallet boxes (1200×800mm), large meat lug crates, and industrial bakery tray stacks — in a single pass.

Industry Insight: For a facility processing over 5,000 crates per shift, a sub-5-meter tunnel creates a throughput bottleneck. The 6.5m configuration eliminates this constraint, future-proofing the sanitation line against production scaling.

II. Key Engineering Highlights of the 6.5m TINDO Crate & Basket Washer

1. Full SUS304 Stainless Steel Construction — 6.5m of Corrosion-Resistant Hygiene

Every millimeter of the 6.5-meter tunnel, from the structural frame and outer housing to the internal spray manifold and chain conveyor, is fabricated from food-grade SUS304 stainless steel. At this extended length, material integrity is critical — lower-grade steel would warp under sustained high-temperature and high-humidity operation. The full stainless steel build ensures:

• Zero corrosion even after years of exposure to alkaline detergents and chlorinated sanitizers

• Full compliance with HACCP, CE, and international food safety audit requirements

• SUS316 upgrade available for facilities using aggressive chemical cleaning agents

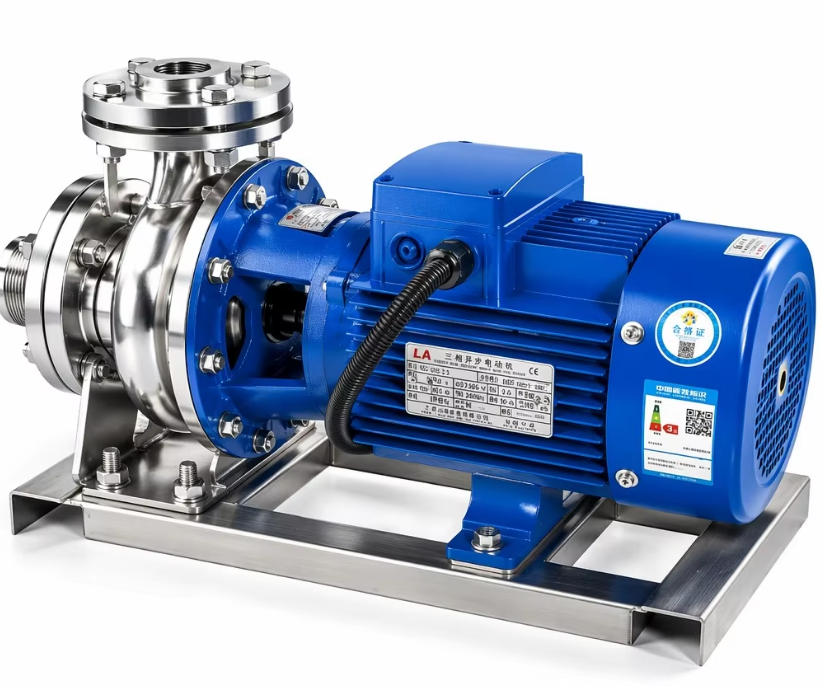

2. High-Pressure 304SS Pump System with Dual-Loop Filtration

Driving the spray system at 6.5 meters requires consistent pressure across the entire tunnel length. Our configuration uses multiple high-capacity 304 stainless steel centrifugal pumps delivering steady 0.3–0.7 MPa pressure to every nozzle zone. The dual-loop filtration system — primary mesh basket filter plus secondary settling tank — intercepts debris, meat particles, and label fragments before they can reach pump internals, extending service life and reducing maintenance downtime.

3. Three Independent Water Tanks with Recirculation

Unlike compact washers with a single shared tank, the 6.5-meter system features three independently controlled water tanks:

Each tank has its own heating element, filtration circuit, and water level sensor. The recirculation system recycles up to 70% of wash water, dramatically reducing utility costs in high-volume operations.

4. Adjustable 304 Stainless Steel Spray Nozzles — 360° Target Coverage

The spray architecture uses a high-density array of fully adjustable 304 stainless steel nozzles — not the plastic clip-on nozzles found on budget machines that warp and crack under sustained heat. Each nozzle can be individually angled to target:

• Crate handle recesses and ribbed bottom grooves

• Basket wire mesh intersections where debris accumulates

• Container corners and stacking ledges

• Pallet box side walls and base channels

This custom-tuned spray geometry ensures no blind spots across the entire 6.5-meter cleaning path.

5. Gull-Wing Access Doors with Hydraulic Assist

Maintenance access becomes critical at this machine scale. The 6.5-meter tunnel features hydraulic-assisted gull-wing side doors spanning the full length. Operators can open any section for internal inspection, nozzle adjustment, or belt cleaning without tools. Industrial-grade EPDM gaskets ensure zero water leakage during operation, keeping the factory floor dry and compliant with workplace safety standards.

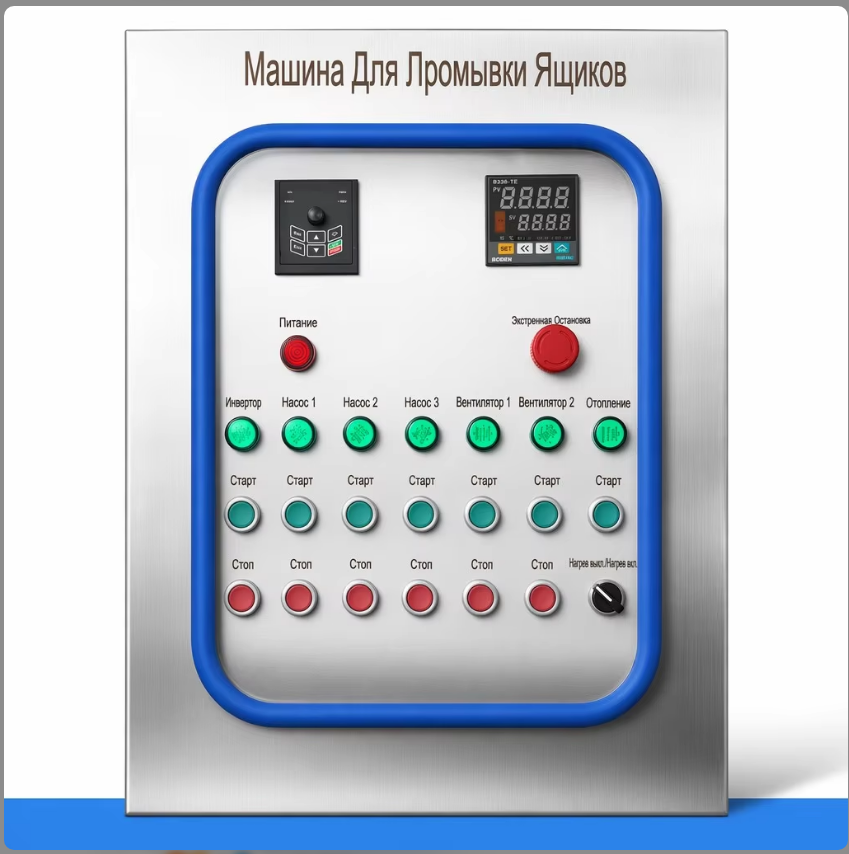

6. Optional Siemens PLC Control with IP65-Rated Touchscreen HMI

This client uses a button control system for their project, which is easy to operate. But Tindo supplies the optional Siemens PLC with a waterproof IP65-rated HMI touchscreen panel. Operators can configure:

• Conveyor belt speed (VFD adjustable)

• Temperature setpoints for each of the three tanks

• Pump pressure per zone

• Cycle duration and automatic start/stop scheduling

• Fault diagnostics and maintenance alerts

The interface supports multi-language localization, including Russian, ensuring smooth operator adoption at the destination facility.

7. World-Class Electrical Components: Schneider, Omron, Siemens

All contactors, relays, circuit breakers, and sensors are sourced from globally recognized brands — Schneider Electric, Omron, and Siemens. This ensures:

• Electrical stability under 24/7 continuous operation

• Easy local sourcing of spare parts in the Russian and CIS markets

• Consistent performance in high-humidity, high-temperature wash-down environments

8. Optional High-Velocity Air-Knife Drying Zone

For facilities requiring immediate crate reuse, the 6.5-meter machine can be configured with an integrated air-knife drying module at the tunnel exit. High-velocity blowers strip over 90% of surface moisture, delivering crates and baskets ready for immediate stacking, storage, or product loading — eliminating the need for a separate drying line.

III. Application Scope: What This Basket & Container Washing Machine Can Clean

The versatility of a 6.5-meter tunnel washer makes it an indispensable asset across multiple industries:

Meat & Poultry Processing:

• Meat lug crates and viscera containers

• Poultry transport baskets and shackle carriers

• E2/E3 standard Euro meat boxes

Commercial Bakeries & Confectionery:

• Industrial bread trays and bun pans

• Pastry molds with baked-on sugar and grease

• Dough troughs and proofing baskets

Seafood & Fresh Produce:

• Fish crates and shellfish harvesting bins

• Vegetable and fruit transport totes

• Ice-filled seafood transport containers

Logistics & Supply Chain:

• Reusable plastic pallets (RPCs)

• Warehouse tote bins and picking trays

• Euro pallet boxes and stacking containers

Dairy & Pharmaceutical:

• Milk crate washers for dairy logistics

• Cleanroom-grade container sanitization

• Vial and bottle transport tray cleaning

IV. The Russian Market Context: Why Crate Washing Automation Is Surging

The Russian food processing equipment market reached USD 2.09 billion in 2025 and is projected to grow steadily through 2030. Several factors drive demand for industrial crate washing machines in the region:

1. Stricter Food Safety Enforcement: Russian regulatory bodies are tightening hygiene audit standards, particularly for meat and dairy processors. Manual crate washing can no longer meet traceability requirements.

2. Labor Shortages in Food Manufacturing: Automated washing systems replace 4–6 manual cleaning workers per shift, directly addressing labor scarcity.

3. Import Substitution Pressure: With domestic equipment production targets increasing (3× growth by 2030 per Ministry of Industry projections), facilities are investing in high-durability equipment that minimizes reliance on frequent spare parts imports.

4. Cold Climate Logistics: In Russia's harsh winter conditions, automated hot-water washing ensures crates and containers are not only clean but also thawed and ready for immediate reuse — a critical operational edge.

TINDO has now delivered three industrial crate washing systems to Russian clients in H1 2026 alone, establishing a strong reputation for engineering reliability and after-sales responsiveness in the CIS region.

V. Technical Parameters: TDXKJ-6.5m Custom Model Overview

VI. Factory Testing & Export-Grade Packaging

Before dispatch, the 6.5-meter crate and basket washing machine underwent a comprehensive 72-hour continuous water-test protocol in our Jinan facility, including:

• Pressure uniformity verification across all nozzle zones

• Water tank temperature stability under maximum load

• Conveyor belt alignment and tension consistency at all speed settings

• IP65 control cabinet integrity against high-pressure water spray

• Three-tank filtration efficiency with simulated organic debris load

The equipment was then disassembled into modular sections, wrapped in vacuum-sealed VCI anti-rust film, and packed in fumigated export-standard wooden crates. Each module is clearly labeled for efficient on-site reassembly at the client's facility in Russia.

VII. Frequently Asked Questions (FAQ)

Q: What is the difference between a crate washer and a basket washing machine?

A: Functionally, both are industrial tunnel washing systems. A crate washer is typically configured for solid-wall plastic or metal containers (meat lugs, Euro crates, pallet boxes), while a basket washing machine is optimized for open-mesh or wire-frame containers (poultry baskets, bakery tray stacks, produce bins). The TINDO 6.5-meter system handles both — adjustable guide rails and nozzle angles accommodate any container type within the conveyor width specification.

Q: Can this machine clean pallets and large containers?

A: Yes. The 6.5-meter tunnel configuration is specifically designed to accept oversized items including Euro pallets (1200×800mm), industrial pallet boxes, and large DOLAV-style bins. The extended tunnel length ensures adequate cleaning dwell time for tall containers with deep internal cavities.

Q: How does the three-tank water system save costs?

A: Each tank operates independently with its own filtration loop. Tank 1 handles heavy debris removal, Tank 2 recirculates detergent-laced hot water, and Tank 3 uses fresh water for final rinsing. This cascading design recovers up to 70% of water for reuse — in a facility washing 5,000+ crates daily, the savings on water and heating energy are substantial.

Q: Is installation support available in Russia?

A: Absolutely. TINDO provides detailed installation manuals in Russian, remote video guidance during assembly and commissioning, and 24/7 engineering support. For large-scale installations, on-site commissioning by TINDO engineers can be arranged.

Q: What maintenance does a 6.5-meter tunnel washer require?

A: Daily: inspect and clean the primary mesh filter basket; wipe down external surfaces. Weekly: check nozzle alignment, pump pressure readings, and conveyor belt tension. Monthly: inspect tank heating elements, verify temperature sensor calibration, and check hydraulic door assist cylinders. All maintenance points are designed for toolless access.

Conclusion: Scaling Sanitation with Confidence

The delivery of this 6.5-meter industrial crate and basket washing machine to Russia marks a significant milestone for TINDO — it is our largest washing tunnel to date and a testament to our ability to engineer at XXL scale without compromising precision. Whether your facility needs a standard 3.5m crate washer or a fully customized 6.5m+ tunnel system, TINDO delivers the same commitment to SUS304 integrity, Siemens-grade controls, and export-ready quality.
