Author: Alex Song Publish Time: 2026-09-10 Origin: Site

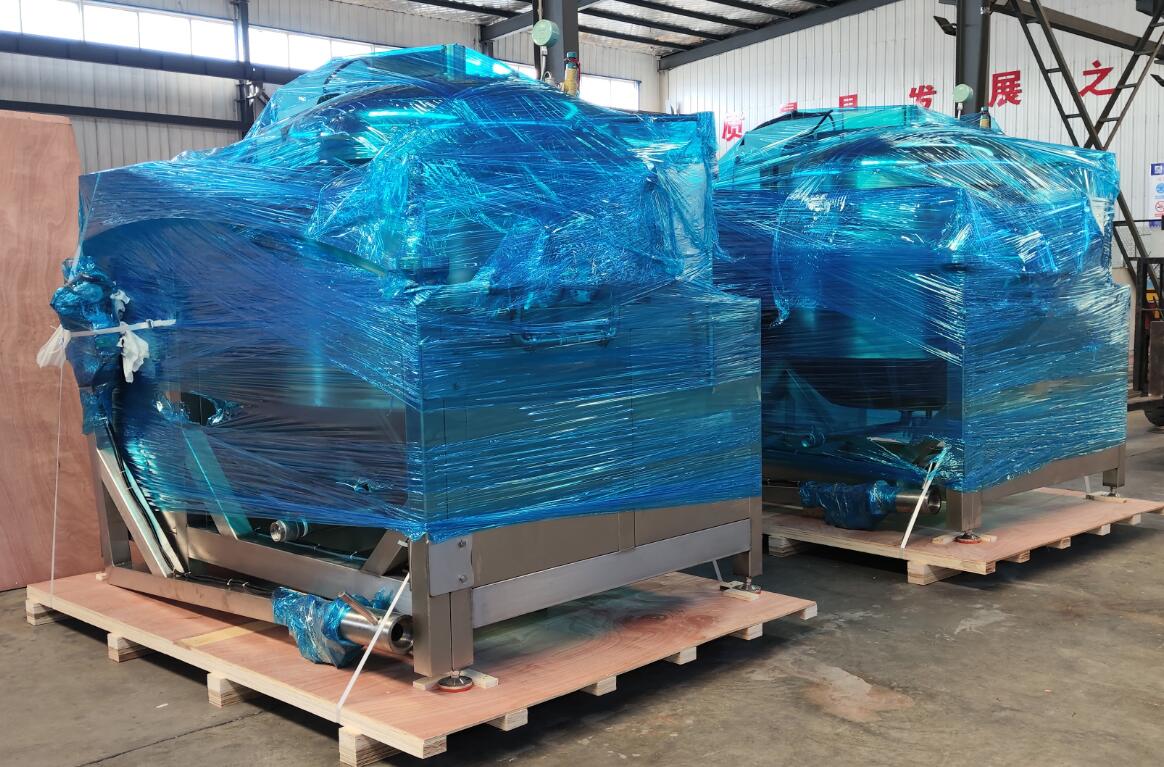

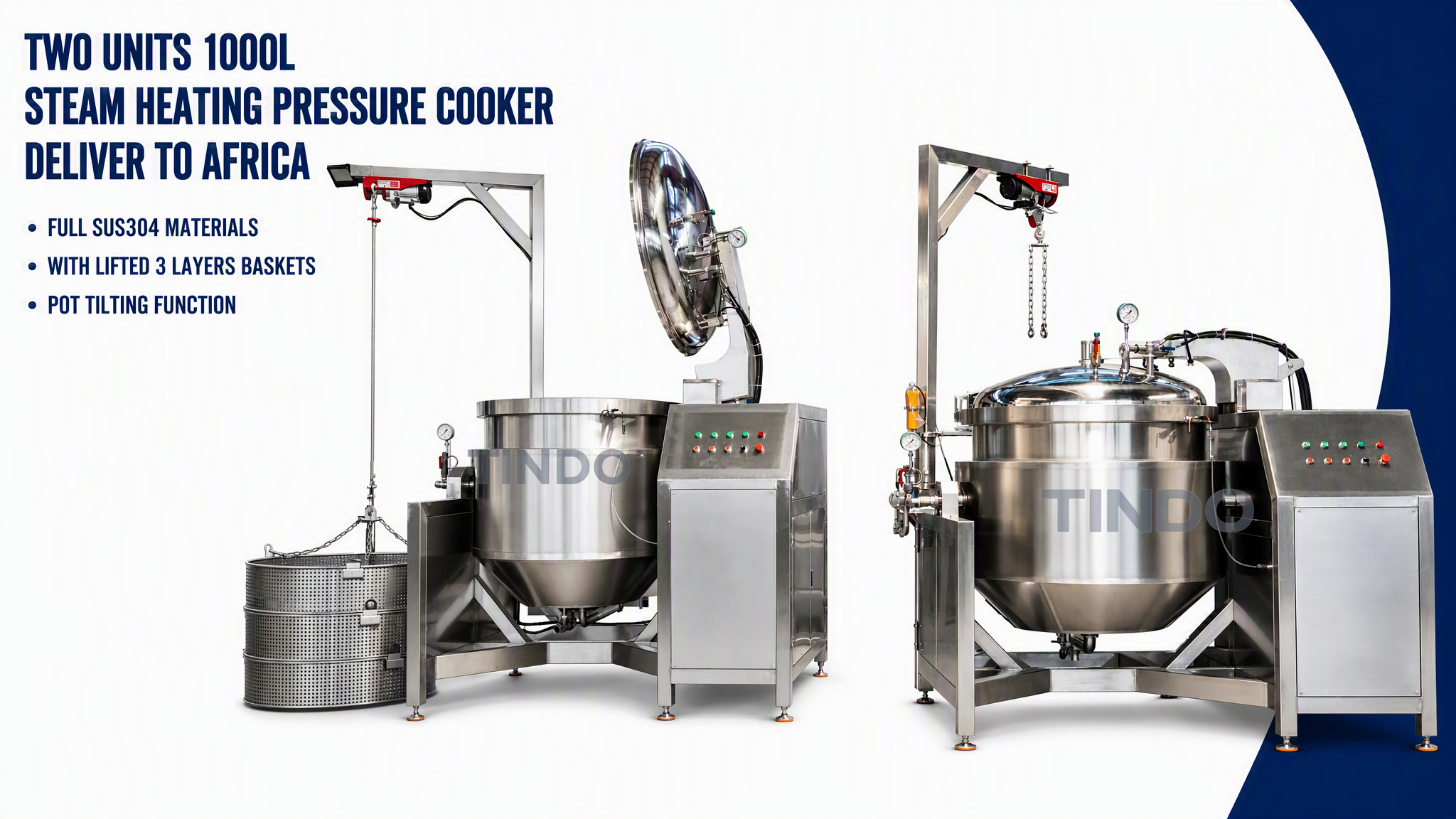

Two 1000L steam heating pressure cookers have been shipped to an African food processing customer — built in full SUS304 stainless steel, configured with lifted 3-layer loading baskets for high-volume batch cooking, and a pot tilting function for fast, residue-free discharge. This delivery extends TINDO's 100L-1000L pressure cooking vessel range into high-capacity, basket-style cooking for meat, poultry, beans and vegetable processing lines.
This order comprises two identical 1000L steam pressure cookers, giving the customer a combined 2,000L of pressure-cooking capacity per full cycle — enough to process meat, poultry or bean batches that would otherwise require multiple smaller atmospheric kettles running in parallel.
Each unit is built around the same core design philosophy: a closed, pressurized cooking vessel that cooks faster than open kettles at the same steam supply, while sealing heat inside the chamber instead of venting it to the factory floor.
For food processors scaling from manual batch cooking to industrial output, vessel size is the single largest lever on throughput:
Configuration | Cooking Capacity per Cycle | Typical 8-Hour Throughput (Meat) |
|---|---|---|
300L atmospheric kettle | 300L | 4-6 batches |
500L pressure cooker | 500L | 8-10 batches |
2 × 1000L pressure cookers (this order) | 2,000L combined | 16-20 batches |
Pressure cooking also shortens cycle time versus atmospheric boiling, so the 2,000L combined capacity multiplies twice: more volume per batch, and more batches per shift.
Both cookers are fabricated from food-grade SUS304 stainless steel throughout the product-contact surfaces — vessel body, lid, baskets and discharge path. SUS304 is the standard specification for meat, poultry and vegetable processing because it resists the corrosive attack of brine, acidic cooking liquids (tomato-based sauces, vinegar brines) and the caustic cleaning agents used in daily washdown cycles. With proper maintenance, an SUS304 pressure vessel provides decades of service in a food plant environment.

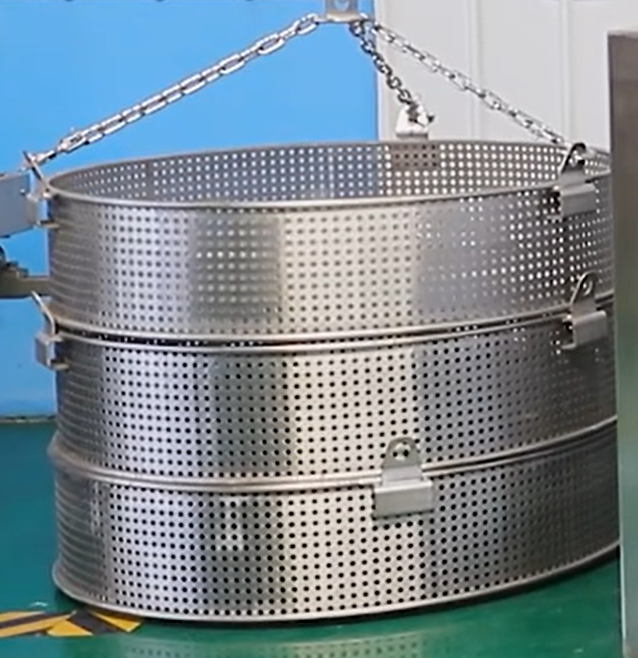

The most distinctive feature of this configuration is the lifted 3-layer basket system. Instead of loading product loose into the vessel and scooping or pumping it out after cooking, the customer loads raw material into three stacked baskets:
Bulk loading — product is placed into the baskets outside the vessel, allowing faster fill rates than reaching into a deep open pot
Uniform immersion — the 3-layer stack keeps product submerged and evenly exposed to steam heat across the full batch
Clean discharge — after cooking, the entire basket stack is lifted clear of the cooking liquid, draining excess broth before product moves to the next process stage
This design is especially valuable for products that must be separated from their cooking liquid after the cycle — such as pre-cooked meat portions, poultry parts, beans and par-cooked vegetables — because it eliminates manual scooping and the product damage that comes with it.

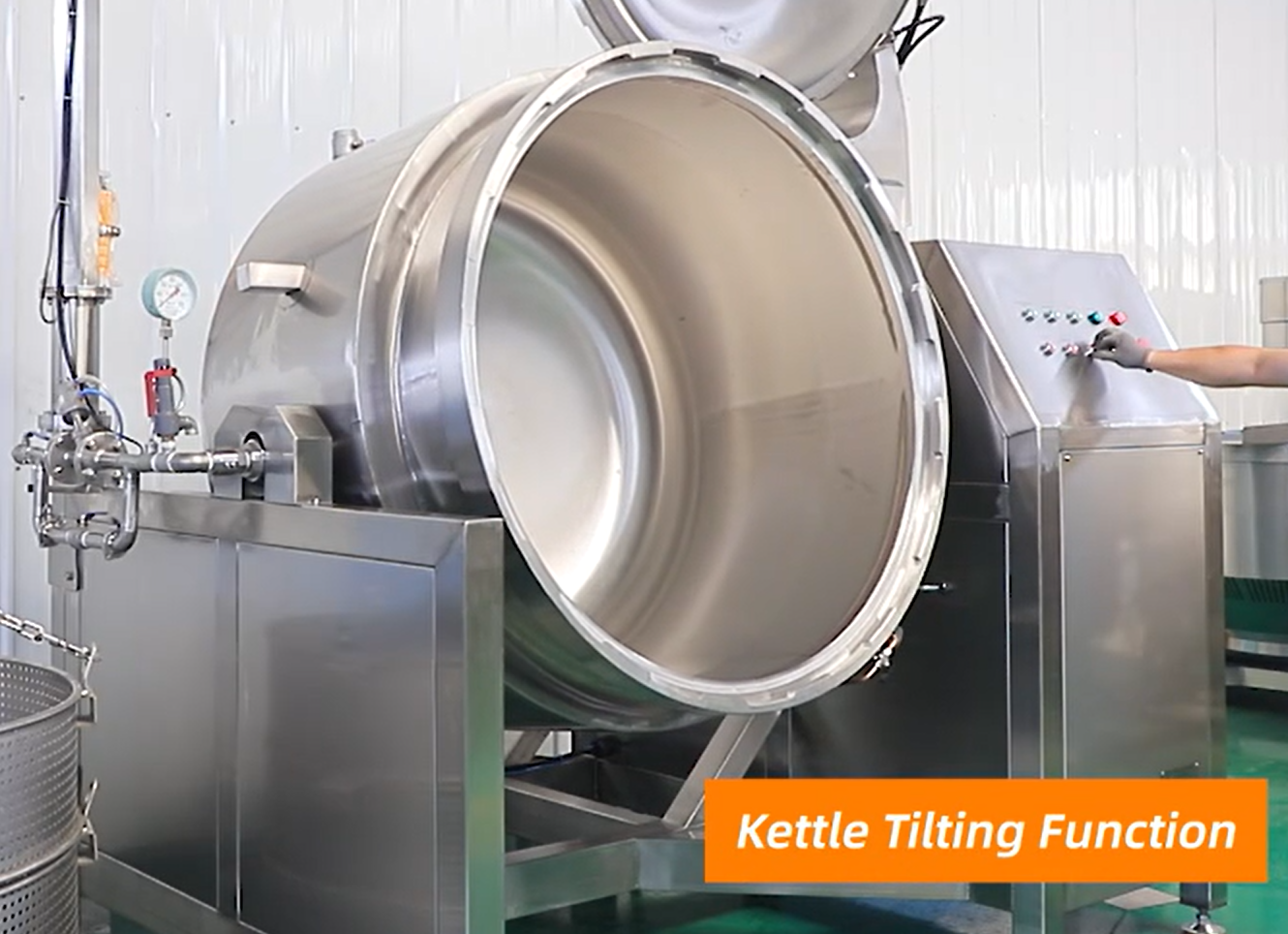

Each 1000L unit is fitted with a pot tilting function that raises the vessel and pours cooked contents out through the front rim. Combined with the basket system, tilting gives operators two discharge options:
Basket discharge for products that must stay whole and drained
Direct tilting discharge for liquid or semi-liquid loads such as broths, stews and sauce-based products
Tilting also simplifies cleaning: the vessel can be rotated to expose the full interior surface for washdown, eliminating hard-to-reach corners where product residue would otherwise build up.
Both cookers are steam-heated, drawing on the customer's plant steam supply rather than requiring electric or gas hookups inside the cooking area. For African food processors, steam heating offers three practical advantages:
Lower operating cost — steam boilers typically run on locally available fuels (diesel, gas or biomass), avoiding reliance on grid electricity for the largest thermal load in the plant
Fast heat-up — a steam jacket transfers heat into the vessel far faster than electric elements of equivalent rating
Fine temperature control — steam pressure regulates cooking temperature precisely, essential for repeatable texture on meat and poultry products
Q: What is the working pressure of these 1000L steam pressure cookers? A: Pressure level is configured to the customer's steam supply and product requirements. TINDO builds pressure cooking vessels across the 100L-1000L range with pressure ratings matched to the application — contact our engineering team with your boiler pressure and product type for an exact specification.
Q: Can the 3-layer baskets be removed for cleaning? A: Yes. The basket stack is lifted out as a complete assembly, and individual layers separate for thorough washdown. The empty vessel can then be tilted for full interior access.
Q: What products is a basket-style pressure cooker best suited for? A: Products that benefit from bulk cooking followed by separation from the cooking liquid — pre-cooked meat and poultry, beans and legumes, par-cooked vegetables, and similar batch items. For stirred products such as sauces and pastes, TINDO's industrial pressure cooking mixer is the better fit.
Q: Can TINDO supply voltage and steam fittings for my country? A: Yes. TINDO customizes electrics, steam connections and safety valves to the destination country's standards on every export order. The African delivery covered in this article was configured specifically to the customer's local plant utilities.
Industrial Pressure Cooker & Steam Jacketed Kettle — Full Range (100L-1000L)
400L Steam Pressure Cooker Delivered to Mexican Meat Processor
500L Industrial Electric Induction Pressure Cooker for Food Processing
Industrial Pressure Cooking Mixer — Steam Kettle with Stirrer
Planning a high-capacity pressure cooking line? Contact TINDO's engineering team for a specification matched to your product, steam supply and daily output target.
