Author: Harvey Publish Time: 2026-08-09 Origin: Site

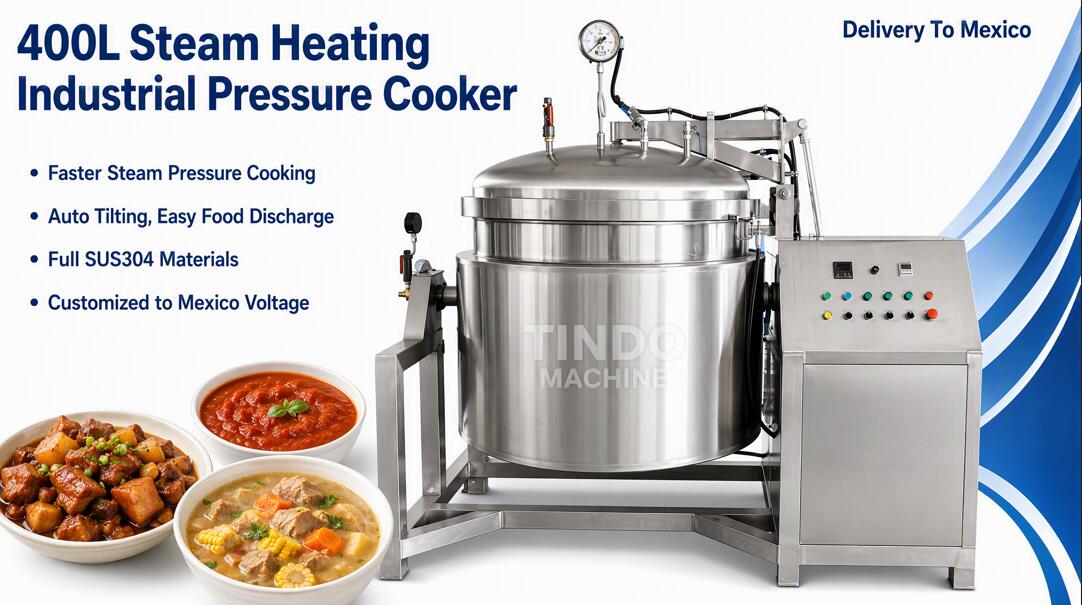

A 400L steam-heated industrial pressure cooker has been shipped to a meat processing facility in Mexico — replacing the client's existing atmospheric open-top kettle with a closed, pressurized system that reduces cooking time by approximately 60% and cuts steam consumption by nearly 40% per batch. The machine is configured for steam heating at the client's existing boiler pressure of 4 kg/cm², with a SS304 5mm inner bowl, hydraulic tilting, and Siemens PLC control.
The client is a mid-scale meat processing company in central Mexico producing cooked beef, pork, and chicken for the domestic retail and food service market. Their product line includes shredded beef (carne deshebrada), cooked pork carnitas base, and braised chicken for ready-to-heat meal packs — all of which require long-duration simmering and pressure cooking to achieve the tender, pull-apart texture Mexican consumers expect.
Their existing cooking setup consisted of two atmospheric open kettles (300L each) that required 90-120 minutes per batch for beef and 60-80 minutes for pork. Three constraints drove the decision to upgrade:
Batch time: Atmospheric cooking at 100°C at 2,240 meters elevation — the client's factory sits in the Mexican highlands, where water boils at approximately 92°C. At this temperature, connective tissue breakdown takes significantly longer than at sea level.
Steam consumption: Open kettles vent steam continuously, wasting approximately 35-40% of the boiler output to the factory floor.
Space constraint: The factory had room for one replacement machine, not two. The new kettle needed to match the combined throughput of both 300L atmospheric kettles.
The TINDO solution: a single 400L pressure cooker that cooks under pressure at 120°C — restoring full sea-level cooking temperatures regardless of elevation — while sealing in steam for energy efficiency.
Standard atmospheric cooking kettles are the default choice for liquid and semi-liquid products — sauces, soups, jams. Meat, however, presents a different challenge: the goal is not just to heat the product, but to break down collagen and connective tissue into gelatin. This process accelerates dramatically with temperature:
Cooking Temperature | Time to Tenderize Beef (10mm cubes) | Steam Consumption |
|---|---|---|
92°C (atmospheric, 2,240m elevation) | 90-120 minutes | Continuous venting, ~35-40% waste |
100°C (atmospheric, sea level) | 60-90 minutes | Continuous venting, ~35% waste |
120°C (pressure, 0.1 MPa) | 25-35 minutes | Sealed chamber, minimal venting |
The pressure cooker delivers three simultaneous benefits to the Mexican client:
1. Elevation compensation. At 2,240 meters, water boils at 92°C. A pressure cooker at 0.1 MPa raises the boiling point to 120°C — higher than sea-level atmospheric cooking. The client no longer needs to add 25-40% extra cooking time for altitude.
2. Collagen-to-gelatin conversion. At 120°C under pressure, beef connective tissue breaks down in 25-35 minutes versus 90-120 minutes at atmospheric pressure. This directly translates to 2.5-3× more batches per shift from the same floor space.
3. Steam containment. The closed pressure vessel recirculates heat rather than venting it. Steam consumption drops by approximately 40%, directly reducing the factory's boiler load — and the natural gas bill that drives it.
Parameter | Specification |
|---|---|
Model | TINDO Industrial Pressure Cooker, 400L |
Bowl Material | SS304, 5mm inner thickness |
Heating Method | Steam, 4 kg/cm² operating pressure |
Cooking Temperature | Up to 120°C under pressure (0.1 MPa) |
Temperature Control | Siemens PLC, ±1°C accuracy |
Lid Type | Pressure-sealed, safety interlock, pressure gauge |
Agitator | Anchor-type with Teflon scrapers, variable speed |
Tilting | Hydraulic, automatic |
Power Supply | 440V/60Hz/3-phase (Mexican standard) |
Safety | Safety relief valve, pressure gauge, mechanical lid lock, emergency vent |
Mexico's industrial energy mix favors steam for thermal food processing:
Factor | Mexico Reality | Steam Advantage |
|---|---|---|
Natural gas | Pipeline gas widely available in industrial zones; LPG in semi-urban areas | Steam boiler can use pipeline gas, LPG, or fuel oil — fuel-flexible |
Electricity cost | Industrial tariff varies by region and time-of-day; peak rates 2-3× off-peak | Steam boiler runs on gas 24/7 at flat fuel cost, unaffected by electricity time-of-day pricing |
Existing infrastructure | Many Mexican meat plants already operate a central steam boiler for sterilization and cleaning | Adding a steam-heated kettle uses existing boiler capacity — no new utility connection required |
Pressure Cooker (This Machine) | Atmospheric Kettle | |
|---|---|---|
Cooking temperature | 110-120°C (adjustable) | 92-100°C (elevation-dependent) |
Beef cooking time (10mm cubes) | 25-35 minutes | 60-120 minutes |
Collagen breakdown | Rapid — pressure accelerates hydrolysis | Slow — longer time required for same tenderness |
Steam consumption | Sealed vessel, ~60% of atmospheric | Open venting, 100% |
Batch throughput (8h shift) | 10-12 batches (beef, 35 min) | 4-6 batches (beef, 90-120 min) |
Floor space per kg output | ~50% less — one machine replaces two | Higher — multiple kettles needed for same output |
Best for | Meat, bone-in products, tough cuts | Sauces, soups, liquid products |
For liquid and sauce cooking, see our Cooking Kettle Mixer range.
Stage | TINDO Equipment | What It Does |
|---|---|---|
Before | Grinds raw meat to target particle size before cooking | |
COOKING | 400L Steam Pressure Cooker (this page) | Pressure-cooks meat to tender, pull-apart texture |
After | Blends cooked meat with sauce and seasonings | |
After | Seals cooked meat for retail or food service |
Looking for a steam-heated pressure cooker configured for your product and daily output? Contact our engineering team for a specification and factory-direct quotation.
