Author: Alex Song Publish Time: 2026-09-28 Origin: Site

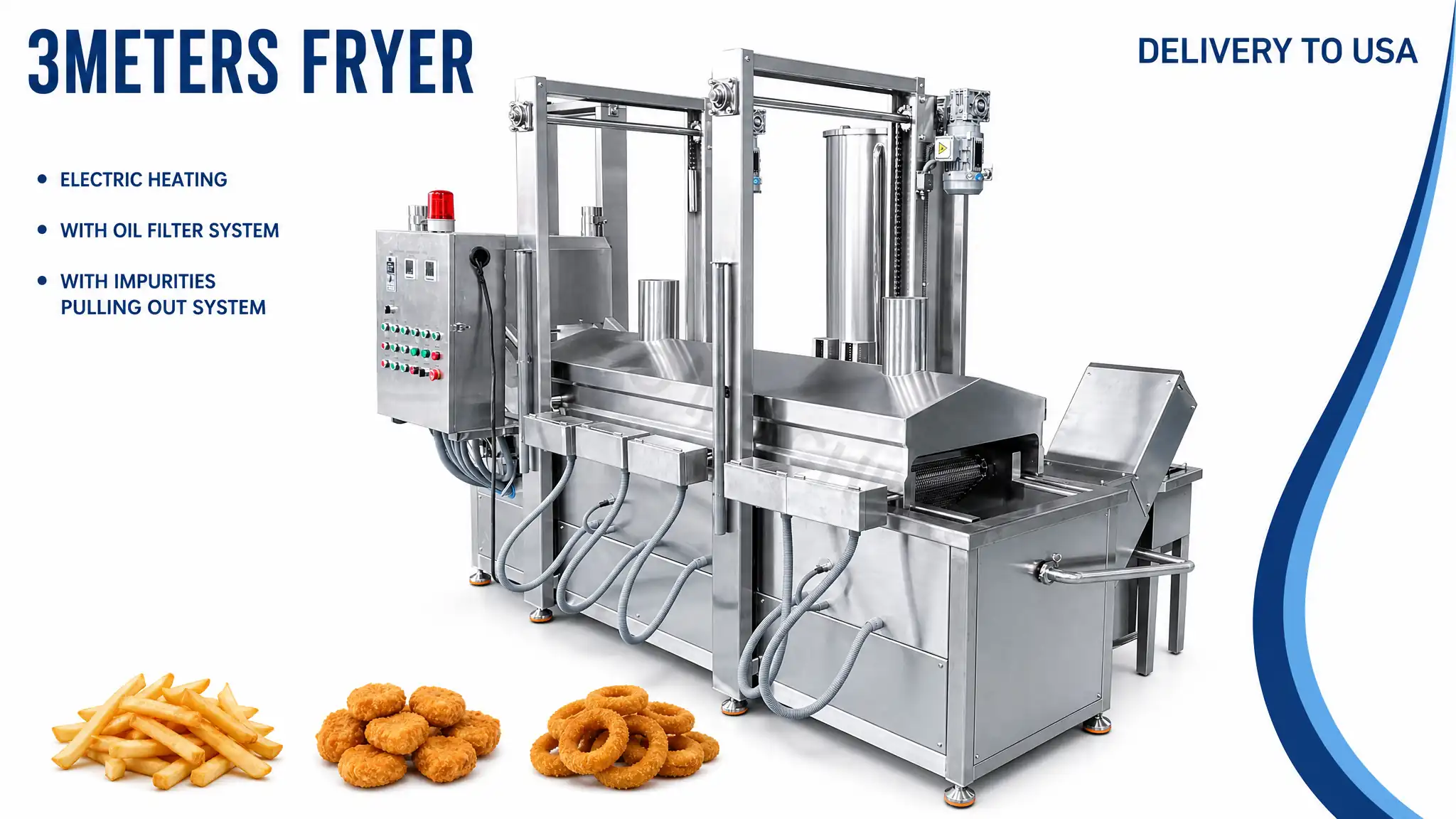

A 3-metre electric continuous fryer with an in-line oil filter system and automatic impurity removal has been manufactured and shipped to a food processor in the United States. It is a single-machine order rather than part of a coated-product line: one fryer, sized so the immersion section holds a 3,000 mm frying length, heated electrically, and plumbed with its own oil filtration and dregs removal loop.
That combination — electric heating, filtration and impurity removal in one unit — is what a plant buys when the constraint is not throughput but oil. A fryer that holds temperature is easy to find. A fryer whose oil stays usable across a long production day is the harder problem, and it is solved in the oil circuit rather than in the heating elements.
Item | Specification | What it decides |
|---|---|---|
Frying length | 3,000 mm immersion / conveyor section | Dwell time for a given belt speed |
Heating | Electric heating elements | No gas line, no flue, no combustion air |
Oil management | In-line oil filter system | Filtration during production, not after it |
Impurity removal | Built-in automatic dregs removal | Fewer burnt particles carried into the oil |
Temperature control | PID, ±1 °C, adjustable up to 300 °C | Colour and moisture consistency |
Frying time | Adjustable, set through belt speed | Product recipe control per SKU |
Conveyor | Chain conveying with mechanical lifting | Product support and cleaning access |
Construction | SUS304 food-grade stainless steel | Hygiene and washdown |
Voltage | Configured to the customer's supply | Site compatibility on arrival |
The figures that depend on the individual order — rated output in kg/h, connected heating power, oil volume and belt width — are set with the customer at enquiry stage, because they follow from the product being fried rather than from a catalogue line.
The filter loop is plumbed into the fryer's oil circuit and runs while frying continues. Oil is drawn from the bath, passed through the filter, and returned — so the fryer is never sitting idle waiting for an oil change, and the oil is not left to accumulate debris between shifts.
Two things follow from that arrangement:
Impurity removal is continuous, not periodic. Large particles — batter fragments, crumb, coating that has come off a product — are taken out of circulation as they appear rather than settling at the bottom of the tank and carbonising there.
Temperature stays uniform along the fryer length. Because oil is moving through the circuit rather than sitting still, the heat profile is even from the infeed end to the discharge end. On a 3-metre immersion section, an uneven profile shows up as product that is pale at one end of the run and dark at the other.
Particles that stay in the oil are what drive oil degradation: they scorch, they darken the bath, and they transfer that colour to the next product through it. Removing them during production is the mechanism behind TINDO's stated figure of up to 3× longer oil service life on self-cleaning filtration systems.
The filtration and removal hardware integrates with the fryer's insulated oil tank and circulation pump, so oil can also be returned to the tank when the fryer is cleaned.
Electric heating removes three constraints at once:
No combustion path. There is no burner, no gas train and no flue to interlock. For plants where a gas line cannot be extended to the frying area — or where a new gas installation would need its own approval cycle — electric is the shorter route to a working fryer.
Tight control near the setpoint. Electric elements respond to the controller without the thermal lag of a burner, which is what makes a ±1 °C control band practical at the setpoint the product needs.
Simpler hygiene and housekeeping. No combustion air intake and no exhaust products in the frying hall, so the extraction duty is limited to frying fume.
The trade-off is honest: electric heating concentrates the load on the electrical supply rather than spreading it across gas and power. That is why the electrical specification is settled first on an electric fryer project, not last.
TINDO fryers are built at 3-phase 380 V / 50 Hz as standard, or configured to the customer's supply on request. A US plant is a 60 Hz site, usually at 208 V, 240 V or 480 V three-phase depending on the service and the size of the load. Because the machine is built to order, the correct entry is the voltage, phase and frequency your plant actually receives — confirmed by your electrician against the panel, not against a nameplate assumption. Getting this wrong is the single most common reason a finished fryer waits in a corner after delivery.
Ask for the certification set that your authority having jurisdiction, your insurer and your customer audits expect to see, and confirm it in writing against your unit rather than against a product family. Confirm also whether an on-site pre-shipment inspection is required, and in what form.
These three figures follow from the product:
If your product is | What to state at enquiry |
|---|---|
Coated poultry, nuggets, tenders | Coating type, piece weight, target dwell time |
French fries, chips, extruded snacks | Infeed rate, slice thickness, moisture at infeed |
Plant-based patties and strips | Coating adhesion behaviour, piece rigidity |
Tortilla chips, spring rolls, dough products | Piece size, buoyancy in oil (anti-floating belt question) |
Give those inputs with your target output per shift, and the immersion length, belt width and oil volume are set against them — not the other way round.
The fryer's conveyor lifts mechanically so the tank bottom can be reached for cleaning after daily production. The oil loop allows oil to be moved back to the tank for that operation, and filtration during production keeps the interval between deep cleans longer. Cleaning access is what decides in practice whether filtration is actually used, or quietly deferred.
This is a single continuous fryer rather than a portion of a larger line, but the same frying platform is supplied in both roles:
A single electric fryer like this one, sized to the immersion length your product needs.
The continuous deep frying machine for higher-capacity lines where the fryer is one module in a longer sequence.
The LZ series continuous fryer range with options including a vacuum oil filter machine, oil storage tank and fire suppression system.
A compact unit for smaller plants and start-ups, where the same filtration principle applies on a shorter tank.
The full frying machine category, covering vacuum frying for colour-critical fruit and vegetable chips alongside oil frying.
If the fryer is going into a coated-product line rather than standing alone, the same frying stage was documented end to end in our fried chicken strips production line built for a UK processor — strip cutting, flouring, battering and electric frying in one continuous flow, with the oil circuit specified as part of the line rather than added afterwards.
Q: What does the oil filter system do that a skimmer does not? A: A skimmer takes floating debris off the surface by hand, which is a manual, intermittent task and depends on an operator being available. The in-line filter system circulates oil out of the bath and back through the filter while frying continues, so impurities are removed continuously and the oil temperature stays even along the fryer length.
Q: What is the advantage of automatic impurity removal? A: Particles that stay in the oil carbonise, darken the bath and transfer colour to the next product through it. Removing dregs during production is what keeps colour and dwell consistent across a long run — and is the reason a filtration-equipped fryer holds its setpoint for weeks rather than drifting as the oil degrades.
Q: Can the fryer be built for a US electrical supply? A: Yes. TINDO fryers are built at 3-phase 380 V / 50 Hz as standard and configured to the customer's supply on request, which is how a US plant at 208 V, 240 V or 480 V three-phase 60 Hz is specified. Confirm the supply at enquiry stage so the electrical build is set before manufacture.
Q: How is the frying time controlled? A: Through conveyor speed. The immersion length is fixed at build — 3,000 mm on this fryer — so the dwell time in the oil is set by how fast product travels through it, and the temperature is held by the PID controller at the setpoint your product needs, up to 300 °C.
Q: Is the fryer suitable for coated products that can stick or float? A: Yes. A chain conveyor carries coated product through the oil without it welding to the belt, and an anti-floating belt arrangement is available where product tends to rise — the same principle used on the LZ series. Tell us the piece size and coating and we will confirm the conveyor configuration.
Q: How is the unit cleaned between production days? A: The conveyor lifts mechanically to give access to the tank bottom, and the oil circuit allows oil to be returned to the tank for cleaning. The oil-contact and product-contact surfaces are stainless steel, and the filtration loop keeps the interval between deep cleans longer.
Three inputs decide this class of electric fryer, and they are worth fixing before any model is quoted: the electrical supply at the installation point, the product and coating route that sets immersion length and belt width, and the output per shift that sets oil volume and the working capacity of the oil filtration and impurity removal loop.
Bring those three, and the fryer configuration follows. Every TINDO fryer is built to order rather than pulled from stock, so the specification — immersion length, oil filtration capacity and electrical build — is set against your product and your site rather than against a stock list. To size an electric fryer with in-line oil filtration for your plant, talk to our engineers here.
