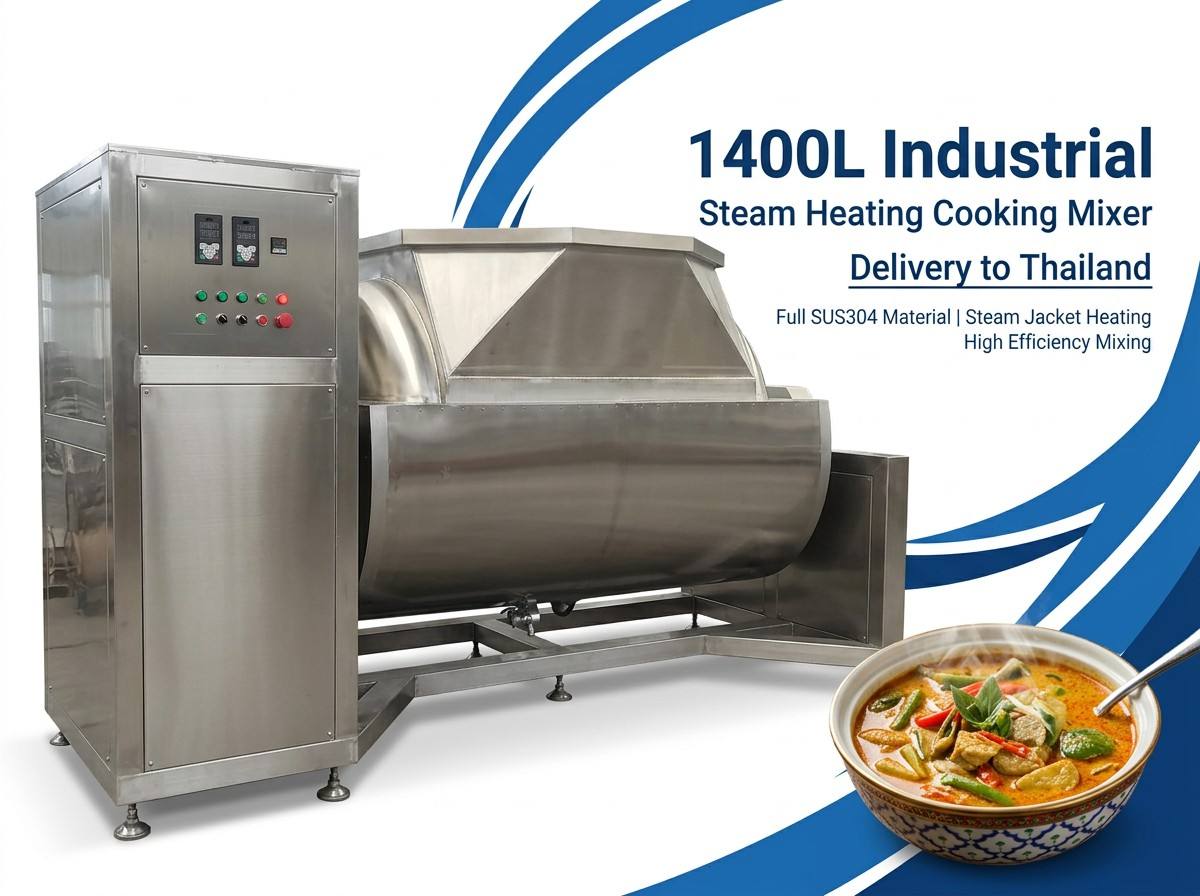

1400L Horizontal Steam Cooking Mixer Delivered to a Leading Thai Food & Beverage Manufacturer

After a rigorous 6-month supplier evaluation process involving 8 global manufacturers, one of Thailand's most established food and beverage processing companies has selected Jinan TINDO International Co., Ltd. as its equipment partner. The custom-engineered TDCMHS-1400L Horizontal Steam Cooking Mixer — built with a 10mm SS316 inner bowl and hydraulic tilting — has been successfully shipped and is now en route to the client's flagship production facility.

This project marks a significant milestone for TINDO in the Southeast Asian market, validating our commitment to heavy-duty industrial cooking solutions for large-scale food processing.

The Client: A Household Name in Thai Food & Beverage

The client is one of Thailand's most recognized food and beverage manufacturers, with production facilities serving domestic retail, food service, and export markets across ASEAN. While the client's name remains confidential per commercial agreement, their product portfolio spans sauces, condiments, ready-to-eat meals, and beverage bases — categories where cooking consistency, hygiene, and throughput are non-negotiable.

Their existing production lines relied on smaller-capacity cooking kettles (300-500L range) that required multiple batch cycles per shift. Facing growing demand and rising labor costs, the client sought a single high-capacity steam cooking mixer capable of replacing two to three smaller units while maintaining the same product quality.

The Selection Process: Why TINDO Won Against 7 Competitors

The client's engineering and procurement teams ran a structured 6-month evaluation:

The deciding factors:

1. SS316 Material Integrity — The client demanded pharmaceutical-grade SS316 (not SS304) for the inner bowl and agitator shaft, with 10mm inner wall thickness for durability under continuous steam pressure. Only TINDO and one European supplier confirmed 10mm; the European quote was 3.2× the TINDO price.

2. Food-Grade Teflon Agitator — The agitator scrapers use top-quality food-grade Teflon, critical for the client's starch-based and sugar-rich products that tend to caramelize on metal surfaces. Most competing suppliers offered standard PTFE, which the client's QA team rejected.

3. Hydraulic Tilting for 800kg Load — At 1,400 liters capacity, a fully loaded bowl weighs approximately 800 kg. TINDO's hydraulic tilting system was tested to 150% rated load during pre-shipment inspection, with smooth 0-90° tilt control.

4. Steam Jacket Pressure Rating — The client's facility operates a central steam boiler at 4 kg/cm². TINDO's steam jacket was hydro-tested at 6 kg/cm² (150% design pressure), providing a comfortable safety margin.

5. Reference Client in Europe — A previous TINDO customer (a sauce manufacturer in Western Europe using a 1000L horizontal cooking mixer for 3+ years) provided a direct reference call confirming zero unplanned downtime and responsive after-sales support.

Technical Specifications: TDCMHS-1400L

Why a Horizontal Design for Large-Capacity Steam Cooking?

Most industrial cooking kettles use a vertical planetary mixing configuration. For capacities above 500 liters, however, a horizontal shaft design offers critical advantages:

For smaller batch requirements, see our Cooking Kettle Mixer range (100-500L planetary design).

SS316 vs SS304: When 10mm Thickness Matters

The client's insistence on SS316 with 10mm inner bowl thickness was driven by two factors:

1. Product Chemistry

The client processes high-acid tomato-based sauces and salt-rich condiments. SS304 (standard 18/8 stainless) begins showing pitting corrosion after 18-24 months of continuous exposure to chlorides at cooking temperatures. SS316 (18/10/2 with molybdenum) resists chloride pitting for 5-8 years under identical conditions.

2. Steam Pressure Cycling

A 4 kg/cm² steam jacket cycles from ambient to ~144°C multiple times per day. Thermal expansion and contraction at weld seams is the primary failure mode for thin-wall cooking kettles. The 10mm inner wall provides a 30-50% longer fatigue life compared to standard 6mm walls used by most manufacturers.

The combination of SS316 material + 10mm wall thickness effectively makes this a 15-20 year asset under continuous 3-shift operation.

Pre-Shipment Factory Acceptance Testing (FAT)

Before crating, the TDCMHS-1400L underwent a comprehensive FAT at TINDO's Jinan factory:

The client's engineering team reviewed all FAT reports and approved shipment within 48 hours.

What This Means for Thai Food Manufacturers

Thailand's food processing industry is the 13th largest globally and a top-5 exporter of processed food in Asia. For Thai manufacturers considering equipment upgrades:

• Steam-heated cooking mixers offer the lowest operating cost when a factory already has a central steam boiler — far cheaper per batch than electric or gas heating

• SS316 construction is increasingly being specified by export-oriented factories to meet EU and US FDA import standards

• Hydraulic tilting reduces operator injury risk and speeds up batch turnover compared to manual-handling systems

• Chinese-manufactured equipment with European components (SEW drives, Siemens PLC, AIRTAC pneumatics) delivers 60-70% cost savings vs. European equivalents with comparable performance

For Thai food manufacturers seeking large-capacity cooking solutions, TINDO offers factory-direct pricing with on-site installation support across Southeast Asia.

Related Equipment & Resources

• Cooking Kettle Mixer — Full Range

• Industrial Pressure Cooker — High-Pressure Steam Cooking

• Horizontal Axis Cooking Mixer

• Complete Guide to Industrial Cooking Kettle Mixers (Russian)

Looking for a Large-Capacity Steam Cooking Mixer?

With 20+ years of experience designing industrial cooking systems for food manufacturers in 50+ countries, TINDO provides custom-engineered solutions from 100L pilot-scale to 2000L full-production units.
