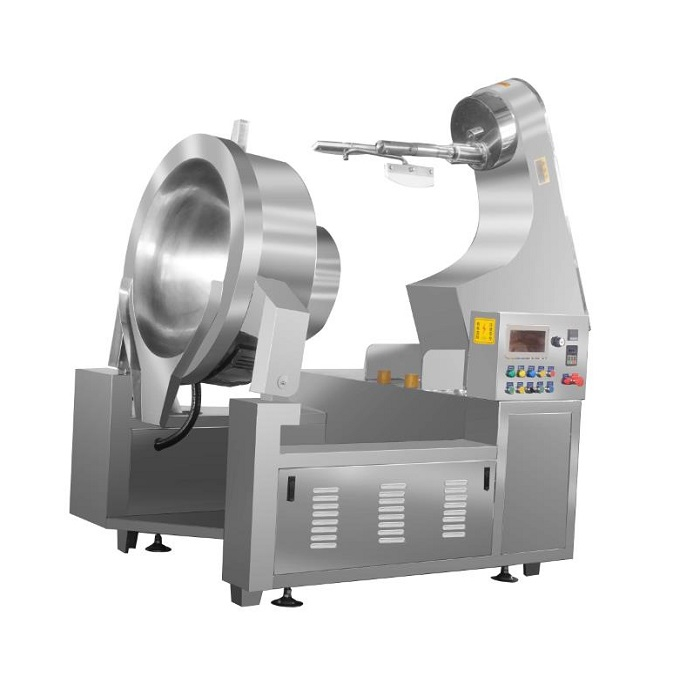

Electric Thermal Oil Heating Cooking Mixer

Electric Thermal oil heating cooking mixer use 3phase electric power as heating power,thermal oil in jacketed.

The conducting oil is heated by electric heating tube to generate heat.
Food-grade high quality materials.
Planetary mixing without burning.
Stepless frequency converter.
Automatic hydraulic tilting.
Product Description

An Electric Thermal oil heating cooking mixer is also known as electric heating interlayer pot, jacketed cooking wok. It uses conduction oil or thermal oil as heating medium, heated by electric heating tube. The electric cooking pot has good heat insulation performance. As long as the temperature reaches the expected value, it is reduced slowly. Therefore, it’s more effective to boil sugar, syrup, fry hotpot condiment, pop popcorn using this kind of pot.

Product Advantages

High thermal efficiency,the heating power can be customized to suitable for different purposal.

Planetary stirring: The agitators cover every corner of the pot. The materials can be cooking and mixed evenly in a short time to improve product quality.

Double-cylinder hydraulic tilting: It makes the discharging more convenient and fast.

Automatic temperature controller: The temperature sensor directly measures the material temperature accurately during cooking.

Fully stainless steel: The bowl and the parts connecting with food directly are made of SS304. SS316 is also available.

Product Parameters
ModelBowl DiameterBowl DepthBowl ThicknessStirring PowerHeating Tube PowerThermal OilDimension
100L800mm400mmInner 4mm; Outer 3mm1.5KW18KW40kg1650*1300*1550mm
200L900mm450mmInner 4mm; Outer 3mm1.5KW18KW50kg1800*1650*1600mm
300L1000mm500mmInner 4mm; Outer 3mm1.5KW27KW60kg1850*1800*1650mm
400L1100mm550mmInner 5mm; Outer 4mm2.2KW27KW70kg1950*1900*1700mm
500L1200mm600mmInner 5mm; Outer 4mm4KW36KW80kg2200*1850*1750mm

Product Applications

Electric Thermal oil heating cooking mixer can be used for mixing and cooking industry, filling cooking industry (jam, lotus paste, preserved fruit, jujube paste), meat processing industry(pot-stewed fowl, ported meat paste, hoisin sauce), seasoning industry(hotpot condiment, instant noodles paste, chili sauce),hotel , restaurant and fast food site.
