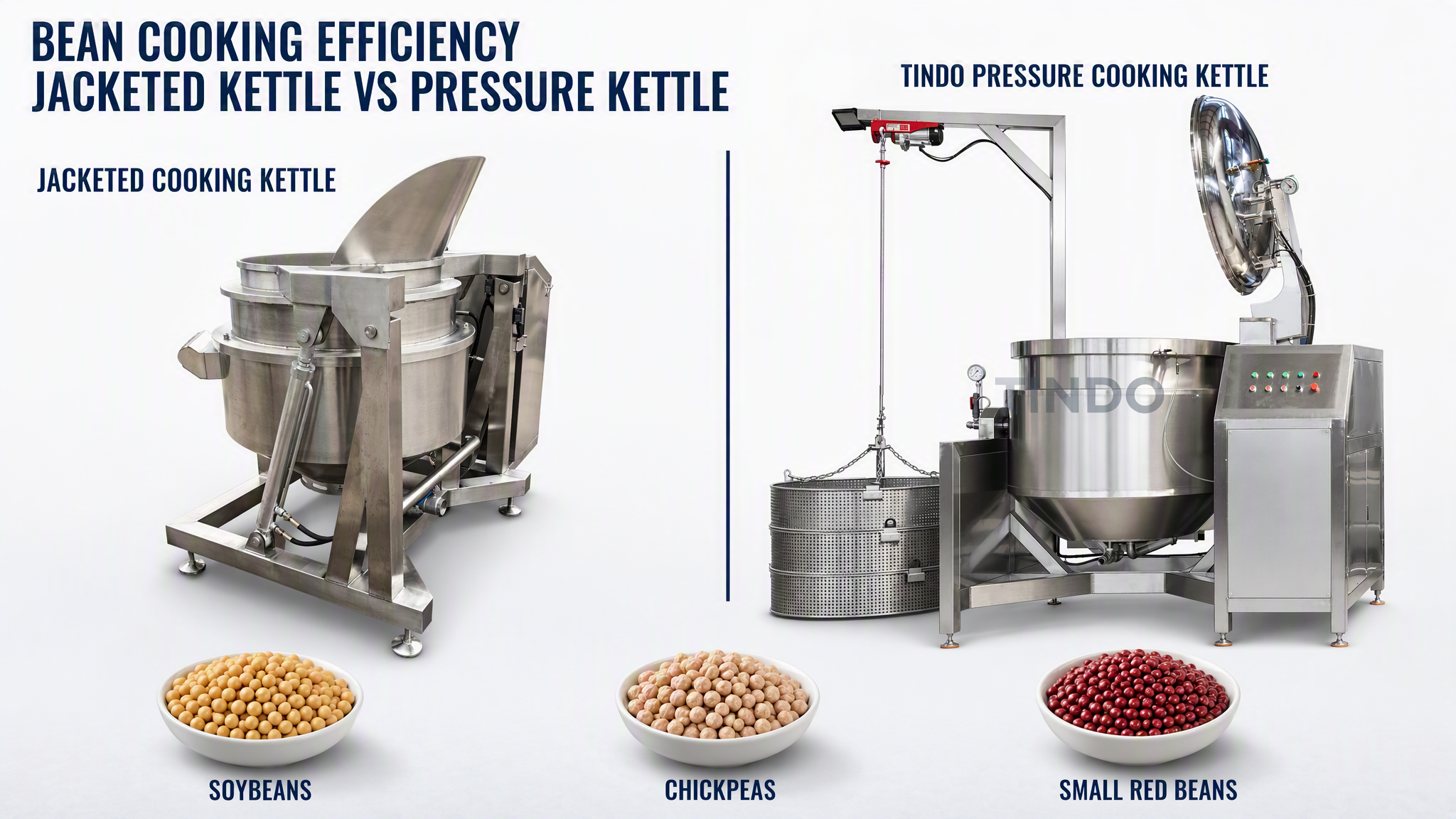

Jacketed Kettle vs Pressure Cooking Kettle for Beans: Cooking Time, Energy & Labor Compared

Cooking soybeans, chickpeas or lentils in volume is one of the slowest, most energy-hungry steps in a food plant — unless the vessel is pressurized. This article compares a conventional jacketed cooking kettle (atmospheric boiling at 100°C) against a TINDO pressure cooking kettle working below 2.5 kg/cm², across cooking time, energy consumption, ease of operation and labor cost, with typical figures for soybeans and chickpeas.

The Challenge: Cooking Beans at Industrial Scale

Beans are structurally different from most other food products cooked in a kettle. Their seed coat is tough, and the starches and proteins inside hydrate slowly. At atmospheric boiling temperature (100°C), that means long cook times — and long cook times mean three compounding costs:

1. Steam or fuel burned for every extra hour the kettle is on

2. Labor tied up watching, stirring and checking a pot that cannot simply be left alone

3. Throughput lost — a kettle occupied for 90 minutes cooks far fewer batches per shift than one that finishes in 25

Pressure cooking changes the physics: raise the boiling point above 100°C and the same beans soften in a fraction of the time. The TINDO pressure cooking kettle operates below 2.5 kg/cm² working pressure, which is enough to lift cooking temperature well above atmospheric boiling — roughly 120-138°C depending on set pressure — without requiring the heavy pressure-vessel certification of higher-pressure autoclaves.

Method 1: Conventional Jacketed Cooking Kettle (Atmospheric)

The jacketed cooking kettle is the workhorse of many bean and pulse operations: a stainless bowl heated by steam or thermal oil through an outer jacket. Water in the kettle boils at 100°C (slightly less at altitude), and the beans cook by prolonged simmering.

What it does well: simple construction, low purchase cost, familiar to every operator, easy to clean, no pressure training required.

Where it struggles with beans:

Method 2: TINDO Pressure Cooking Kettle (Below 2.5 kg/cm²)

The pressure cooking kettle is the same jacketed vessel concept with one decisive change: a sealed, lockable lid that holds steam pressure inside. Operating below 2.5 kg/cm² working pressure, the TINDO unit raises the boiling point inside the bowl to roughly 120-138°C, dramatically accelerating starch gelatinization and protein softening in beans.

What it changes:

• Faster cooking — beans cook in minutes instead of hours

• Energy contained — steam cannot escape, so less heat input is wasted

• Uniform results — pressurized steam surrounds every bean evenly, reducing the "burnt at the bottom, hard in the middle" problem of long atmospheric simmering

• Repeatable cycles — digital pressure/temperature control delivers the same result batch after batch

Head-to-Head Comparison Table

Typical cooking times above are indicative ranges for pre-soaked beans at scale; actual times depend on variety, soaking method, load volume and set pressure. TINDO runs test batches with your product before delivery to fix exact cycle parameters.

Cooking Time & Throughput in Detail

Time is where the pressure kettle wins most visibly. For pre-soaked chickpeas, atmospheric simmering typically needs 60-120 minutes (since water boiling) to reach a fully tender center; under pressure at ~120-138°C, the same tenderness typically arrives in 12-25 minutes. Soybeans behave similarly — the hard-to-soften seed coat is exactly what pressure heat attacks fastest.

The throughput consequence compounds over a shift:

• Jacketed kettle: a 500L unit cycling at ~90 min + loading/unloading ≈ 4-5 batches in an 8-hour day

• Pressure cooking kettle: the same 500L unit cycling at ~25 min ≈ 14-18 batches — roughly 3× more cooked product per day from the same floor space

For a plant cooking 2-3 tonnes of beans per day, that can mean the difference between one line and three.

Energy Consumption: Where the Steam Goes

Both machines are heated by the same steam or thermal-oil jacket. The difference is where the heat ends up:

• Jacketed kettle: much of the energy input leaves as vented steam and surface evaporation. Keeping 500L of water simmering at 100°C for 90 minutes consumes steam continuously, even when the beans are already near done.

• Pressure cooking kettle: the sealed vessel traps steam at pressure. Once at temperature, the heat input needed to hold pressure is far smaller than the input needed to keep an open pot boiling. Shorter cycles also mean the jacket is simply on for less time per batch.

The practical result: for equal cooked output, the pressure route typically reports meaningfully lower steam consumption per tonne of beans — with the exact saving depending on cycle time, insulation and boiler efficiency.

Ease of Operation: Automatic Control vs Constant Watching

Bean cooking at atmospheric pressure is deceptively demanding. Beans foam, they boil over, they scorch where they contact the hot jacket, and doneness varies with water level. A jacketed kettle without a stirring system needs an operator checking it repeatedly.

The TINDO pressure cooking kettle removes most of that judgment:

• Set the target pressure and time on the digital controller

• The sealed lid prevents boil-over by design

• Even heat distribution removes the scorching risk of long bottom contact

• Cycle ends automatically; discharge by tilting (or via basket, on basket configurations)

Operators need no special pressure-vessel certification for the sub-2.5 kg/cm² range — training is limited to loading, setting parameters, and safe lid locking/releasing.

Labor Savings: Fewer Hands, More Batches

Labor savings come from three directions:

1. Less watching — one operator can manage two or three pressure kettles at once, where a single atmospheric kettle demands frequent attention

2. Fewer batch interventions — no routine de-foaming, water topping, or stir checks

3. Shift compression — 3× more batches per day means either the same output with fewer shifts, or higher output with the same crew

For a plant running two cooking lines with two operators per shift, moving to pressurized cooking can free one full operator per shift for other work — or enable the same headcount to run three lines instead of two.

Which One Should You Choose?

Stay with a jacketed cooking kettle if: your volumes are small, your products are mostly liquid (soups, sauces, stews) where open boiling is standard, or you rarely cook hard-to-soften ingredients.

Move to a pressure cooking kettle if: you cook beans, pulses, chickpeas, meat or bone products in bulk, you are throughput- or steam-constrained, or you want to cut labor per tonne of finished product. The sub-2.5 kg/cm² operating range keeps certification and training requirements modest while still delivering the step-change in cooking speed.

FAQ

Q: Is a pressure cooking kettle the same as an autoclave? A: Not exactly. Autoclaves typically run at higher pressures and are built for sterilization duty. The TINDO pressure cooking kettle works below 2.5 kg/cm² — high enough to cook beans and meat several times faster than atmospheric boiling, while keeping the vessel in the lighter pressure category that is simpler to operate and maintain.

Q: Do beans need soaking before pressure cooking? A: Soaking shortens the pressurized cycle and improves texture uniformity, but the pressure kettle can also handle unsoaked beans with a longer cycle. TINDO recommends a test batch to set the right parameters for your variety and end use.

Q: Can the same kettle cook other products? A: Yes — the same vessel cooks meat, poultry, bone broth, vegetables and stews. If you need stirring for sauces or pastes, see the TINDO industrial pressure cooking mixer range.

Q: What capacities are available? A: TINDO builds pressure cooking vessels from 100L up to 2000L, with electric or induction heating options and tilting or basket discharge configurations.

Related Equipment & Case Studies

• Industrial Pressure Cooker for Beans & Food Processing (100L-2000L)

• Industrial Cooking Kettle Mixer — Jacketed Kettle Range

• 400L Steam Pressure Cooker Delivered to Mexican Meat Processor

• Two 1000L Steam Pressure Cookers Delivered to Africa

Unsure which cooking vessel fits your bean or pulse line? Send us your product, batch size and daily target — TINDO's engineers will recommend a configuration and run a test cycle plan for your recipe.
