ZKJB-1200 Vacuum Meat Mixer Delivered to a US Custom Processor: 900 kg/Batch Mixing for Burger Patties & Meatballs

Author: Alex Song Publish Time: 2026-09-06 Origin: Site

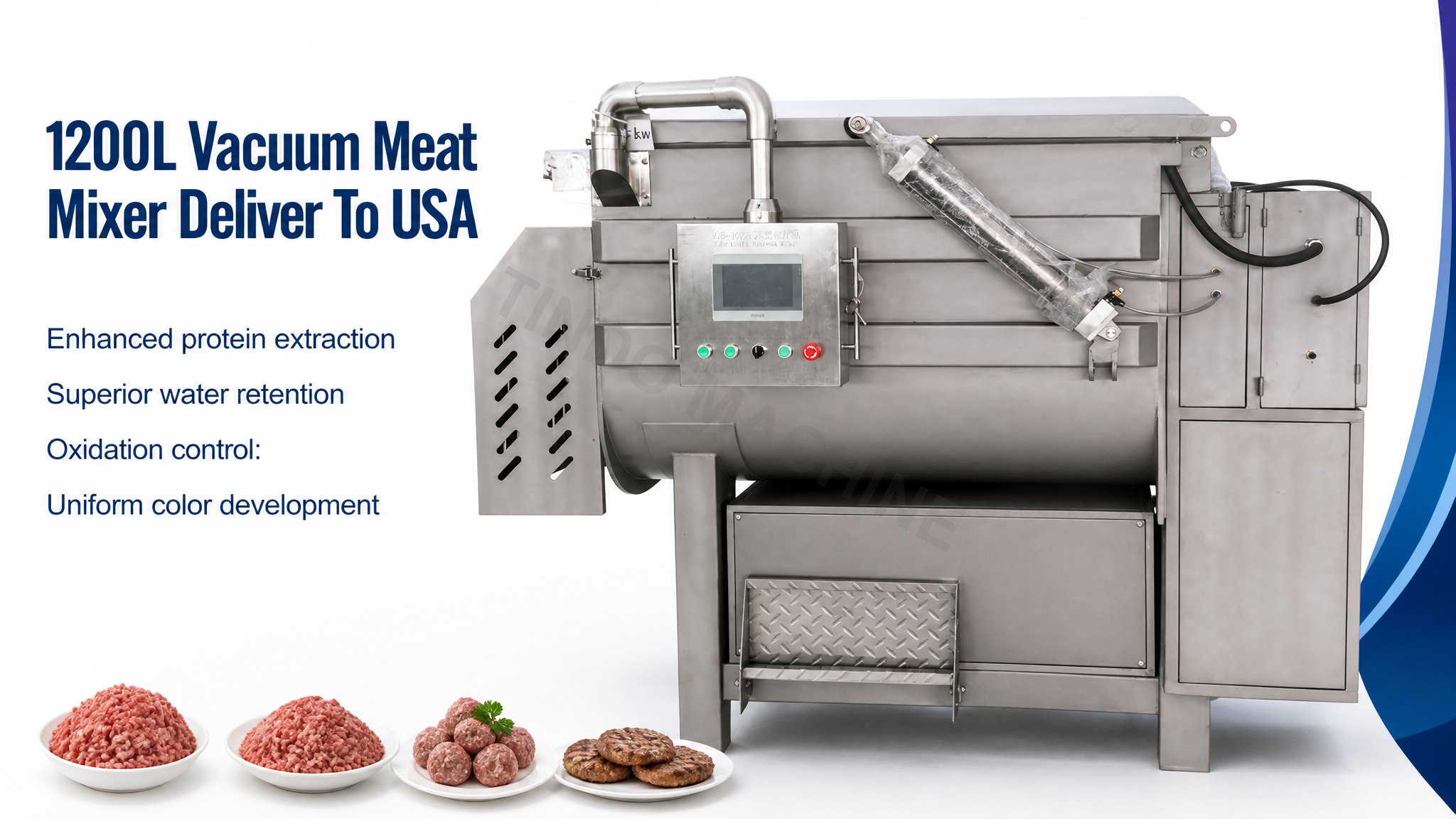

ZKJB-1200 vacuum meat mixer custom 220V 60Hz delivered to US processor

When a US processor needed a single machine to blend raw material for both burger patties and meatballs, standard atmospheric mixers could not deliver the consistency their forming lines demanded. TINDO's answer was a custom-configured ZKJB-1200 vacuum meat mixer—900 kg per batch, engineered around North American electrical standards, and shipped from Jinan to the United States for patty and meatball production.

Why a US Processor Chose Vacuum Mixing for Patty & Meatball Raw Material

Burger patties and meatballs share one critical requirement: the raw blend must hold together through forming, freezing, and cooking without falling apart or weeping. Vacuum mixing delivers exactly that binding quality.

Under a vacuum of −0.085 MPa, the ZKJB-1200 removes more than 99% of ambient air from the mixing chamber. This does two things that matter for patty and meatball lines:

Protein extraction — Salt-soluble myofibrillar proteins migrate to the surface of each meat particle and form a sticky exudate. During cooking, this exudate binds the whole piece together, giving patties a clean bite and meatballs a dense, springy texture.
Water retention — The dense protein matrix traps moisture, reducing cook loss by 5–12% compared with atmospheric-mixed product. For a processor running 4,000+ kg per day, that yield difference pays for the machine.

The absence of air pockets also means no gray spotting inside the formed product, uniform color across the batch, and 3–5 days of extended refrigerated shelf life for raw marinated material.

Customized for US Operation

This was not an off-the-shelf delivery. The ZKJB-1200 was configured for the client's facility:

Electrical — 220V / 60Hz / 3-phase to match US plant infrastructure, with all drive and control components selected for North American parts availability
Control — Programmable vacuum/time mixing cycles with recipe storage, so patty blend and meatball blend run as one-touch SKU programs with consistent batch-to-batch results
Hygiene — Fully welded SUS304 bowl with mirror-polished interior (Ra ≤ 0.8 μm), IP65-rated electrical enclosure for high-pressure washdown, and tool-free paddle removal for end-of-shift cleaning in under 90 seconds
Compliance — CE-certified electrical and mechanical safety systems, HACCP-ready construction for US food safety audits

ZKJB-1200 Technical Specifications

Parameter	Specification
Capacity	900 kg/batch
Tank Volume	1,200 L
Motor Power	12.85 kW
Mixing Speed	50 r/min
Vacuum Level	0 to −0.085 MPa
Voltage (as delivered)	220V / 60Hz / 3-Phase (custom)
Dimensions	2420 × 2300 × 1900 mm
Bowl Material	SUS304, fully welded, mirror-polished
Lid Operation	Hydraulic lift, silicone double-lip seal, sight glass

How the Machine Fits a Patty & Meatball Production Line

Vacuum mixing sits between grinding and forming in the production sequence. In the client's line, tempered meat is ground to the required particle size, then loaded into the ZKJB-1200 for vacuum blending with fat, water, seasoning, and binders. The blended mass is discharged directly to the forming station.

TINDO application engineers supported the client in two specific ways:

Patty blend program — Higher mixing speed window and a defined vacuum hold time to develop the protein network that keeps patties intact through the forming mold and blast freezer
Meatball blend program — Shorter mixing cycle to preserve coarse particle definition, preventing the "over-worked" pasty texture that makes meatballs tough

Because both programs are stored in the PLC, the operator simply selects the recipe—no guesswork between product changes.

Why the 1200L Class Was Right for This Customer

Production Volume	Recommended Model
< 1000 kg/day	ZKJB-150
1000–3000 kg/day	ZKJB-300
3000–6,000 kg/day	ZKJB-600
> 8,000 kg/day	ZKJB-1200 (this case)

With patty and meatball output above 8,000 kg/day, the client needed batch capacity that kept pace with the forming line without constant reloading. The ZKJB-1200's 900 kg working capacity and 10-50 r/min gentle folding action deliver high throughput while preserving particle integrity—the two factors that determine formed-product quality.

Frequently Asked Questions

Q: Can the ZKJB-1200 handle both burger patty and meatball raw material in one machine? A: Yes. The dual Z-arm paddles and programmable mixing profiles allow the same machine to run a high-protein patty blend and a coarse meatball blend as separate stored recipes, with one-touch changeover.

Q: What temperature range is recommended for the raw material? A: Fresh or tempered meat at −2°C to +4°C. For fully frozen blocks, pre-grinding is recommended before vacuum mixing.

Q: Is a nitrogen backfill option available? A: Yes. The ZKJB-1200 supports an integrated N₂ backfill system, which extends refrigerated shelf life for high-fat formulations and export products with long cold-chain transit.

Q: Does TINDO support installation and service in the United States? A: TINDO provides remote commissioning guidance, operator training documentation, and preventive maintenance schedules with every machine. Spare parts are shipped globally, and annual service contracts are available for critical vacuum system components.

Get a Custom Quote for Your US Facility

Whether you run burger patties, meatballs, sausages, or marinated products, TINDO's application engineers will size the right ZKJB model and confirm electrical compatibility with your plant. Contact us for a site-specific capacity calculation and ROI projection.
