When a large-scale Russian sandwich manufacturer needed to scale from semi-automatic grilling to a fully automated line producing 8000+ marked toast slices per hour, off-the-shelf single-lane grill markers fell short. TINDO engineered a custom YW600E-I dual-channel system that doubled throughput within the same footprint — and just passed final trials with zero smudge defects on 100% of output. This article covers the engineering decisions, key specifications, and how dual-lane grill marking applies beyond sandwiches to burger buns, bagels, and meat products.
A grill marker (also called a grill branding machine or char-marking machine) applies heated patterned belts or rollers to the surface of food products — creating the seared lines, diamond patterns, or branding marks that signal "grilled" quality to consumers.
A dual-channel system runs two independent lanes side by side, each with its own temperature control, belt speed, and pressure adjustment. The result:
Single Channel | Dual Channel |
|---|---|
One lane, one speed, one product at a time | Two independent lanes — run same product for 2× throughput, or two different products simultaneously |
3000-800 pcs/h | 6,000-16,000 pcs/h |
Whole line stops for lane changeover | Change one lane while the other keeps running |
For high-volume bakeries and sandwich factories, the dual-channel architecture is the difference between meeting a supermarket supply contract and losing it.
The client — a major Russian food processing facility producing packaged sandwiches for retail chains, convenience stores, and food service across the CIS — faced a familiar growth bottleneck:
Existing line: Semi-automatic single-lane grill marker, 3000-4000 toast slices/hour
New contract: A national retailer required 8,000+ marked sandwich slices per 8-hour shift
Constraint: No additional factory floor space available for a second machine
Product sensitivity: Toast bread is fragile — excessive heat or pressure causes edge crushing and discoloration
After evaluating five equipment suppliers, the client selected TINDO's proposal: a customized dual-channel system that fit within their existing line footprint.
Requirement | Standard Machine | TINDO Custom Solution |
|---|---|---|
Two lanes, independent control | Single-lane only | YW600E-I dual-channel with independent PID controllers per lane |
Alignment at 8000 pcs/h | Manual alignment, <2000 pcs/h | Proprietary guide rail system — self-centering, zero smudge at full speed |
380V/50Hz CIS power standard | 220V/380V options | Factory-configured to 380V/50Hz, plug-and-play on Russian grid |
HACCP washdown | Standard SUS304 | Quick-release belts + sloped frame — full washdown in under 15 minutes |
Parameter | Specification |
|---|---|
Configuration | Dual independent lanes, side-by-side |
Marking method | Heated patterned belts, top and/or bottom |
Total throughput | 6000-16,000 slices/h |
Belt width per lane | 600-800 mm (customizable) |
Temperature range | 50-500°C, ±2°C PID per lane |
Heating | Electric (gas optional) |
Belt material | Food-grade non-stick, quick-release |
Power | 380V/50Hz/3-phase |
Material | Full SUS304 stainless steel |
Safety | Emergency stop per lane, light curtain at infeed |
The machine underwent a full week of production trials integrated into the client's live assembly line:
Test | Target | Result |
|---|---|---|
Throughput (8h shift) | 8,000 slices | 9,600 slices (20% above target) |
Smudge / misalignment rate | <0.5% | 0% — 10,000 slices, zero defects |
Edge discoloration | None visible | None detected (QA panel of 5 inspectors) |
Lane changeover (pattern switch) | <10 minutes | 7 minutes average |
Full washdown time | <20 minutes | 14 minutes (HACCP inspector verified) |
Downtime during trial week | <2% | 0.6% (one 12-minute belt-tension adjustment on day 3) |
While this machine was purpose-built for a sandwich line, the YW600E-I platform adapts to a wide range of bakery and meat products:
Product | Application | Marking Pattern |
|---|---|---|
Toast bread slices | Pre-packaged sandwiches | Parallel char lines |
Burger buns (top and bottom) | QSR supply | Diamond cross-hatch |
Bagels (halved) | Retail packaged bagels | Single midline mark |
Pita / flatbread | Wraps and kebab bread | Light surface branding |
Naan / Indian breads | Food service | Traditional tandoor-style marks |
Chicken breast (flattened) | Grilled chicken sandwiches | Authentic char-grill lines |
Burger patties (formed) | Premium burger chains | Branded logo or grill marks |
Halloumi / paneer slices | Grilled cheese products | Surface sear marks |

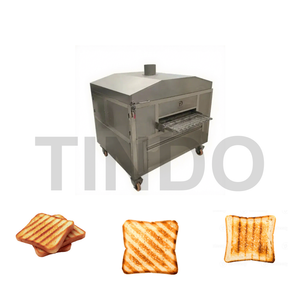

For meat-specific grill marking, see our Industrial Grill Marker Machine and Grill Marker product pages.
Your Situation | Recommendation |
|---|---|
Producing <3,000 pieces/hour, single product | Single-channel grill marker |
Producing 5,000-10,000 pieces/hour | Single-channel, plan for dual-channel within 12 months |
Producing >10,000 pieces/hour, single product | Dual-channel, both lanes running identical product |
Multiple products on same line | Dual-channel — run product A on lane 1, product B on lane 2 |
Floor space severely constrained, need 2× output | Dual-channel — same footprint as single-lane with higher-density frame |
For food manufacturers in Russia, Belarus, Kazakhstan, and neighboring markets, TINDO configures every machine to:
380V/50Hz/3-phase — standard CIS industrial power, no transformers needed
GOST-compatible documentation — technical passports, CE certificates, material traceability reports in Russian
Cold-climate packaging — machines are crated with desiccant, vacuum-sealed electrical cabinets, and shock indicators for long-haul rail and truck transport
Russian-language PLC interface — operators interact with the touchscreen in Russian, not English
For more on TINDO's Russian market experience, see our Industrial Cooking Kettle Mixer (Russian) and Frying Machine (Russian) pages.
Q: Can a dual-channel grill marker run two completely different products simultaneously?
A: Yes. Each lane has independent temperature, belt speed, and pressure control. Lane 1 can mark burger buns at 400°C while Lane 2 marks chicken fillets at 500°C.
Q: Can the marking pattern be changed?
A: Yes. Patterned belts are quick-release — swap to a new pattern (parallel lines, diamond, logo, custom) in 7-10 minutes per lane. Belts are custom-manufactured to your design.
Q: Does the machine work with frozen par-baked bread?
A: Yes, but surface condensation from thawing can affect mark quality. Best results are achieved with ambient-temperature or lightly chilled products.
With over 20 years of experience in food processing automation and equipment installed in 50+ countries, TINDO provides custom-engineered grill marking systems tailored to your product, throughput, and factory layout.
