Product Description

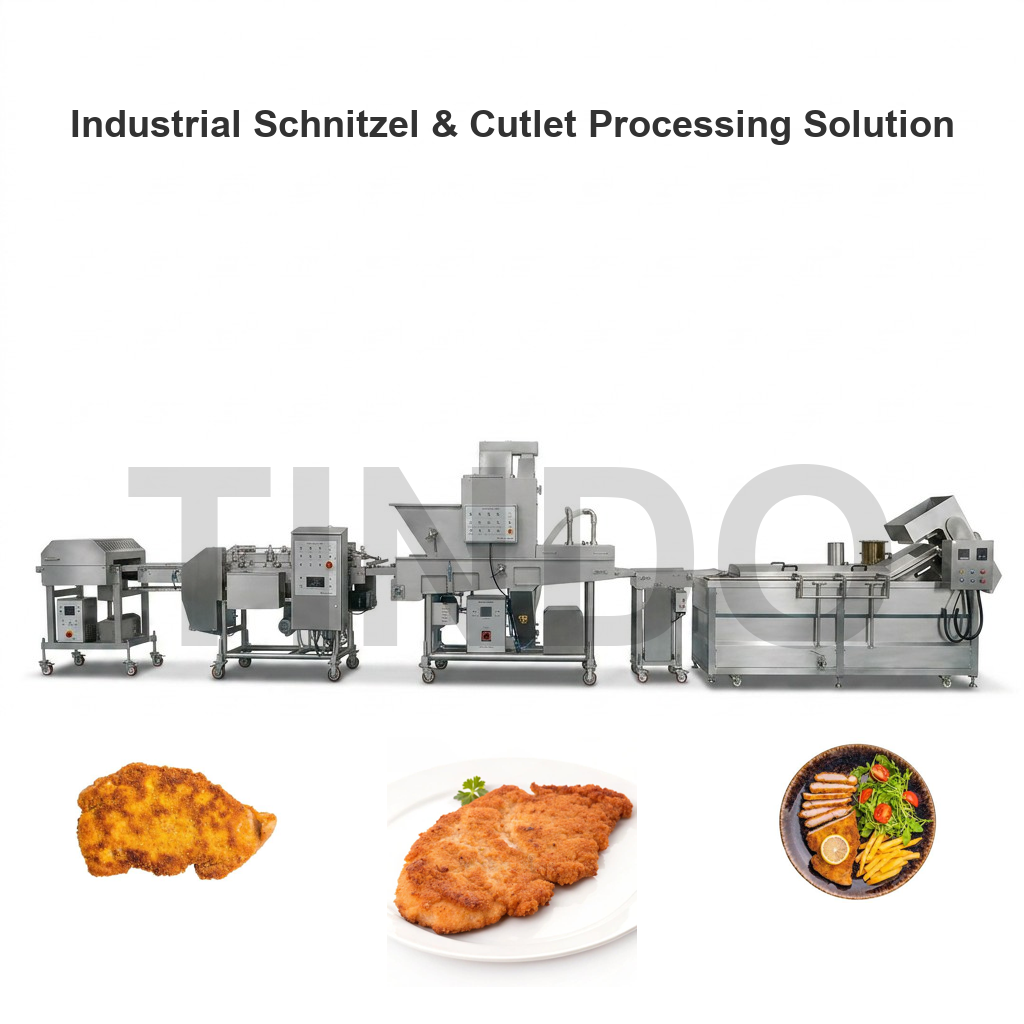

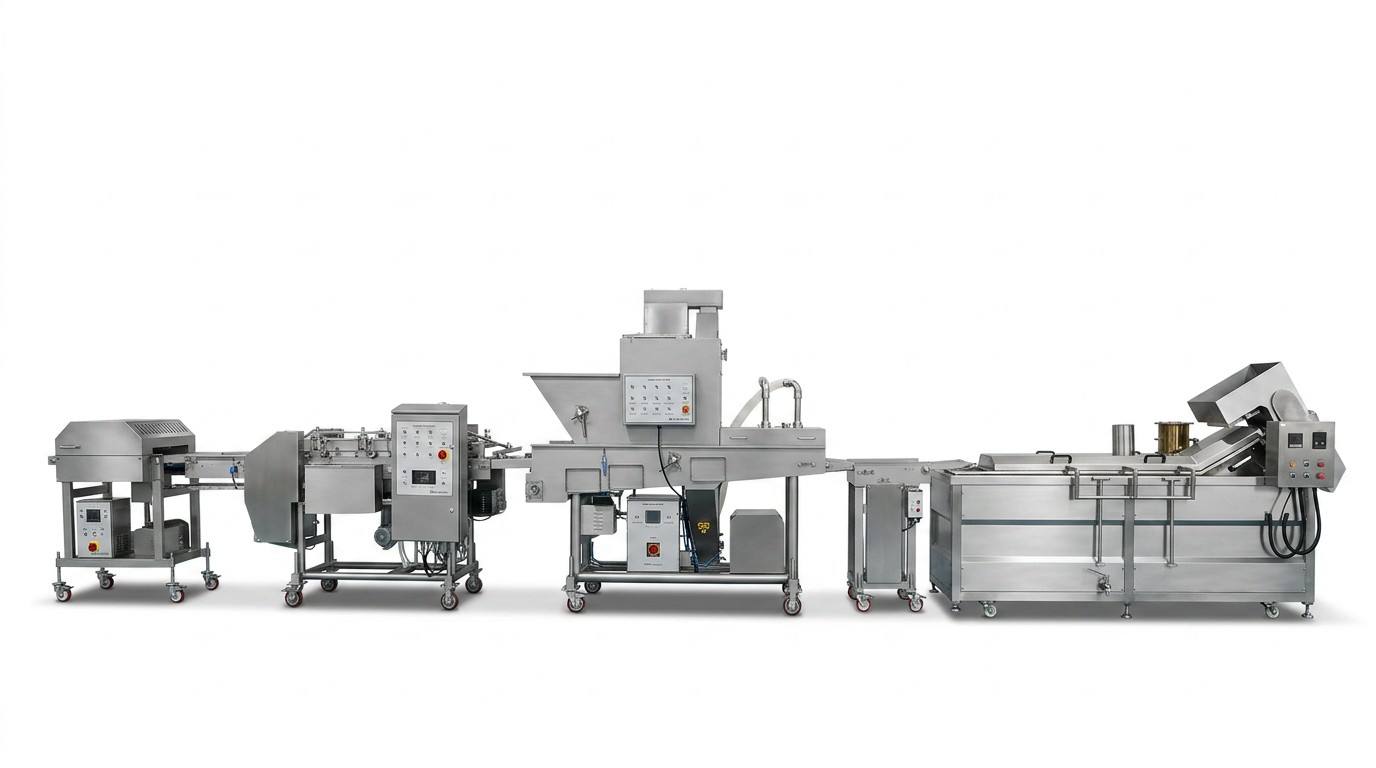

The TINDO Industrial Schnitzel & Cutlet Solution is a fully integrated, modular production system designed to meet the growing global demand for uniform, high-quality breaded meat products. Whether your facility produces traditional Austrian Wiener Schnitzel, Japanese Tonkatsu, or American-style chicken cutlets, the challenge remains the same: achieving consistent thickness and perfect coating adhesion at an industrial scale.
Traditional manual pounding and manual breading are inconsistent, labor-intensive, and prone to hygiene risks. Tindo’s 2026 automated solution replaces manual labor with a synchronized workflow of five critical modules. By utilizing advanced calendering technology and ingredient-recycling systems, we enable food processors to expand the surface area of their products while maintaining 100% fiber integrity, resulting in a premium "mouth-feel" and standardized cooking results.
Our solutions are available in multiple capacities to suit diverse factory scales, with the YY-600 series serving as the benchmark for export-grade industrial output.
System Parameter | Small-Scale (YY-300) | Mid-Scale (YY-400) | Industrial (YY-600) |
|---|---|---|---|
Typical Capacity | 100 - 200 kg/h | 400 - 600 kg/h | 1,000 - 1,200 kg/h |
Max. Product Width | 300 mm | 400 mm | 600 mm |
Flattening Range | 0 - 30 mm | 0 - 50 mm | 0 - 50 mm |
Adjustment Precision | 0.5 mm | 0.1 mm | 0.1 mm |
Drive Components | Standard | SEW Reducer (Optional) | SEW Reducer (Standard) |
Control Interface | Button Control | PLC / Touchscreen | Centralized Siemens PLC |
Tindo’s schnitzel solution is built on three pillars: Uniformity, Efficiency, and Cost-Savings.
The heart of the schnitzel line is our 8-Roller Meat Press. Unlike simple 2-roller machines that crush meat, our 8-roller system uses a multi-stage calendering effect.
0.1mm Granularity: Operators can adjust thickness with micro-precision, ensuring that every schnitzel has the exact same cooking profile.
Fiber Protection: The gradual compression protects the protein structure, ensuring that the meat remains juicy after frying, rather than becoming tough or dry.
To achieve the perfect "crunch," we integrate our specialized Batter & Breading modules:
Waterfall Battering: Ensures 360-degree coverage for both thin conventional batters and thick tempura styles.
Crumb Circulation & Recycling: Our breading machine features a low-impact circulation system designed specifically for Panko crumbs. It prevents the delicate crumbs from being crushed into dust, maintaining the premium "spiky" texture that consumers demand.
The final stage utilizes a Continuous Deep Fryer with PID temperature control (±1°C).
ΔT Stability: Even during cold product intake, the system maintains a stable oil temperature, ensuring consistent color and oil absorption across the entire shift.
Oil Management: Integrated multi-stage filtration removes sediment immediately, extending oil life and preventing burnt-particle accumulation.
Yield Maximization (Up to 99%): Tindo’s precision flattening expands the meat’s surface area without tearing, allowing for higher coating pickup and reduced raw material waste.
Significant Labor Savings: A fully integrated YY-600 line can replace 12-15 manual operators in the pounding and coating sections, providing a typical ROI payback in under 12 months.
Global Components Reliability: To ensure 24/7 uptime in North America and Europe, we standardize on Siemens PLC, SEW-Eurodrive motors, and AIRTAC pneumatics. Local maintenance teams can easily source spare parts.
Ingredient Efficiency: Our proprietary recycling systems for flour and crumbs reduce ingredient loss by approximately 15% annually, a direct boost to your bottom line.
Sanitary Engineering (HACCP): The entire line is built from SUS304 Stainless Steel with 3mm-5mm thickness. Quick-release belts and hydraulic flip-top covers allow for deep sanitation in under 45 minutes.
This solution is highly versatile and can be recalibrated for a wide range of global SKUs:
Poultry: Chicken Schnitzel, Cordon Bleu, Chicken Cutlets, Popcorn Chicken.
Pork: Tonkatsu (Japanese Pork Cutlet), Pork Schnitzel, Tenderloin Medallions.
Beef: Country Fried Steak, Minute Steaks, Beef Carpaccio (flattened).
Seafood: Breaded Fish Fillets, Fish Fingers, Calamari Steaks.
Alternative Proteins: Plant-based burger patties and veggie cutlets.
Q: Can the line handle different shapes such as "Butterfly" cuts?
A: Yes. When combined with our Horizontal Slicer, the line can process butterfly-cut breasts into perfectly flat, large-format schnitzels ready for coating.
Q: Is the system compatible with US power standards?
A: Absolutely. We provide factory-direct electrical customization for 480V 60Hz (USA), as well as 380V/415V 50Hz for international markets.
Q: How do we handle the layout for a narrow factory floor? A: Tindo engineers provide free CAD Layout Design. We can configure the line in Linear, L-shape, or U-shape patterns to maximize your available square footage.
