Product Description

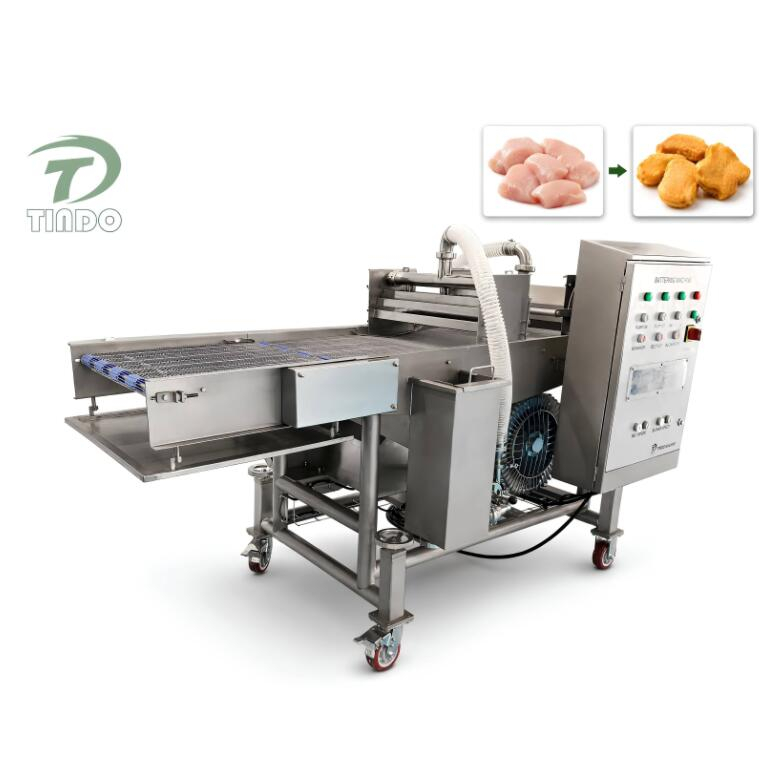

An industrial batter applicator is a continuous coating machine that applies a uniform layer of wet batter to food products — typically after a dry predust layer and before bread crumb coating. The batter acts as an adhesive, binding the outer crumb coating to the product surface while also contributing to the final product's texture, flavor, and moisture retention.
A batter applicator handles the full process:
Floured Product → Batter Curtain/Immersion → Air-Knife Blow-Off → Excess Batter Recirculation → Coated Product OutThe most common design. A continuous curtain of batter flows over the product as it passes through on a wire-mesh conveyor. Excess batter drains through the mesh and is recirculated by a pump.
Best for: Flat or regularly shaped products — chicken nuggets, fish fillets, burger patties, vegetable snacks.
Key advantage: Simple design, easy to clean, handles high-viscosity batters well.
The product is fully submerged in a batter bath, then lifted out via an inclined conveyor. This ensures 100% coverage — even on irregular shapes.
Best for: Whole-muscle products (chicken breasts, fish portions), bone-in products, and items with complex geometries.
Key advantage: Unmatched coverage. Essential for products where visual consistency is critical.
Combines both methods in sequence — immersion for thorough coverage, followed by a top curtain for final even coating.
Best for: Premium coated products where zero bare spots is non-negotiable.
TINDO offers both curtain and combination batter applicators. See our Industrial Batter Applicator for technical specifications.
Not all batters are created equal, and your applicator needs to handle the type you are using:
Property | Adhesion Batter | Tempura Batter |
|---|---|---|
Function | Glue the crumb coat to the product | Create a puffy, crispy crust (often the final coat) |
Viscosity | Medium to high | Low to medium |
Leavening | None | Contains baking powder or chemical leavening |
Temperature sensitivity | Moderate | High — must stay cold to prevent premature reaction |
Equipment needs | Standard pump and curtain | Jacketed tank for temperature control, gentler pump |
The key mistake manufacturers make: Running tempura batter through a standard adhesion batter applicator. The pump shear breaks down the leavening, resulting in a flat, non-puffy crust. If you are making tempura-style products, ensure your applicator has:
Cooling jacket on the batter holding tank (maintains batter below 4°C)
Low-shear pump (progressive cavity or diaphragm, not centrifugal)
Adjustable air-knife for precise pickup control
Match the applicator's belt width and speed to your line's output. Undersized and it becomes the bottleneck; oversized and you waste batter on an underutilized machine.
Belt Width | Typical Capacity | Best For |
|---|---|---|
200 mm | 60–150 kg/h | R&D, pilot runs |
300 mm | 150–400 kg/h | Small to mid-scale |
400 mm | 400–800 kg/h | Mid to high-volume |
600 mm | 800–1,500 kg/h | Large-scale industrial |
The air-knife blows excess batter off the product before it exits. This is the primary control for pickup percentage — how much batter stays on the product.
What to look for:
Independently adjustable top and bottom air knives
Fine airflow control (not just on/off)
Positioning flexibility — different products need the air stream at different angles
Batter temperature directly affects viscosity and food safety. A batter that starts at 4°C and climbs to 12°C over a shift will behave completely differently — resulting in inconsistent pickup.
HACCP requirement: Batter must stay below 4°C. Look for applicators with:
Integrated cooling jackets
Temperature sensors with PLC feedback
Insulated holding tanks
Batter is a high-risk food contact surface. Your applicator must be designed for daily washdown:
Quick-release belts and removable drip trays
Open-frame construction with no hidden cavities
IP65-rated electrical components
CIP (Clean-in-Place) compatibility for high-volume lines
Our Coating & Breading Solutions detail the full hygiene specifications.
A coating line is a sequence, and each module must be synchronized. Here is the standard layout:
Forming Machine → Preduster → BATTER APPLICATOR → Breading Machine → FryerSpeed synchronization is critical. The batter applicator belt must run at exactly the same speed as the preduster before it and the breader after it. A speed mismatch of even 2% will cause:
Product pile-up or stretching at transitions
Uneven coating (product sits too long or too short under the batter curtain)
Increased waste from batter dripping onto the floor and not the conveyor
Pro tip: When integrating, design the line backward from the fryer. The fryer's belt speed determines everything upstream.
Problem | Likely Cause | Fix |
|---|---|---|
Bare spots on product | Batter curtain not covering full belt width | Adjust curtain width; check pump flow rate |
Tailing (batter dripping onto conveyor) | Air-knife pressure too low or incorrectly angled | Increase pressure; re-angle air blades |
Inconsistent pickup from morning to afternoon | Batter temperature rising over shift | Add cooling jacket; reduce batch size |
Batter foaming | Pump cavitation or shear damage | Switch to low-shear pump; reduce recirculation speed |
Batter separation (water pooling) | Recirculation too aggressive, breaking emulsion | Slow down pump; add gentle agitation |
Item | Estimated Cost (USD) |
|---|---|
300mm Curtain Applicator (SUS304) | 6,000–6,000–12,000 |
600mm Combination Applicator (SUS304, with cooling) | 15,000–15,000–28,000 |
Spare air-knife assembly | 300–300–600 |
Annual maintenance kit (belts, seals, bearings) | 500–500–1,200 |
FOB China pricing, 2026. Contact TINDO for a customized quotation.
Operating cost is dominated by batter waste. A well-designed applicator with efficient recirculation can reduce batter waste to under 3% — compared to 8–15% with poorly designed systems.
Plant-based proteins (soy, pea, wheat) tend to produce stickier batters with different rheology than egg-and-flour batters. Your applicator needs:
Non-stick belt coatings or polished SUS304 contact surfaces
Higher air-knife pressure to handle thicker batter
Dedicated batter formulation — plant-based batters often require different viscosity modifiers
The same TINDO batter applicator handles both conventional and plant-based batters with simple parameter adjustments.
Q: Can I use the same batter applicator for tempura and adhesion batter?
A: Yes, if it has a cooling jacket and a low-shear pump. Without temperature control, tempura batter quality degrades rapidly.
Q: How often should the batter be replaced?
A: It depends on production volume and temperature control. With proper cooling (below 4°C), batter can last a full 8-hour shift. Without cooling, replace every 3–4 hours.
Q: What is the typical belt lifespan?
A: Stainless steel wire-mesh belts last 3–5 years with proper cleaning. Replacement cost is 500–500–1,500 depending on belt width.
Q: Does the applicator need to be cleaned between product changeovers?
A: Yes — especially when switching between meat and plant-based products (allergen control). Quick-release designs allow full washdown in 20–30 minutes.
Q: Can the machine handle gluten-free batters?
A: Yes, but gluten-free batters typically have lower viscosity. You may need to adjust the pump speed and air-knife pressure for optimal pickup.
Choosing the right batter applicator depends on your product type, target capacity, and line configuration. Contact our engineering team for:
Application-specific equipment recommendation
Line layout CAD with batter applicator integration
Factory-direct pricing and lead time
