Product Description

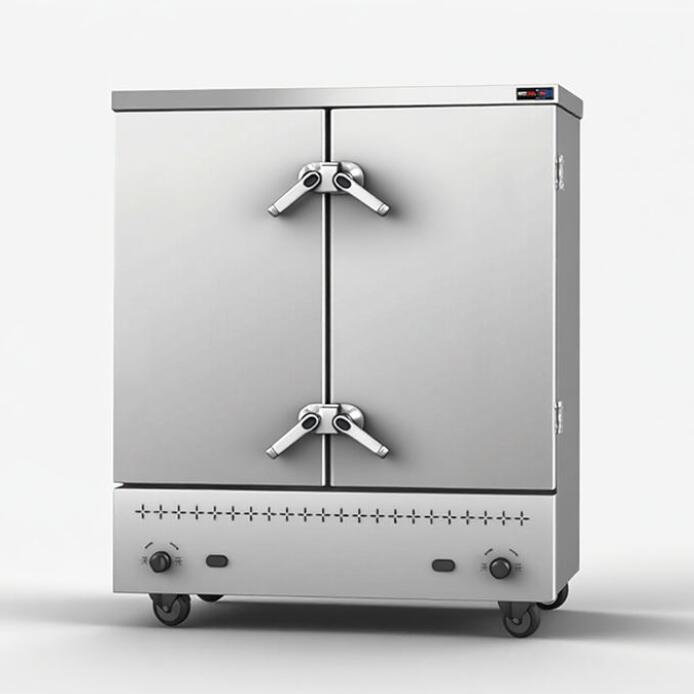

The TINDO TDZXD-series electric steaming oven is a plug-and-play steaming cabinet for bulk rice, seafood, vegetable, and bun production — powered by electric heating elements instead of gas burners. Five models cover 6 to 24 pans, with zero fuel infrastructure required: connect the power supply, fill the water tray, and steam.
Electric heating delivers precise, consistent steam output with no combustion, no gas connection, no ventilation requirement — making the TDZXD-series the simplest steaming solution to install in urban kitchens, hotels, restaurants, and food processing facilities where gas is unavailable or electricity is the preferred energy source.
For gas-fueled steaming, see our Gas Steaming Oven TDKZ Series. Both series share the same cabinet platform, tray systems, and automatic water feed — the only difference is the heat source.
The TDZXD-series generates steam from electric heating elements immersed in the integrated water tray. No gas line, no LPG bottles, no flue/ventilation duct, no boiler room. Installation is a single electrical connection plus a water line. This makes electric steaming the fastest-to-install and lowest-infrastructure steaming solution available.
The TDZXD-6 offers both 220V and 380V versions (6/9 kW) — critical for small restaurants and cafes in regions with single-phase-only supply. All larger models (8-24 pans) are 380V 3-phase. Factory-wired to your local standard; no field conversion required.
Electric heating provides consistent, controllable steam output without the flame modulation fluctuations of gas burners. For delicate products — fish, shrimp, vegetables — the steady steam profile preserves texture and color batch after batch. Steam intensity is adjustable from gentle simmer to full rolling steam.
Cabinet, doors, trays, and water tray are all SUS304 food-grade stainless steel. Hygienic radiused corners and drain channels prevent pooling and bacterial growth. Built for daily high-pressure washdown.
The float valve maintains water tray level automatically during continuous operation — no manual refills, no dry-boil risk. Operators load product, set the timer, and walk away.
From 6 pans (small restaurants) to 24 pans (central kitchens), each pan holds a standard gastronorm or bakery tray. Different products can steam simultaneously on separate pans within the same cabinet, subject to cooking time compatibility.
Parameter | TDZXD-6 | TDZXD-8 | TDZXD-10 | TDZXD-12 | TDZXD-24 |
|---|---|---|---|---|---|
Model | TDZXD-6 | TDZXD-8 | TDZXD-10 | TDZXD-12 | TDZXD-24 |
Pans (trays) | 6 | 8 | 10 | 12 | 24 |
Dimensions | 680×540×1000 mm | 680×540×1170 mm | 680×540×1340 mm | 680×540×1510 mm | 1390×540×1510 mm |
Dimensions (inch) | 27"×21"×39" | 27"×21"×46" | 27"×21"×53" | 27"×21"×59" | 55"×21"×59" |
Power | 6/9 kW | 9 kW | 12 kW | 12 kW | 24 kW |
Voltage | 220V/380V | 380V | 380V | 380V | 380V |
Material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
Steam Generation | Electric heating elements | Electric heating elements | Electric heating elements | Electric heating elements | Electric heating elements |
Water Feed | Automatic float valve | Automatic float valve | Automatic float valve | Automatic float valve | Automatic float valve |
Doors | Single | Single | Single | Single | Double (24-pan) |
Packaging | Export carton, 1 pc/carton | Export carton, 1 pc/carton | Export carton, 1 pc/carton | Export carton, 1 pc/carton | Export carton, 1 pc/carton |
Product | Steaming Time | Recommended Model |
|---|---|---|
White rice (bulk) | 25-40 min | TDZXD-12 or TDZXD-24 |
Seafood (fish, shrimp, crab) | 8-20 min | TDZXD-6 or TDZXD-8 |
Vegetables | 5-12 min | TDZXD-6 or TDZXD-8 |
Steamed buns (baozi, mantou) | 15-25 min | TDZXD-10 or TDZXD-12 |
Dumplings | 10-15 min | TDZXD-10 |
Ready-meal rethermalization | 10-20 min | TDZXD-12 or TDZXD-24 |
Eggs (steamed) | 12-18 min | TDZXD-6 |
Electric (TDZXD Series) | Gas (TDKZ Series) | |
|---|---|---|
Installation | Electrical connection + water line | Gas line/LPG bottles + ventilation |
Fuel infrastructure | None | Gas supply required |
Operating cost | Higher where electricity is expensive | 30-50% lower where gas is cheap |
Steam consistency | Very stable (no flame fluctuation) | Stable (burner modulation) |
Best for | Urban kitchens, no-gas facilities, delicate seafood/vegetables | Central kitchens, gas-cheap regions, high volume |
Power/Fuel options | 220V & 380V | LPG & LNG |
Rule of thumb: Choose electric when gas is unavailable or product quality demands maximum steam stability. Choose gas when operating cost dominates and gas supply exists.
Stage | TINDO Equipment | What It Does |
|---|---|---|
Before | Kneads dough for buns and dumplings | |
STEAM | Electric Steaming Oven TDZXD (this page) | Steams rice, buns, seafood, vegetables |
After | For baked products (bread, pastry) | |
After | Packages steamed products for retail |
Q: What power supply does the TDZXD-6 need?
It comes in two versions: 220V (6 kW) for single-phase facilities and 380V (9 kW) for 3-phase. Choose at order time — the machine is factory-wired to your local standard.
Q: Does this machine require a boiler or steam piping?
No. Steam is generated directly by electric heating elements in the integrated water tray. Only an electrical connection and a water line are needed.
Q: How is this different from the gas TDKZ series?
The TDZXD uses electric heating elements; the TDKZ uses LPG/LNG burners. Same cabinet platform, same steaming function, different heat source. Electric: no gas infrastructure, more stable steam, higher operating cost where electricity is expensive. Gas: lower operating cost where gas is cheap, requires gas supply.
Q: Can different products steam at the same time?
Yes — separate pans allow different products in the same cabinet, provided steaming times are compatible. Stagger loading if products need different durations.
Q: What safety features are included?
Over-temperature protection, dry-boil protection (water level sensor), insulated doors, and thermal cutoff. CE-compliant electrical components.
Contact our sales team for a configuration and quotation matched to your daily output and power supply.
