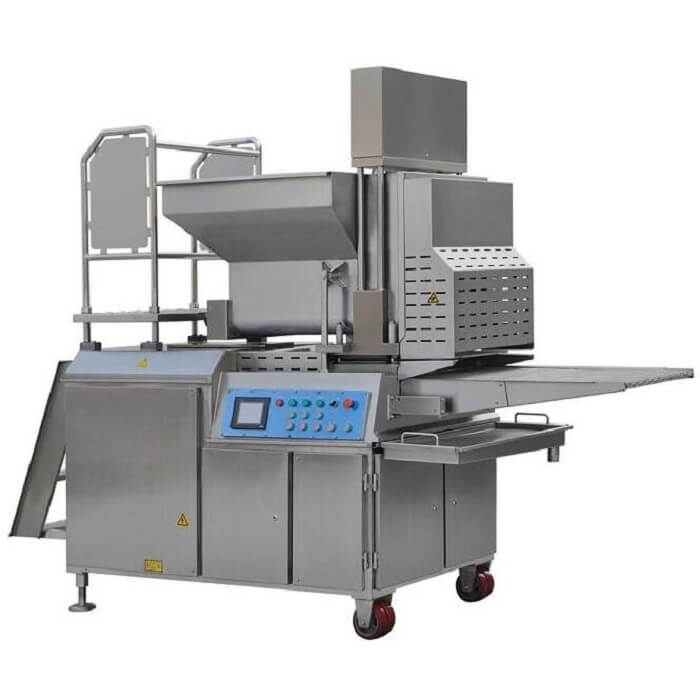

Burgers nuggets forming machine MF600

* Can be utilized as stand-alone food production equipment covering functions of filling, forming and conveying, etc.

* Also can combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine.
Product Description

* It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.

* Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.

* Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops.

* And it can be applied in the fields of all kind of minced/sliced products for premier meat texture taste.

Product Parameters
Belt Width600mm400mm130mm
Air Pressure/Water Pressure6 bar/2 bar6 bar/2 bar
Stroke speed15-60 times/min15-55 times/min35 times/min
Product Thickness6-40mm6-25mm8-15mm
Weight Tolerance≤1%≤1%
Max. Product Diameter150mm (Hamburger)135mm (Hamburger)100mm (Hamburger)
Filling Pressure3-15MPa3-15MPa
Overall Dimension3170×1176×2430mm2828×830×2136mm860×600×1400mm
