Product Description

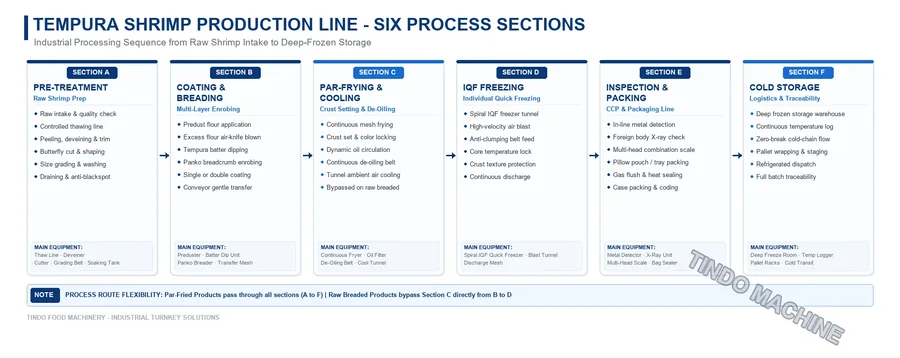

A tempura shrimp production line is not one machine but a sequence of up to sixteen operations that have to hold the same rhythm from raw material intake to the sealed frozen carton. The configuration below covers six sections: pre-treatment, coating and breading, par-frying and cooling, IQF freezing, inspection and packing, and cold storage.
Two product routes run through the same equipment set. Par-fried products pass through every section. Raw breaded products bypass par-frying and move directly from coating to freezing. Which route applies — and how every stage downstream is sized — follows from five product decisions that have to be settled before any equipment is specified.
In industrial terms "tempura shrimp" is not a single product. Five decisions change the process route, and getting them wrong is the most common reason a line has to be rebuilt after commissioning.
Decision | Options | Effect on the line |
|---|---|---|
Coating type | Batter-only tempura, or breaded tempura shrimp (panko) | The breaded route adds a predust stage and a breading stage, and is the mainstream export product |
Heat state | Raw breaded, or par-fried | Par-fried adds continuous frying, de-oiling and cooling before freezing |
Body form | Fantail, butterfly, butterfly tail-off, round, round tail-off, pieces, composite units such as shrimp sticks | Determines the butterflying cut, the forming method and how the coating is applied |
Tail | Tail-on or tail-off | Changes the peeling station layout and the visual yield |
Size grade | Graded by pieces per pound or per kilogram | Sets the grading tolerance, the coating pickup per piece and the weight band |
The six permitted forms and their naming in the United States follow 21 CFR 161.175(c); the same clause governs how the finished product must be labelled on the US market.
Intake and acceptance, controlled thawing, peeling and deveining, butterflying or round forming, grading, washing and dewatering, then brine or antioxidant dipping.
Predust to build a thin dry layer, batter application in a tempura batter applicator, and panko breading. Single and double-pass coating sequences are both used.
Continuous belt frying to set the shell, continuous de-oiling, then tunnel cooling to bring the product down to a temperature the freezer can handle. Raw breaded products skip this section entirely.
Spiral or fluid-bed individually quick frozen freezing, with an anti-collapse belt for coated products so the shell is not crushed or deformed.
In-line metal detection, X-ray foreign body inspection where specified, multihead weighing, nitrogen-flushed pillow pack or tray sealing, then cartoning and coding.
Deep-freeze storage, continuous temperature recording, and controlled transfer to the refrigerated vehicle.
The table lists the sequence and the control points that have to be locked at each step. Parameter names are given deliberately — the numeric values for each of them are set by your product specification and HACCP plan, not by a supplier's published figure.
# | Operation | Control points |
|---|---|---|
1 | Raw material acceptance | Grade in pieces per pound, incoming core temperature, sensory and microbiological checks, drug and sulphite residues, lot traceability |
2 | Thawing | Thaw method and duration, upper limit on final core temperature, no repeated freeze-thaw cycles |
3 | Peeling, beheading and deveining | Peeling completeness, body integrity, tail fan retention for tail-on grades |
4 | Butterflying or round forming | Cut depth consistency, tail fan intact, uniform shape |
5 | Grading | Grading tolerance, foreign body removal |
6 | Washing and dewatering | Surface moisture — the single biggest driver of predust adhesion — plus wash water temperature and change frequency |
7 | Seasoning and dipping | Brine and phosphate ratio, dip time and temperature, antioxidant treatment permitted in the target market |
8 | Predust | Coating uniformity, excess flour recovery |
9 | Batter | Batter temperature and viscosity, solids content, dip time |
10 | Panko breading | Coverage, crumb layer thickness, single or double-pass order |
11 | Par-frying (skipped on raw breaded products) | Oil temperature, fry time, oil polar compounds and acid value, filtration frequency |
12 | De-oiling and cooling | Drain time, product temperature after cooling |
13 | IQF freezing | Air temperature and velocity, freeze time, core temperature at exit, no clumping |
14 | Metal detection and X-ray | Ferrous, non-ferrous and stainless detection limits, pass direction, in-line verification frequency |
15 | Weighing and packing | Piece weight band, pieces per bag, seal strength, date coding |
16 | Cartoning and frozen storage | Storage temperature, shipment temperature records |
The coating and freezing steps are also the natural sampling framework for process monitoring. Published work on the microbiological quality of breaded shrimp uses sampling points at raw material, after peeling and deveining, before predust, before breading, after the first breading pass, after the last breading pass, before freezing and frozen — the same framework can be adopted directly as a monitoring schedule.
Defect or risk | Main causes | Control direction |
|---|---|---|
Coating falls off, crumb loss | Surface moisture too high, missing or uneven predust layer, batter viscosity too low | Join dewatering control to predust uniformity, then to batter viscosity and temperature |
Shell cracks, meat exposed | Batter layer too thick, oil temperature too high, freezing too fast and cracking the shell under stress | Adjust batter solids and dip time; validate frying temperature and the freezing curve together |
Darkening and black spot on the shrimp | Enzymatic browning and oxidation | Antioxidant dipping within what the target market permits, plus raw material freshness and cold chain |
Piece weight drift | Coating pickup variation, inaccurate grading | In-line weighing of coating pickup, verified grading accuracy |
Microbiological excursion | The window between coating and freezing is the highest-exposure segment: long exposure time, warm room temperature, cross contamination through utensils and surfaces | Treat that section as a timed, limited-exposure zone with defined sampling, room temperature control, and validated cleaning and disinfection |
Metal fragments | Equipment wear, damaged screens and belts | Metal detection specified as a critical control point, verified at defined intervals with test pieces |
Cold chain break | Under-freezing, storage temperature swings, long loading times | Record core temperature at freezing and storage temperature continuously, and log shipment temperature |
The four sections are matched by throughput, and the matching has to be calculated before layout and quotation rather than after.
Coating rhythm sets the line speed, expressed in pieces per minute. Frying capacity must be at least equal to the coating peak, or par-frying becomes the bottleneck. Freezing capacity must absorb the instantaneous output after par-frying — under-capacity freezing produces clumping and off-specification core temperatures. Pre-treatment is normally not rhythm-limited, but it is limited by manual stations and grading accuracy, so the number of stations has to follow the grade bands.
The equipment set in our range that maps to these sections is linked below. We do not publish a capacity figure for this line — the throughput of a coated shrimp line depends on piece size, grade, coating pickup and the coating rhythm you specify, so it is confirmed by trial run on your product, not quoted from a catalogue.
For breaded products entering the US market this clause is the operative standard, and it governs four separate things:
- Shrimp content. The finished product may not contain less than half shrimp. Composite units are measured by the separate method the clause sets out. The clause also defines the official de-breading method used to verify it, which is what a buyer's inspection will use — so it is worth running as a self-check before shipment rather than at the port.
- Permitted forms and naming. Six forms are defined: fantail or butterfly, butterfly tail-off, round, round tail-off, pieces, and composite units. The label has to use the corresponding name — for example breaded fantail shrimp, or breaded shrimp sticks for the composite form.
- What may not go into the coating. Artificial flavouring, artificial sweeteners, artificial colouring and chemical preservatives are all excluded from the batter and breading.
- What is permitted. The only chemical preservative allowed is ascorbic acid, used for its stated purpose of suppressing black spot on the shrimp, together with the antioxidants the chapter otherwise permits. Ingredients still have to be declared in full under the labelling regulations, and where ascorbic acid is used the declaration follows the required wording.
- Systems certification. HACCP is the floor. BRC or IFS and ISO 22000 are typically mandatory for supermarket and chain restaurant customers, and are usually requested at tender stage rather than at delivery.
- Export registration. Registration of the manufacturing establishment and the associated inspection and quarantine procedures apply in most destination markets.
- Allergens. Crustacean shellfish, wheat and gluten, and egg — the last commonly present in tempura batter — are the primary allergens. They require line segregation and validated cleaning between runs, and full allergen declaration on the label.
- Label content. Ingredient list, allergen statement, net content, country of origin, production date, shelf life and lot number.
Clients often ask about "NSF" as though it were a food product certification. NSF is a certification system for equipment and food-contact materials — it certifies the machine, not the shrimp. When a client's audit requirement mentions NSF, it is worth establishing which subject the certification is meant to cover before responding, because the two cannot be substituted for each other and promising otherwise is a commitment the line cannot deliver.
- Preduster flouring machine — the predust stage in Section B
- Double drum preduster — for higher coating pickup or heavier crumb adhesion
- Batter applicator — tempura batter application
- Breaded shrimp breading machine — breading equipment configured for shrimp
- Breading machine — the general breading range
- Continuous frying machine — the par-frying section
- Coating and breading solutions — the wider coating range this line draws on
- Shrimp preduster case study — a preduster installation on a shrimp line, including flour dust collection
- French fries production line — a comparable six-section solution for potato products
What has to be decided before the line can be quoted?
The product definition first: batter-only or panko breaded, raw breaded or par-fried, body form, tail-on or tail-off. Then the size grade and piece weight band, the target market and its labelling standard, throughput and shift pattern, pack format, the frying heat source, the freezing method and available refrigeration, the building conditions, and how much of the pre-treatment you want automated rather than manual.
Does a raw breaded product need a fryer at all?
No. Raw breaded products go from breading straight to freezing, and the par-frying section is omitted from the physical line. The same coating and freezing equipment serves both products, which is why the route decision is made at specification stage rather than later.
Why does predust matter so much on shrimp?
Because shrimp surface moisture is high and variable. The predust stage builds a thin dry layer that the batter can grip; without it, batter adhesion depends on dewatering alone and coating loss at the fryer rises sharply. In practice dewatering control, predust uniformity and batter viscosity have to be tuned together rather than one at a time.
Can the same line run other coated seafood?
Yes. The coating, frying and freezing sections are product-agnostic across coated seafood and coated meat items. What changes between products is the pre-treatment configuration, the coating recipe and the belt and mould settings.
How is capacity decided?
By trial run on your product. Piece size, grade, coating pickup, coating rhythm and the par-fry and freezing curves all move the number, so a figure taken from a catalogue is not a figure you can plan a factory around. We size the line from your inputs and confirm it on your product.
What is the main compliance risk on a breaded shrimp project?
Under-declared shrimp content and incorrect form naming on the US label are the two most frequent findings, because both are checked by the official de-breading method rather than by visual inspection. Allergen segregation between coated and uncoated runs is the third.
To specify a tempura shrimp production line for your own product, send us your product definition, grade, target market and building constraints and we will come back with a section-by-section configuration, the matching calculation between coating, frying and freezing, and a layout drawing. If you already have a specification sheet or a trial sample, include it — the coating rate and piece weight band are what determine the sizing.
---
