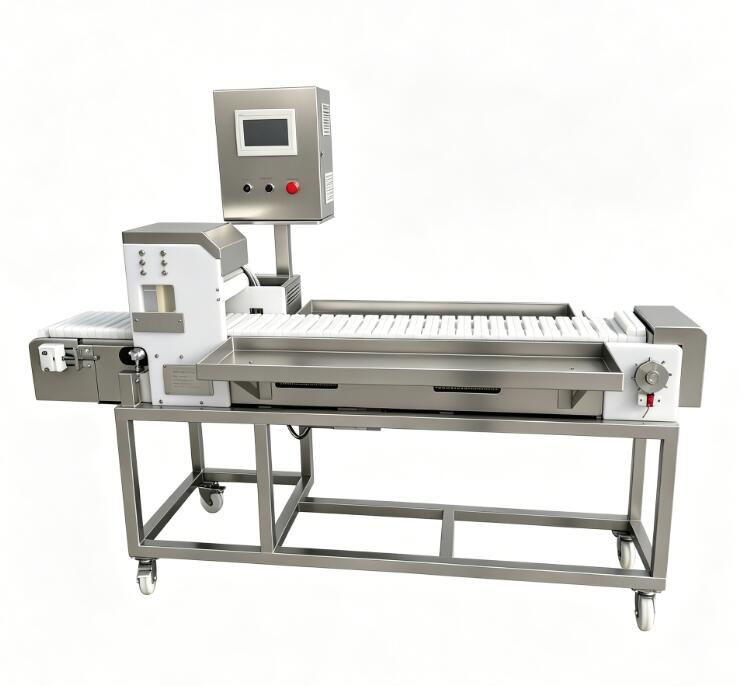

Tindo Automatic Meat Skewering Machine | Industrial Kebab Skewer Maker

Maximize your barbecue and kebab production with the Tindo Automatic Skewers Machine. Engineered for high-volume food processors, central kitchens, and ready-meal manufacturers, this heavy-duty machine automates the tedious process of manual skewering. Whether you are processing beef, pork, chicken, lamb, or even vegetables and seafood, the Tindo Skewer Maker delivers perfectly uniform results at an astonishing speed of up to 2,500 to 3,000 skewers per hour, while ensuring strict food safety compliance.

Capacity: 2,500 - 3,000 pcs/h
Material: Food-grade SUS304 Stainless Steel
Stick Compatibility: Bamboo sticks, wood sticks, and flat steel skewers
Application: Beef, lamb, chicken cubes, sausages, kelp, vegetables

Availability:



Inquire

Product Description

Product Description

Key Features & Selling Points

High Efficiency & Labor Saving

Replace up to 5–8 manual workers with just one machine. The automated pneumatic and servo-driven system precisely inserts sticks into the center of the product every time, drastically reducing labor costs and eliminating the risk of worker injuries.

Ultimate Product Versatility (Customizable Moulds)

No matter your product shape or culinary tradition—whether it's Middle Eastern Kebabs, Southeast Asian Satay, Japanese Yakitori, or Western BBQ skewers—our quick-change food moulds can be precisely customized to your meat size and skewer length (from 15 cm to 40 cm).

Smart Stick Feeding & Zero Damage

Equipped with an advanced sensor-controlled stick sorting hopper. It automatically detects, aligns, and feeds sticks without jamming. The precise insertion depth prevents splitting or breaking of delicate bamboo or wooden sticks.

Hygienic Design & Easy Maintenance

Built entirely from premium SUS304 stainless steel and food-grade PE polymers. The open-frame design allowing for rapid teardown without specialized tools, making daily washdowns (IP65 compliant) quick and thorough to meet stringent FDA and CE audits.

Technical Parameters

Specification / Model	Tindo TDS-2400 Automatic Skewer Machine
Production Capacity	2500– 3000 pieces / hour
Skewer Length Range	150mm – 400mm (Customizable)
Skewer Diameter	2.5mm – 5.0mm
Stick Type Compatibility	Round Bamboo/Wood Sticks, Flat Sticks, Stainless Steel Skewers
Material	SUS304 Stainless Steel & Food-grade PE
Power Supply	220V/380V, 50Hz/60Hz (Customizable per country)
Air Consumption	0.6 Mpa
Machine Dimensions	2065mm×1090mm×1630mm

Production Line Integration

To build a fully automated skewered food processing line, the Tindo Skewers Machine can be seamlessly integrated with our upstream and downstream processing machinery:

[Industrial Meat Grinder] ➔ [Meat Dicer/Cutter] ➔ [Tindo Skewers Machine] ➔ [Thermoforming Packing Machine]

Upstream Processing: Prepare your meat blocks using our heavy-duty Industrial Meat Grinders and cubing machines to ensure uniform portioning before they enter the skewer moulds.
Downstream Packing: Once the skewers are ready, protecting their freshness and visual arrangement is vital. Connect the conveyor directly to our high-speed Thermoforming Packing Machine. Using custom skin pack or MAP (Modified Atmosphere Packaging) trays, you can pack multiple skewers safely for retail shelves, optimizing your shelf life and presentation.
