Uniform thickness is the single most important factor in industrial meat processing. Whether you are making chicken nuggets, schnitzels, or formed patties, every millimeter of thickness variation translates directly into inconsistent cooking times, coating defects, and packaging weight errors.

This guide covers the engineering behind industrial chicken flattening machines, how to select the right capacity, and the real ROI these machines deliver.

Availability:



Inquire

Product Description

Product Description

What Is a Chicken Flattening Machine?

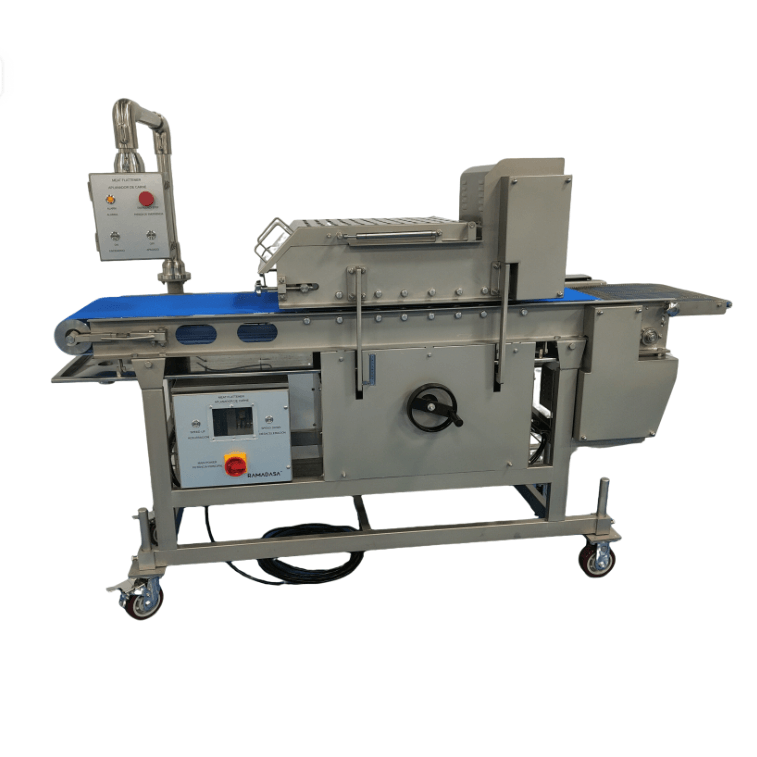

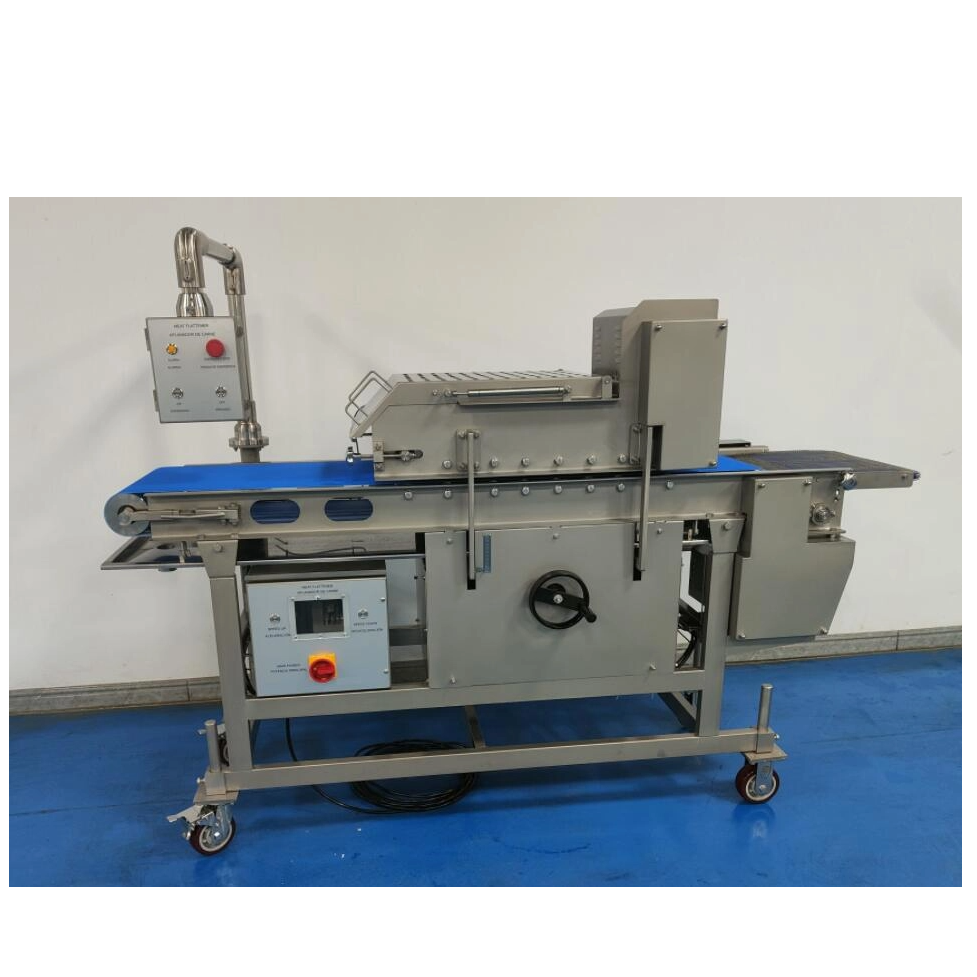

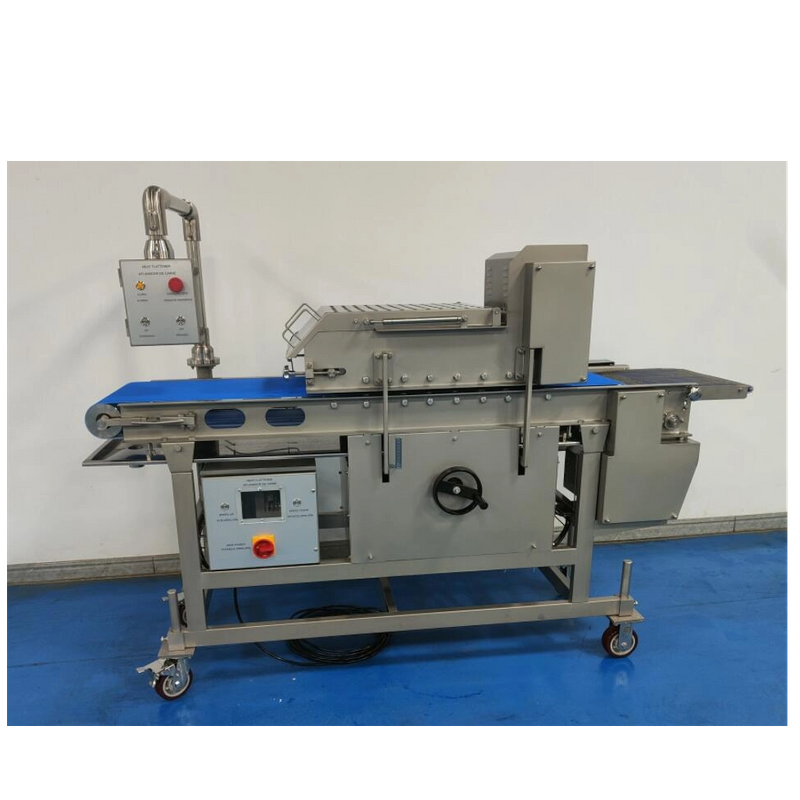

A chicken flattening machine (also called a meat flattener or chicken breast press) is an industrial machine that compresses chicken breasts, fillets, or other meat cuts to a precise, uniform thickness using a multi-roller calendering system.

Unlike manual pounding with a mallet — which is inconsistent, labor-intensive, and impossible to scale — an industrial flattener processes 800–1,200 kg per hour with thickness accuracy down to 0.1 mm.

Raw Chicken Breast → Conveyor Feed → Multi-Roller Progressive Compression → Uniform Thickness Output → Ready for Forming/Marinating/Frying

Why Thickness Uniformity Matters

1. Cooking Consistency

A chicken breast that varies from 6 mm to 12 mm across its surface will cook unevenly. The thin edges overcook and dry out while the thick center remains undercooked — a food safety risk. A flattened breast at a uniform 8 mm cooks evenly in a contact cooker, grill marker, or fryer, eliminating these problems.

2. Coating Quality

Uneven thickness creates uneven coating. Thicker areas absorb more batter, thinner areas get less — resulting in inconsistent product appearance and texture. Uniform thickness produces uniform coating.

3. Packaging Accuracy

Fixed-weight packaging (e.g., "4 × 150g chicken breasts") requires every piece to be within a tight weight tolerance. The only way to achieve consistent weight from natural, irregular chicken breasts is to flatten them to uniform thickness first.

4. Downstream Efficiency

A uniformly flattened breast processes 20% faster through a contact cooker or grill marker than an irregular one, because heat transfer is consistent across the entire surface.

How the Machine Works: 8-Roller Calendering Technology

The TINDO YY-series flattener uses a progressive 8-roller system:

Roller 1–2: Initial compression — reduces thickest part by 30%
Roller 3–4: Mid compression — spreads the breast evenly
Roller 5–6: Precision compression — achieves target thickness
Roller 7–8: Final finish — surface smoothing and final calibration

Key engineering features:

0.1 mm micro-adjustment — Each roller pair is independently adjustable. Operators set the final target thickness (e.g., 8.0 mm), and the PLC automatically sequences each roller pair to its calibrated gap.
SEW geared motors (Germany) — Provide the high torque needed to compress cold, dense chicken breast without stalling. Standard on TINDO YY600-II and above.
SUS304 stainless steel rollers — Food-grade, easy to sanitize, non-reactive with meat proteins.
Fiber-preserving compression — The progressive, multi-stage design flattens the meat without tearing muscle fibers. This preserves the "whole-muscle" mouthfeel that consumers expect from premium chicken products.

Technical Specifications

Model	YY200	YY400	YY600-II
Belt Width	200 mm	400 mm	600 mm
Capacity	200–400 kg/h	400–800 kg/h	800–1,200 kg/h
Roller Pairs	4 (8 rollers)	4 (8 rollers)	4 (8 rollers)
Thickness Range	4–40 mm	4–40 mm	4–50 mm
Accuracy	±0.5 mm	±0.5 mm	±0.1 mm
Motor	Domestic	Domestic	SEW (Germany)
Material	SUS304	SUS304	SUS304
Weight	280 kg	450 kg	820 kg

See the full specifications on our Chicken Flattener Machine page.

Capacity Selection: Which Model Do You Need?

Your Daily Output	Recommended Model	Operating Hours
500–800 kg	YY200	1 shift (8 hr)
1,000–2,000 kg	YY200	2 shifts
2,000–4,000 kg	YY400	1–2 shifts
4,000–8,000 kg	YY600-II	1–2 shifts
8,000+ kg	YY600-II × 2	2 shifts

Rule of thumb: Always add 30% headroom to your current requirement. Factory output tends to grow, not shrink.

ROI Analysis: How Quickly Does a Flattener Pay for Itself?

Consider a mid-sized plant processing 2,000 kg of chicken breast per day:

Without a Flattener (Manual Pounding)

Cost Item	Monthly
Labor (3 workers × 8 hr/day)	$3,600
Inconsistent yield (5% waste from overcooking thin edges)	$2,400
Downtime from worker fatigue	$800
Total monthly cost	$6,800

With a YY400 Industrial Flattener

Cost Item	Monthly
Labor (1 operator)	$1,200
Electricity (7.5 kW × 8 hr)	$180
Maintenance	$200
Total monthly cost	$1,580

Monthly savings: 6,800–6,800–1,580 = $5,220

YY400 machine cost: ~$15,000

Payback period: 15,000÷15,000÷5,220 = 2.9 months

Most TINDO customers achieve full ROI within 3–6 months, depending on labor costs in their country.

Applications Beyond Chicken Breast

While chicken breast flattening is the primary application, the TINDO flattener handles a wide range:

Product	Target Thickness	Application
Chicken breast	6–15 mm	Schnitzel, grilled fillet, nugget input
Pork loin	8–12 mm	Tonkatsu, cutlets
Beef steak	10–20 mm	Minute steak, beef schnitzel
Turkey breast	8–15 mm	Deli meat, cutlets
Fish fillet	5–10 mm	Breaded fish portions
Plant-based patties	8–15 mm	Vegan schnitzel

HACCP & Hygiene Compliance

The entire machine is built from SUS304 food-grade stainless steel. Key hygiene features:

Open-frame design — No hidden cavities where meat residue can accumulate
Quick-release rollers — Each roller can be removed for deep sanitation without tools
Sloped surfaces — All horizontal surfaces drain, preventing liquid pooling
IP65 electrical enclosures — Safe for daily high-pressure washdown
HACCP documentation — Full material traceability and cleaning SOPs provided

Common Mistakes to Avoid

1. Flattening Frozen Meat

Always flatten fresh or tempered meat (0–4°C). Frozen meat does not compress evenly and can damage the rollers. If your meat arrives frozen, use a tempering/thawing system before flattening.

2. Skipping Roller Gap Calibration

Rollers drift over time. Calibrate the gap spacing weekly using a feeler gauge. A 0.3 mm drift can throw off portion weight by 5–8 grams per piece — which adds up quickly.

3. Running Single Product Types on a Multi-Product Line

If you flatten chicken and then pork without cleaning, you risk cross-contamination and allergen issues. Always clean between protein types.

4. Ignoring Upstream Preparation

The flattener performs best when input pieces are roughly similar in size. If you receive whole, untrimmed chicken breasts, add a pre-trimming or portioning step upstream. Pairing a Forming Machine downstream of the flattener completes the full processing chain.
