In the competitive landscape of industrial meat processing, precision is no longer a luxury—it is a requirement for profitability. Whether producing chicken schnitzel, pork tonkatsu, or premium beef steaks, the primary challenge for food processors is achieving a perfectly uniform thickness across 100% of the production batch.

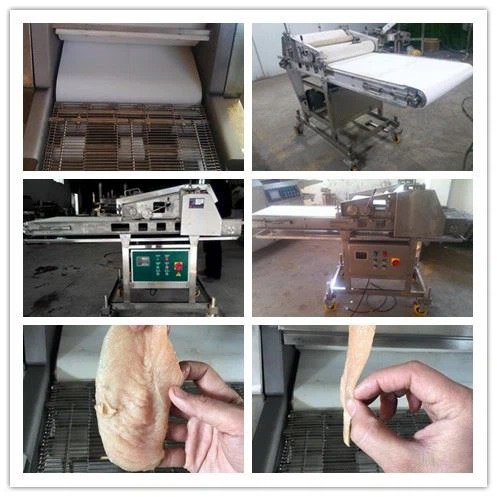

Inconsistent product height leads to a cascade of operational failures: uneven cooking, varying coating weights, and unpredictable frying times. At Jinan TINDO International Co., Ltd., we have engineered the 8-Roller Meat Flattening Machine to eliminate these variables. By combining micro-precision adjustment with heavy-duty durability, the TINDO YY-series transforms irregular meat cuts into high-value, uniform portions ready for automated coating and frying lines.
Many entry-level meat flatteners on the market utilize a simple 2-roller or 4-roller design. While these may suffice for low-volume operations, they often fail under the stress of 24/7 industrial use and can damage delicate meat fibers through "crush-force" rather than "calendering."
The TINDO Advantage: Multi-Stage Gradual Flattening Tindo’s proprietary 8-roller system (arranged in 4 precision pairs) utilizes a calendering effect. Instead of applying a single, high-impact force that can squeeze out essential meat juices and break cellular integrity, our 8-roller system applies pressure in stages.
Initial Contact: The first rollers stabilize and pre-align the meat.
Gradual Compression: The subsequent rollers gradually reduce the thickness to the target specification.

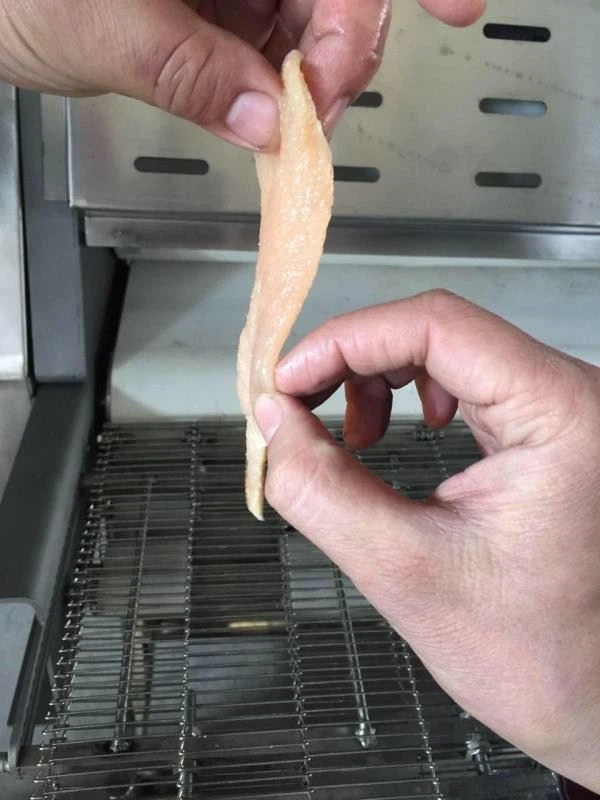

Integrity Preservation: This method protects the protein fibers, ensuring the final product retains its natural moisture and "bite" while achieving the desired surface area expansion.
In industrial baking and frying, a difference of just 1mm can change the core temperature of a product by several degrees during a fixed-time fry cycle.
The TINDO YY-series features a handwheel adjustment system designed for technical operators who demand surgical precision.
0.1mm Precision: Unlike traditional systems that use broad locking bolts, our handwheel allows for 0.1mm incremental adjustments. This level of granularity ensures that if your recipe requires a 12.5mm schnitzel, you get exactly 12.5mm, every single time.
Tool-Free Operation: No wrenches or specialized tools are required for thickness changes. This reduces downtime during SKU changeovers, allowing your line to transition from thin poultry fillets to thicker pork steaks in under 60 seconds.
When evaluating the ROI of a production line, throughput (Kg/h) is the most vital metric. The TINDO YY600-II is built for the "High Volume" segment of the market.
Performance Data (YY600-II Model):
Processing Capacity: Approximately 800 - 1,200 Kgs per hour (depending on product type and target thickness).
Adjustable Speed: The variable-frequency drive (VFD) provides a mesh belt speed of 4-19 m/min, allowing for perfect synchronization with upstream tenderizers or downstream breading machines.
Power Efficiency: Optimized 1.5 Kw motor provides high torque through an industry-leading SEW Reducer, ensuring consistent roller speed even when processing chilled or slightly tempered proteins.
A meat processing line is only as reliable as its weakest component. To ensure global serviceability and 24/7 uptime, TINDO integrates world-class electrical and mechanical parts.
Core Configuration: We standardize on SEW Reducers and Siemens or Schneider Electric components. This ensures that maintenance teams in Europe, the USA, or Australia can easily source spare parts locally if needed.
Global Voltage Customization: We understand that electrical standards vary by region. TINDO provides factory-direct customization for all global voltages, including USA-standard 480V/60Hz, 208V/60Hz, as well as European and Middle Eastern configurations.
Material Integrity: The entire frame and all rollers are constructed from Food Grade SUS304 Stainless Steel. With a 3mm plate thickness, the machine is resistant to the corrosive effects of meat brines and industrial cleaning agents.
Sanitation is the non-negotiable pillar of food processing. The TINDO flattener is designed for effortless high-pressure washdowns, meeting strict HACCP and CE requirements.
IP65 Waterproof Rating: All critical electrical enclosures and motors are shielded against water ingress during cleaning cycles.
Hydraulic Flip-Top Cover: The top section of the machine flips open via hydraulic assist, providing full internal access to the 8 rollers for deep cleaning.
Quick-Release Conveyor: The belt system can be tension-released and cleaned in place or removed quickly, preventing the buildup of bacteria in hidden crevices.
While the "Chicken Flattener" is its most common name, the versatility of the 8-roller system makes it essential for various sectors:
Poultry Processing: Perfecting chicken breasts for nuggets, schnitzels, and burgers.
Pork & Beef: Ideal for schnitzel (Tonkatsu), steak minute-steaks, and carpaccio.
Pet Food Industry: A growing segment in 2026. Uniform thickness is critical for the drying and dehydration of high-end meat treats, ensuring consistent shelf-life and moisture content across the batch.
Case Study Insight: Our equipment has been successfully deployed in major facilities from Russia (Cherkizovo Group) to Australia, proving its ability to handle diverse meat textures and high-stress environments.
Why invest in a premium 8-roller flattener?
Yield Increase: Uniformity reduces waste during the portioning and trimming stages.
Cooking Time Reduction: Flattened products cook up to 20% faster, increasing the total capacity of your ovens or fryers.
Coating Savings: Consistent surface area ensures that batter and breading pickup remains within a 1% variance, saving thousands of dollars in ingredients annually.
Q: Can the machine handle meat with bones?
A: No. The 8-roller system is designed for high-precision calendering of boneless proteins only.
Q: What is the maximum thickness of meat the machine can accept?
A: The machine can process meat cuts up to an input thickness of roughly 60-70mm, flattening them down to a range of 0-50mm.
Q: Do you provide on-site installation for large production lines?
A: Yes. TINDO provides remote technical support as standard, and for full production line integrations, we can dispatch engineers for on-site commissioning and staff training.
With 15 years of experience in OEM/ODM manufacturing, Jinan TINDO International Co., Ltd. is more than a supplier; we are your technical partner in food processing. Our CE-certified equipment is built to the highest international standards, backed by a 12-month comprehensive warranty.
Ready to optimize your meat processing line? Contact our Engineering Team for a customized technical proposal or to request a 2026 Price List.
