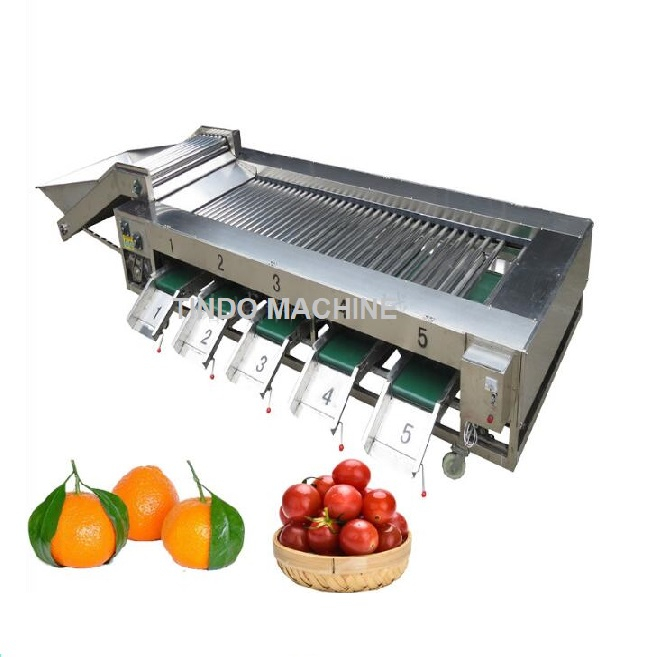

Roller Type Fruits Grading Machine

Roller Type Fruits Grading Machine, also nemed fruit sorting machine, which is an ideal machine for grading the different size fruits or vegetables. The machine can be customized for grading different size fruits, such as apple, jujubi, tamato,orange, kiwi fruits etc. The machine length, grading steps,fruit size can be customized.
Availability:
Product Description

Roller Type Fruits Grading Machine is composed of a frame, a roller bar group, a conveyor chain, a transmission and other parts.

The fruit conveyed by the front scrubber enters the roller, and rotates 360° under the drive of the roller while moving forward on the roller. So that the operators standing on both sides of the machine can "see the details".

The unqualified and defective fruits picked out are placed in the waste fruit box or placed in the waste fruit collection conveyor for further processing. The machine has the characteristics of simple and beautiful appearance, stable conveying, simple operation and convenient connection.

Characteristics Grading Machine

Roller Type Fruits Sorting Machine is suitable for sorting spherical fruits and vegetables or oblong fruits and vegetables.

Roller material can be selected (stainless steel mirror tube or PE materials).

Sprinkling device, water collection tank, and waste fruit collection and conveying device can be configured according to customer requirements.


Specification of Fruits Grading Machine

Model

Capacity(T/h)

Power(kw)

Mark

GXJ-3

1~3

1.1

1, The side can be customized

2,The speed is adjustable

GXJ-5

4~6

1.5

GXJ-10

8~10

2.2

GXJ-20

15~20

3



Details Of Fruits Grading Machine

fruits grading machine details

Application of Fruits Grading Machine

The diameter of fruit is no more than 80mm, suitable for figs, tomato, appel, passion fruit, mangosteen, gray jujube, jujube, blueberry, garlic, walnuts, kiwi, tomato, strawberry, cherry, hawthorn, kumquat, litchi, longan and other fruits and vegetables.

Grading quantity and diameter size range can be customized according to your requirements

Application of fruit grading machine
