Product Description

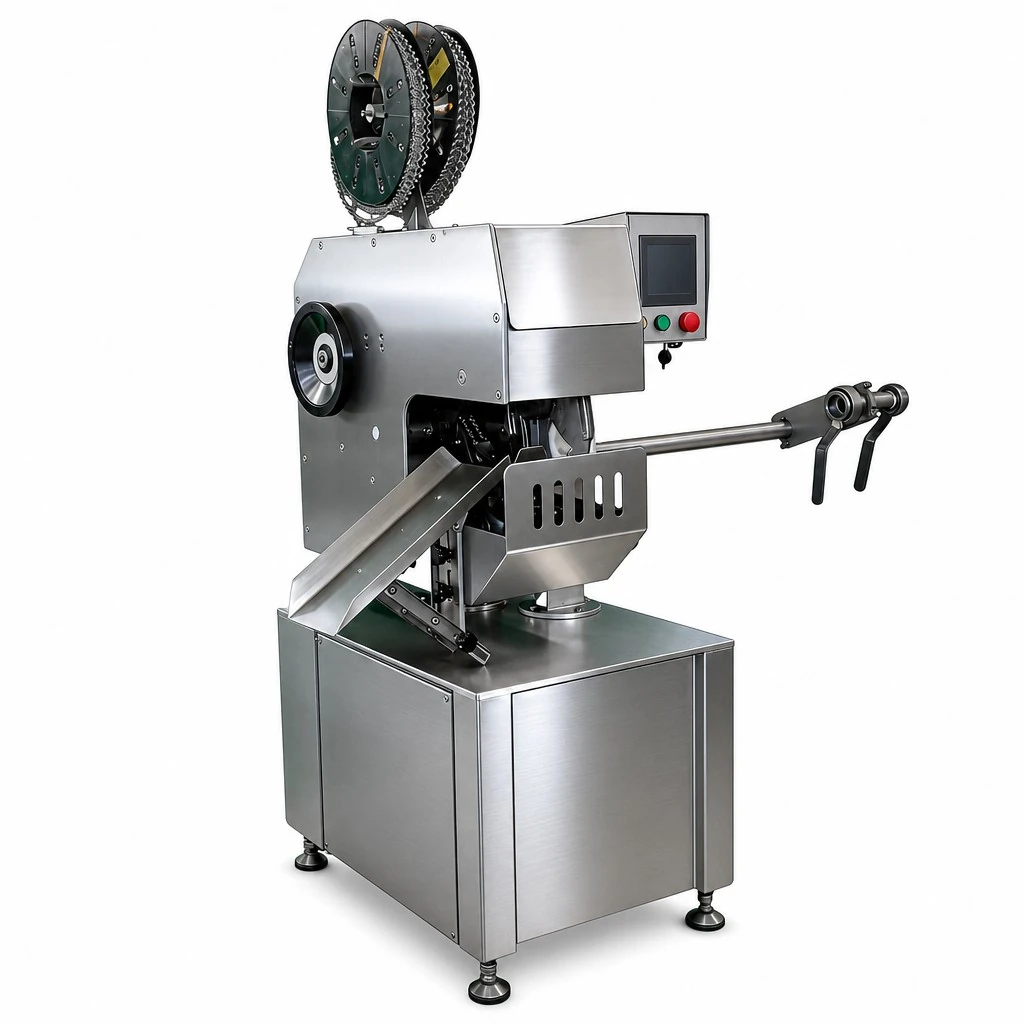

The TINDO sausage clipping machine seals filled sausage casings with aluminum wire heart-shaped clips — a servo + PLC + HMI operated double clipping system that delivers accurate, high-speed, reliable sealing with an attractive clip finish. It is the modern replacement for pneumatic double clipping machines, offering lower fault rates and faster operation.
The machine seals casing flat widths (folded diameters) from 25mm to 120mm — covering nylon film, shrink film, and PVDC film casings. Different casing widths require matched molds and aluminum wire specifications, which are changeable per production run.
The clipping machine links directly with quantitative filling machines to form an automatic production line, and supports dual filling tubes for higher throughput. Critical components use premium materials with specialized heat treatment for durability and consistent performance.
The machine operates on servo motors with PLC logic and an HMI interface. Compared to pneumatic double clippers, the servo-driven system delivers:
Accurate clip positioning — every clip seats consistently on the casing
Low fault rate — fewer moving parts, no air pressure variability
Fast operation — higher clips-per-minute throughput
Simple structure — easier maintenance and troubleshooting
The machine uses aluminum wire formed into heart-shaped clips — the industry-standard closure that is both secure and visually clean. The clip finish is neat and professional, suitable for retail-facing products where closure appearance matters. Aluminum clips provide a permanent, tamper-evident seal for cooked, smoked, and shipped products.
Seals casings with flat widths from 25mm to 120mm — covering:
Casing Type | Flat Width Range | Use |
|---|---|---|
Nylon film | 25-120mm | Cooked sausages, deli products |
Shrink film | 25-120mm | Cooked and chilled products |
PVDC film | 25-120mm | High-barrier processed meats |
Different casing widths require matched molds and aluminum wire sizes — changeable for production flexibility.
The clipper links directly with quantitative filling machines to form an automatic production line. Dual filling tube configuration doubles throughput — two fillers feed one clipper, or the clipper alternates between tubes for continuous operation.
Critical components are manufactured from premium materials with specialized heat treatment and precision machining, ensuring dimensional accuracy, high surface finish, and excellent wear resistance for long service life.
Parameter | Sausage Clipping Machine |
|---|---|
Control | Servo + PLC + HMI |
Clip Type | Aluminum wire, heart-shaped |
Casing Flat Width | 25-120mm |
Casing Types | Nylon, shrink film, PVDC |
Line Integration | Links with quantitative fillers |
Filling Tubes | Dual (optional) |
Mold / Wire Change | Matched to casing width |
Power | 3.5 kW |
Power Supply | 220V / 50Hz |
Clipping (This Machine) | Tying (ZXJ-01) | |
|---|---|---|
Closure type | Aluminum wire clips | Twine knots |
Seal strength | Permanent, tamper-evident | Secure, flexible spacing |
Casing width | 25-120mm flat width | 9-40mm diameter |
Best for | Cooked, smoked, shipped products | Hanging, smoking, drying |
Automation | PLC + servo, line-integrated | Touchscreen + servo |
Typical products | Hot dogs, cooked sausages, ham | Taiwanese, crispy, fresh sausages |
Product | Casing | Flat Width | Notes |
|---|---|---|---|
Cooked sausages | Nylon / shrink film | 25-120mm | Permanent clip seal |
Hot dogs | Shrink film | 25-120mm | Retail-ready closures |
Deli / sliced products | Nylon | 25-120mm | Tamper-evident sealing |
Ham / formed products | PVDC | 25-120mm | High-barrier protection |
Cooked smoked products | Shrink | 25-120mm | Secure shipment seal |
Grinder → Mixer → Sausage Filler → CLIPPING MACHINE → Link Cutter → SmokehouseStage | TINDO Equipment | What It Does |
|---|---|---|
Before | Fills casing with prepared sausage mix | |
CLIP | Sausage Clipping Machine (this page) | Seals casing ends with aluminum wire clips |
After | Separates into individual links | |
After | Smokes, cooks, or dries clipped sausages |
Q: Why choose this over a pneumatic clipper?
The servo + PLC system has a lower fault rate, faster operation, and simpler structure than pneumatic double clippers — fewer failure points and more consistent clip seating. It is the modern replacement for pneumatic machines.
Q: What wire size do I use?
Aluminum wire specification matches the casing width and mold — change wire and mold together when switching casing widths. TINDO supplies the matched wire and mold for your products.
Q: Can it integrate with my existing filling machine?
Yes — the clipper links directly with quantitative filling machines to form an automatic line. Dual filling tube configuration is available for higher throughput.
Q: What casing widths does it handle?
25mm to 120mm flat width — covering nylon film, shrink film, and PVDC film casings.
Q: What does "heart-shaped clip" mean?
The aluminum wire is formed into a heart-shaped clip at the closure point — the industry-standard secure, neat closure used across cooked and smoked sausage products.
Contact our sales team for a quotation with your target output and casing specifications.
