Hydro Cutter for French Fries
TINDO
Product Description

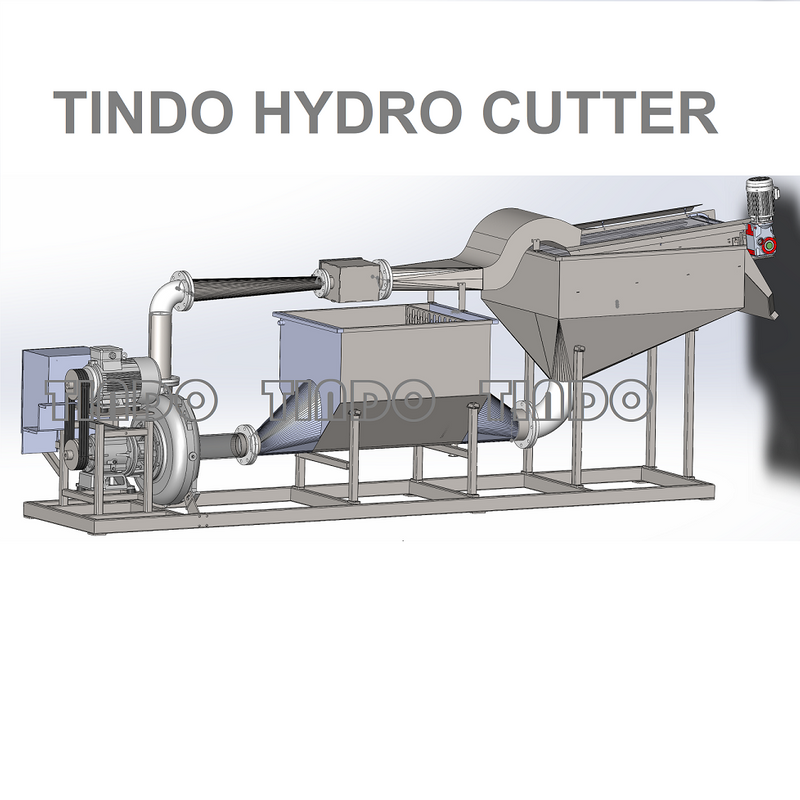

The TINDO Hydro Cutter, also known as the industrial Water-Knife, is the premier solution for large-scale French fry and vegetable processing facilities. Unlike traditional rotary or mechanical slicers, the hydro cutter uses high-velocity, pressurized water to propel raw products through stationary, precision-aligned blade blocks.
This state-of-the-art system is engineered to handle massive volumes—from 500 kg/h to 20,000 kg/h—while ensuring that the long-axis of the potato is perfectly aligned with the blade. The result is a significant increase in the percentage of "extra-long" fries, which are highly valued in the premium frozen snack market. By utilizing fluid dynamics, the Tindo Hydro Cutter provides a gentle yet ultra-fast cutting action that protects the cellular structure of the vegetable.
Fluid-Dynamic Alignment: The potato is held in a "water cushion" as it accelerates through the cutting tube. This ensures it hits the blades head-on, producing long, straight cuts with zero "feathering" or mechanical bruising.
High-End Component Sourcing: We utilize USA-made cutting blades and high-pressure pumps to ensure a razor-sharp cut surface. A smoother surface area means less oil pickup during the final frying stage, resulting in a healthier final product.
Starch Filtration System: Tindo’s unique design includes an integrated filtration loop that removes starch and fine particles during the cutting process, preventing pump wear and maintaining water clarity.
Tool-Free Blade Exchange: Our knife blocks are designed for rapid SKU changes. Switch from standard 9x9mm fries to 12x12mm or crinkle-cuts in under 10 minutes.
Maximum Yield (Up to 98%): By eliminating the "shattering" effect often seen in high-speed mechanical cutters, the hydro system maximizes the recovery of usable sticks and minimizes small "nubs" and waste.
Consistent Lengthwise Cuts: Especially for large premium potatoes, our system ensures the cut follows the longest possible dimension, maximizing the premium "A-grade" fry ratio.
Industrial Durability: Built entirely from SUS304 Stainless Steel with no blind corners. All motors and sensors are IP65/IP69K rated for intensive daily high-pressure washdowns.
Automation Ready: Fully compatible with upstream de-stoners and downstream blanching and frying lines. Available with Siemens PLC control for synchronized flow management
| Specification | Industrial Standard | High-Volume Configuration |
|---|---|---|
| Max Capacity | 5,000 kg/h | Up to 20,000 kg/h |
| Max. Product Diameter | 100 mm (4") | 120 mm (Customizable) |
| Blade Material | USA-Brand Hardened Stainless | USA-Brand Hardened Stainless |
| Knife Holder Type | Quick-Change Block | Dual-Chamber Redundancy |
| Water Consumption | Recirculated (Low loss) | Recirculated (Low loss) |
| Material Build | SUS304 Food Grade | SUS304 Food Grade |
| Specification | Value |
|---|---|
| Max. product diameter | Up to 100 mm (4") |
| Typical capacity range | 500–20,000 kg/h (depending on product and system design) |
A hydro cutter uses high-pressure water flow to transport potatoes through stainless steel cutting blades. Compared with traditional mechanical cutting methods, the hydro cutting system reduces product damage and provides more consistent French fry shapes.
The process includes:
Potato feeding
Water transportation
High-pressure cutting
Continuous discharge
This technology is widely used in frozen French fries factories and large-scale vegetable processing plants.
| Feature | Hydro Cutter | Traditional Cutter |
|---|---|---|
| Cutting quality | More uniform | More variation |
| Product damage | Lower | Higher |
| Capacity | 500-20000 kg/h | Limited |
| Suitable for | Industrial production | Small production |
Detailed Pictures

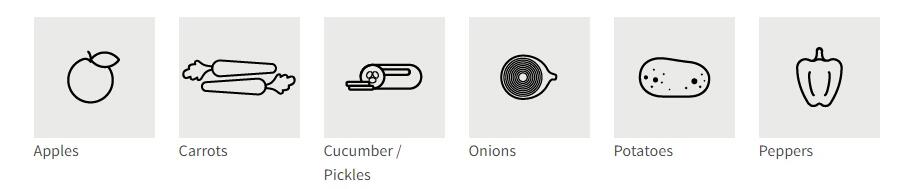

Applications
For frozen French fries manufacturers, hydro cutters provide continuous high-speed cutting before blanching and frying processes.
Suitable for carrot sticks, cucumber strips and other vegetable products.
Helps produce consistent raw materials with reduced waste.
6,
Looking for a hydro cutter for French fries or vegetable sticks? Tell us your raw materials (such as potatoes, carrots or cucumbers), required capacity (kg/h), target product size and line layout, and the TINDO team will design a suitable hydro cutting solution and send you a detailed quotation within 24 hours.
1, Why do I need a hydro cutter for French fries?
You need a hydro cutter for large-scale, efficient, and consistent French fry production.
because it uses high-pressure water to shoot potatoes through sharp blades, creating uniform, long sticks with minimal waste, less oil pickup (smoother cut), and higher throughput than mechanical cutters, ensuring quality for commercial demands. It's ideal for high-volume processing where speed, precision, and maximizing fry length are crucial.
2, What are Tindo's French Fries hydro cutter advantages?
Tindo choose reliable electric parts for the hydro cutter, using USA brand cutting blades, and water pumps. Tindo's special design can help you filter some starch during cutting.
Also, we can do some customization according to your whole french fries production plant.
3,Can this Hydro Cutter cut the sweet potatoes?
Yes, Tindo's hydro cutter can be used for cutting sweet potato.
TINDO hydro cutters can handle approximately 500–20,000 kg/h depending on product type, cutting size and production requirements.

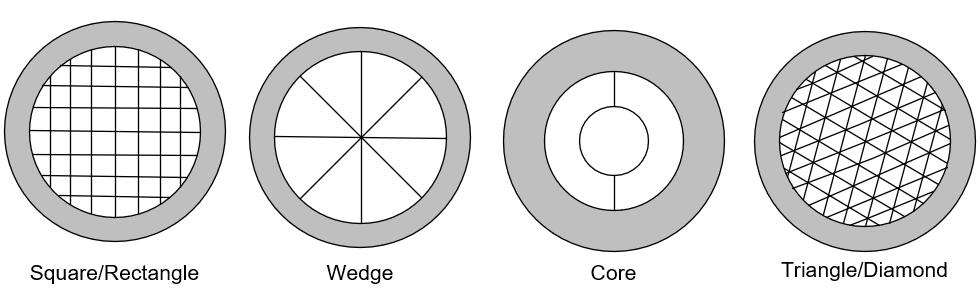

Yes. The cutting system can be customized for different fry profiles including strips and other shapes according to production needs.
Yes. Hydro cutters are widely used in industrial French fries production lines because they provide continuous cutting, high efficiency and consistent product quality.
Besides potatoes, hydro cutters can process carrots, cucumber and other vegetables requiring precise cutting.
