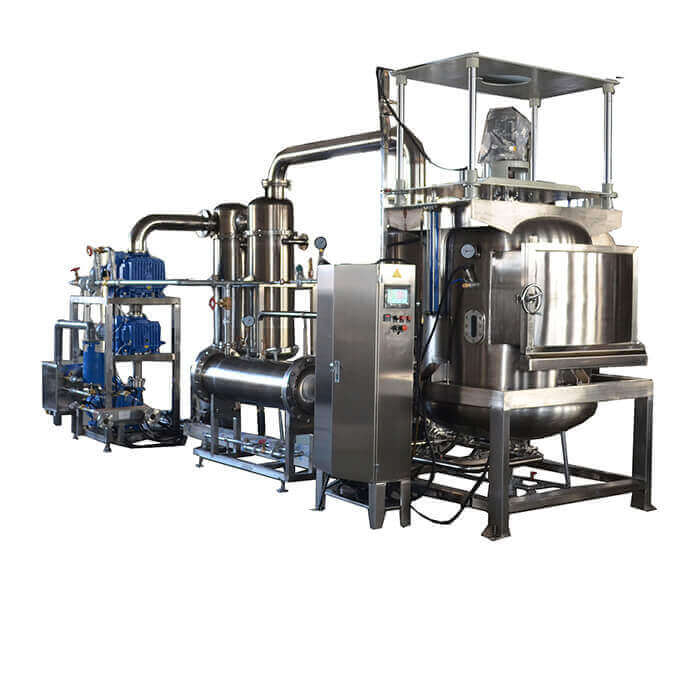

Apple Chips Crispy Vacuum Fryer Machine
TINDO
Product Description
The Apple Chips Crispy Vacuum Fryer Machine is expertly engineered for high-volume production of delicious, healthy apple crisps and a wide range of fruit and vegetable chips. Featuring the latest vacuum frying technology, this machine is trusted by snack manufacturers worldwide for its reliability, efficiency, and outstanding product quality.
With a powerful vacuum system reaching 200Pa, the fryer operates at lower temperatures (up to 120°C), preserving the natural color, nutrients, and flavor of apples and other produce. The low-temperature process ensures every chip is perfectly crisp and has a lower oil content—ideal for health-conscious consumers.
The 250L basket accommodates 70–90kg of raw materials per batch, achieving an impressive hourly throughput of 150–200kg. Each batch is completed in just 20–25 minutes, making it perfect for large-scale snack production lines.
High vacuum levels prevent excessive oil absorption, resulting in chips that are lighter, crispier, and more visually appealing than those made with traditional methods. The chips maintain a flat shape, vibrant color, and enhanced nutritional value, setting your products apart in the market.
While optimized for apple chips, this vacuum fryer is suitable for a broad variety of raw materials, including:
Fruits: Apple, jackfruit, pear, persimmon, banana, pineapple, peach, mango, strawberry, muskmelon, and more.
Vegetables: Beetroot, carrot, sweet potato, pumpkin, okra, taro, lotus root, mushroom, cucumber, etc.
Nuts & Others: Peanut, almond, cashew, pea, walnut, aquatic products (fish, shrimp), bean products, meat, and even Chinese herbal medicine.
Steam heating with efficient oil circulation and interlayer heating
Adjustable deoiling speed (0–300 n/min) for optimal chip texture
Energy-saving design and easy-to-clean structure
22.5KW total power, 380V/3phase 50Hz operation, and robust cooling system
Consistent, high-quality crispy chips with low oil content
Reduced energy consumption and improved process efficiency
Trusted by food manufacturers in North & South America, Asia, and Europe
Supported by Jinan TINDO’s expert technical service and after-sales support
Upgrade your snack processing line with the Apple Chips Crispy Vacuum Fryer Machine—the ideal solution for producing top-quality, healthy, and delicious apple chips and fruit crisps.
Product Parameters
| Model | VF250 | |
| Processing input capcacity (material: Kg/batch)( approximately) | 70-90Kgs | |
| Basket volume(L) | 250 | |
| Processing time(min/batch) | 20-25min | |
| Vacuum degree(MPa)(at water temperature 15℃) | – 0.099~0.0998(Limited vacuum can be 200Pa) | |
| Oil temperature(℃) | Environment temp~120 | |
| Heating | Heating source | steam |
| Steam consumption(Kg/h) | 250 | |
| Interlining steam pressure( MPa) | ≤0.2 | |
| Heat exchanger steam pressure(MPa) | 0.4~0.5 | |
| Steam entrance(mm) | DN40 | |
| Steam exit (mm) | DN25 | |
| Heating method | Oil pump outside loop and interlayer | |
| Deoiling speed n/min | 0~300 | |
| Cooling water consumption(T/H) | 25 | |
| Cooling water entrance/exit diameter(mm) | DN50/DN50 | |
| Vacuum pump cooling water entrance(mm) | DN20 | |
| power | Volt | 380V/3phase 50Hz |
| Total power(Kw) | 22.5KW | |
Product Applications:
The materials can be processed by our Apple chips crispy Vacuum Fryer machine:
Most of fruits and vegetables which are very easy to be obtained and have attractive color, special flavor, more nutrition and low cost are much preferred to produce the crisp chips. Especially raw materials which can’t be processed by traditional frying method, as pineapple, strawberry, cucumber etc. Raw materials used in common are as followed:
Vegetables: Beetroot,Onion, Carrot, Sweet potato, Potato, Pumpkin, Okra, Balsam pear, Taro, Lotus root, Kidney bean, Mushroom, Cucumber, etc.
Fruits: Jact fruit, Apple, Pear, Persimmon, Banana, Pineapple, Peach, Mango, Strawberry, Chinese gooseberry, Carambola (star fruit), Muskmelon etc.
Nuts: Peanut, Almond, Pea, Walnut, cashew nut etc.
Aquatic products: Fish, Shrimp, Shellfish, etc.
Others: Bean Product, meat, Chinese herbal medicine, etc.
