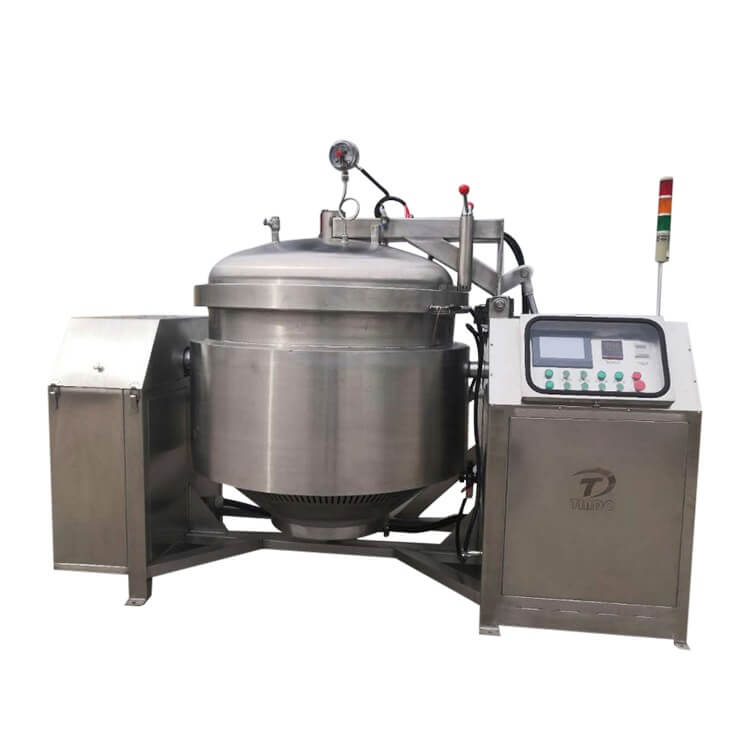

Manual Tilting High Pressure Cooking Kettle

This manual tilting high pressure cooking kettle is a ideal cooking kettle used for cooking or boiling foods,such as beans,meat,bones,vegetables etc. The tilting of the kettle is manually, by a hand wheel rotating. The lid can be opened manually also.
The cooking pressure inside the kettle can be adjusted and controlled by the pressure gauge. The Max. pressure inside can be 0.35Mpa.
There are different heating source can be selected, steam, gas, electric thermal oil and induction.
The kettle materials is SUS304, highly food grade.
Product Description

This Manual Tilting High Pressure Cooking Kettle is widely used for cooking hard materials in a short time like bones, beans, meat soup, etc.

The tilting of the pot and openning the lid is manually, but it is not hard to operate.

The Manual Tilting High Pressure Cooking Kettle costs is cheaper than the automatic Cooking Kettle which is dirven by hydraulic.

The volume of the kettle can be 200L to 1000L. It aims to increase efficiency for each batch within short working time. The pressure cooking kettle can shorter 50%-70% cooking time than normal cooking pot.

The high pressure of steam in the pot helps cooking materials even the heating is turned off, which can definitely save heating energy and decrease much cooking time.
Product Advantages

High capacity ,up to 600L tilting type for industrial purpose, 1000L for stationary type.

Heating source can be thermal oil, steam, gas, electric induction, etc.

Whole process under control of the control panel, easy to operate.

The pressure in the kettle can be adjusted,with safety automatic pressure release valve.

Kettle lid can be opened and closed manually.

The kettle lid has special safety locking system,make sure it works safety.

Kettle body tilting 90 degrees for easy discharging of processed materials.

Stainless 304 materials, anti corrosion, and easy to clean..

Temperature is controlled and monitored accurately.

Product Parameters
Capacity Bowl Diameter Bowl Depth Machine Dimension Heating Power
(electric heating type)
Induction Coil Power
(Induction heating type)
100L 700mm 500mm 2100*1100*1450mm 18KW 20KW
200L 800mm 550mm 2200*1150*1500mm 18KW 20KW
300L 900mm 600mm 2300*1200*1550mm 27KW 30KW
400L 1000mm 650mm 2400*1250*1800mm 27KW 35KW
500L 1100mm 700mm 2500*1300*1850mm 36KW 40KW
600L 1200mm 750mm 2600*1350*1900mm 36KW 45KW


Product Applications

High Pressure Cooking kettle can be used for mixing and cooking industry, filling cooking industry (jam, lotus paste, preserved fruit, jujube paste), meat processing industry(pot-stewed fowl, ported meat paste, hoisin sauce), seasoning industry(hotpot condiment, instant noodles paste, chili sauce),hotel , restaurant and fast food site.


vacuum-cooker     vacuum-mixer-2
