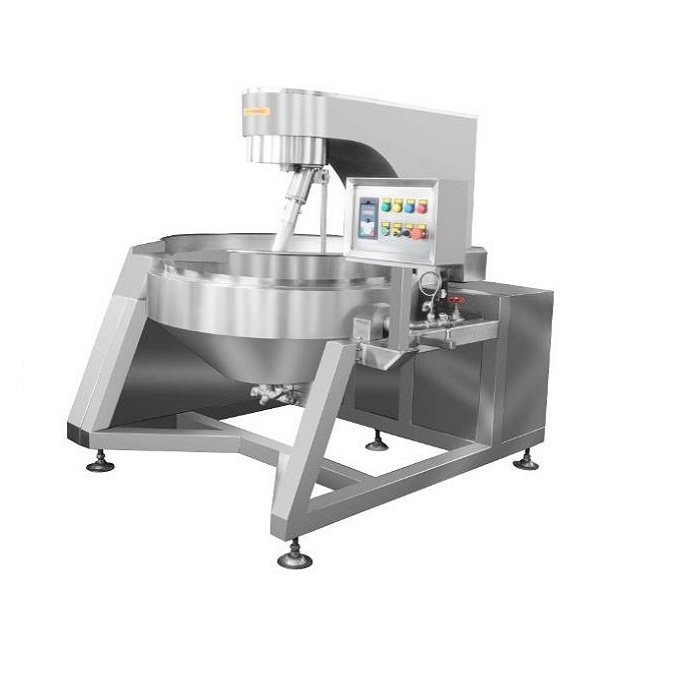

Steam Heating Planetary Cooking Mixer

Steam Heating planetary cooking mixer use steam heating method has the characteristics of large heating area, high thermal efficiency, uniform heating, and low heat transfer coefficient.
Food-grade high quality materials.
Planetary mixing without burning.
Stepless frequency converter.
Automatic hydraulic tilting.
Product Description

A Steam Heating planetary cooking mixer is a cooking mixer heated by steam in the interlayer. It is also called steam pot, sandwich pot, cooking boiler, or interlayer steam pot. As the name implies, the pot body is a double-layer structure composed of inner and outer spheres. The pot is an excellent equipment for food processing to save labors and improve working conditions.

Product Advantages

High thermal efficiency: It takes about half an hour to heat the water from normal temperature to boiling.

Planetary stirring: The agitators cover every corner of the pot. The materials can be mixed evenly in a short time to improve product quality.

Double-cylinder hydraulic tilting: It makes the discharging more convenient and fast.

Automatic temperature measurement: The temperature control head directly measures the material temperature accurately during cooking.

Fully stainless steel: The bowl and the parts connecting with food directly are made of SS304. SS316 is also available.

Product Parameters
CapacityBowl DiameterBowl DepthThicknessStirring PowerDimensionSteam Pressure
100L800mm400mmInner 4mm; Outer 3mm1.5KW1650*1300*1550mm2.5-3 bar
200L900mm450mmInner 4mm; Outer 3mm1.5KW1800*1650*1600mm2.5-3 bar
300L1000mm500mmInner 4mm; Outer 3mm1.5KW1850*1800*1650mm2.5-3 bar
400L1100mm550mmInner 5mm; Outer 4mm2.2KW1950*1900*1700mm2.5-3 bar
500L1200mm600mmInner 5mm; Outer 4mm4KW2200*1850*1750mm2.5-3 bar

Product Applications

Steam Heating planetary cooking mixer can be used for mixing and cooking industry, filling cooking industry (jam, lotus paste, preserved fruit, jujube paste), meat processing industry(pot-stewed fowl, ported meat paste, hoisin sauce), seasoning industry(hotpot condiment, instant noodles paste, chili sauce),hotel , restaurant and fast food site.
