Steam Heating Horizontal Cooking Mixer
You are here: Home » Products » Cooking Kettle Mixer » Horizontal Axis Cooking Mixer » Steam Heating Horizontal Cooking Mixer
Share to:

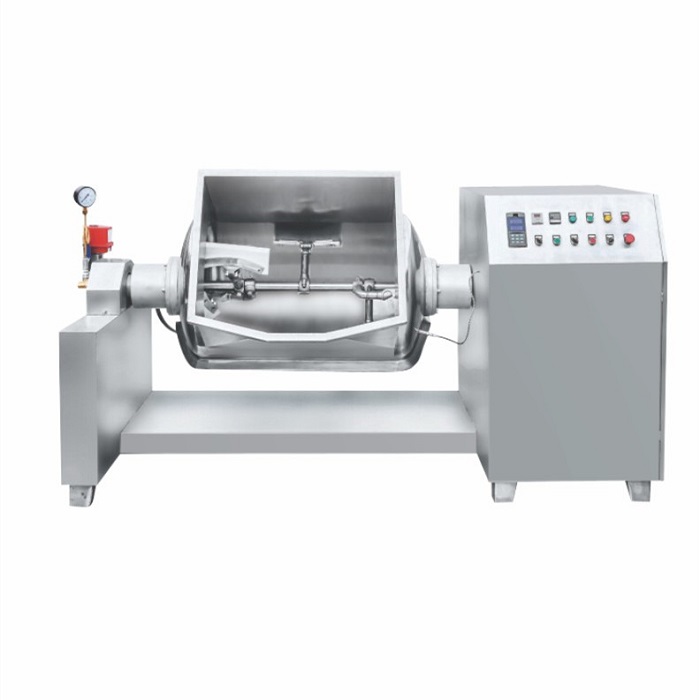

Steam Heating Horizontal Cooking Mixer

It is a special cooking kettle with agitators.
Full SUS 304 cooking tank, SUS316 optional. Food-grade high quality materials.
Roll stirring mixes the materials more evenly.
Stepless frequency converter.
Automatic hydraulic tilting.
Availability:
Product Description

This Steam Heating Horizontal Cooking Mixer using U type design,and vacuumized from the bottom, enclosed slot kettle.The kettle and other parts which touch the food are made from top quality SS304,easy cleaning.


Heated by steam.It is easy operation, heating area large, high heating efficiency and heating uniformly characteristics.

Mixers driven by the powerful reducer, running more steady. Using frequency speed motor, the mixing rotation speed can be adjustable from zero to the highest speed, be beneficial to control the temperature accurately, operating steadily.

Hydraulic discharging method, automatic discharging, fully discharged..

With the Teflon agitator, it scrape the bowl surface clean, no food stick, no food burnt during cooing

As a large cooking kettle mixer,it can be used for large capacity high viscosity food,such as Jujube paste,red bean paste,lotus paste filling etc.

Product Advantages

Full Stainless Steel materials, and food grade Teflon agitators.

Steam heating method has the characteristics of large heating area, high thermal efficiency, uniform heating, and low heat transfer coefficient.

Reasonable structure and convenient operation.

Powerful mixing,suitable for high viscosity food.

Save space,large volume.

Product Parameters
Model Bowl Depth Stirring Power Tilting Power Stirring Speed Dimension
300L 500mm 2.2KW 0.75KW 6-30r/min 2400*1100*1350mm
400L 600mm 2.2KW 0.75KW 6-30r/min 2600*1050*1350mm
500L 700mm 4KW 0.75KW 6-30r/min 2800*1150*1350mm
600L 700mm 4KW 0.75KW 6-30r/min 3000*1200*1350mm


Gas-Heating-Horizontal-Cooking-Mixer (1)

Product Applications

Steam Heating Horizontal Cooking Mixer can be used for mixing and cooking industry, filling cooking industry (jam, lotus paste, preserved fruit, jujube paste), meat processing industry(pot-stewed fowl, ported meat paste, hoisin sauce), seasoning industry(hotpot condiment, instant noodles paste, chili sauce),hotel , restaurant and fast food site.


Gas-Heating-Horizontal-Cooking-Mixer-2
