Induction Heating Horizontal Cooking Mixer
Home » Products » Cooking Kettle Mixer » Horizontal Axis Cooking Mixer » Induction Heating Horizontal Cooking Mixer


Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

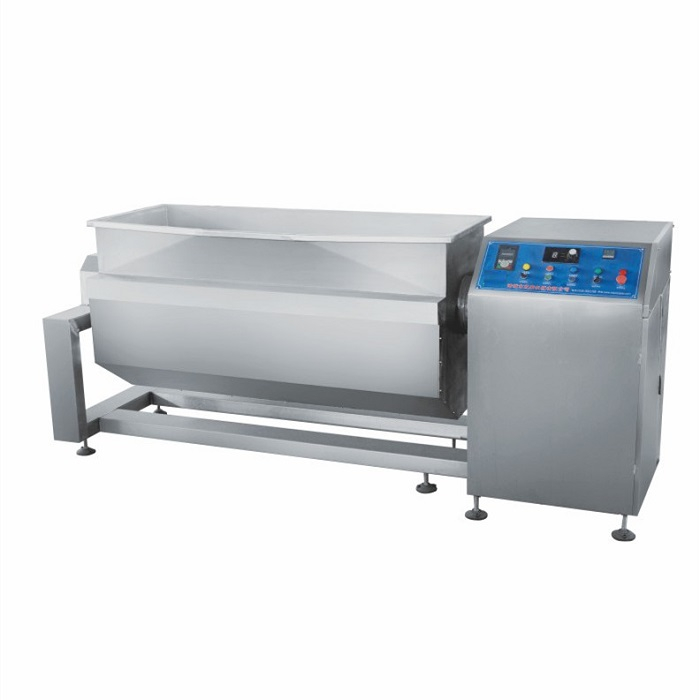

Induction Heating Horizontal Cooking Mixer

Electromagnetic heating method has the characteristics of fast heating, no fire, no explosion, no harmful gas, etc.
High efficiency and energy saving, saving 20% -30% compared with electric heating.
Food-grade high quality materials.
Roll stirring mixes the materials more evenly.
Stepless frequency converter.
Automatic hydraulic tilting.
Product Description

Induction Heating Horizontal Cooking Mixer using U type design,and vacuumized from the bottom, enclosed slot kettle.The kettle and other parts which touch the food are made from top quality SS304,easy cleaning.

Heated by induction,which is saving power,temperature control accuracy.It is easy operation, heating area large, high heating efficiency and heating uniformly characteristics.

Mixers driven by the powerful reducer, running more steady. Using frequency speed motor, the mixing rotation speed can be adjustable from zero to the highest speed, be beneficial to control the temperature accurately, operating steadily.

Hydraulic discharging method, automatic discharging, fully discharged..

With the Teflon agitator, it scrape the bowl surface clean, no food stick, no food burnt during cooing

As a large cooking kettle mixer,it can be used for large capacity high viscosity food,such as Jujube paste,red bean paste,lotus paste filling etc.

Product Advantages

Full Stainless Steel materials, and food grade Teflon agitators.

Induction heating, which save electric power 30% than traditional electric heating machine.

Temperature controlled accuracy.

Reasonable structure and convenient operation.

Powerful mixing,suitable for high viscosity food.

Save space,large volume.

Product Parameters
Model Bowl Depth Stirring Power Tilting Power Coil Power Stirring Speed Dimension
300L 500mm 2.2KW 0.75KW 25KW 6-30r/min 2400*1100*1350mm
400L 600mm 2.2KW 0.75KW 30KW 6-30r/min 2600*1050*1350mm
500L 700mm 4KW 0.75KW 35KW 6-30r/min 2800*1150*1350mm
600L 700mm 4KW 0.75KW 40KW 6-30r/min 3000*1200*1350mm

Gas-Heating-Horizontal-Cooking-Mixer (1)

Product Applications

Gas Heating Horizontal Cooking Mixer can be used for mixing and cooking industry, filling cooking industry (jam, lotus paste, preserved fruit, jujube paste), meat processing industry(pot-stewed fowl, ported meat paste, hoisin sauce), seasoning industry(hotpot condiment, instant noodles paste, chili sauce),hotel , restaurant and fast food site.
