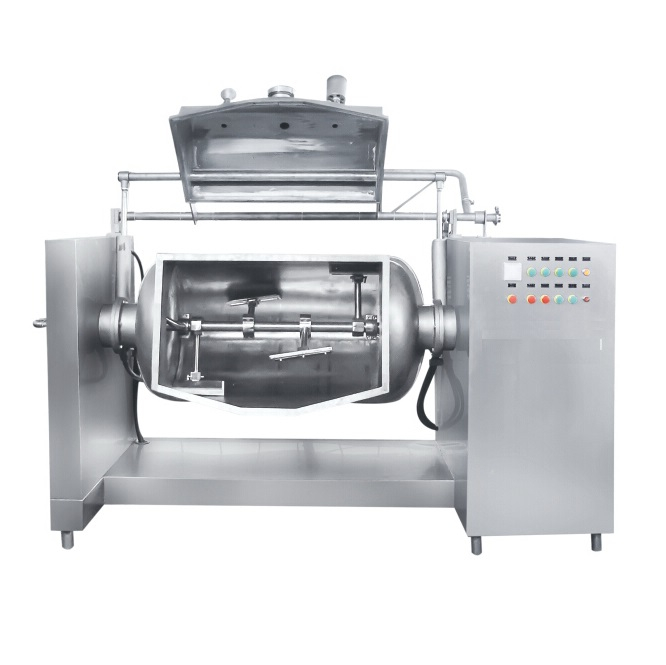

Vacuum Cooking Mixer

It is a special cooking kettle with agitators,and the food will be cooked under vacuum condition.

Low tempreture cooking/frying to maintain the original color and taste.

Full SUS 304 cooking tank, SUS316 optional.

Food-grade high quality materials.

Roll stirring mixes the materials more evenly.

Stepless frequency converter.

Automatic hydraulic tilting.
Product Description

This vacuum cooking mixer using U type design,and vacuumized from the bottom, enclosed slot kettle.The kettle and other parts which touch the food are made from top quality SS304,easy cleaning.

Gas,steam,electric heating can be selected, heating area large, high heating efficiency and heating uniformly characteristics.

Mixers driven by the powerful reducer, running more steady.

Using frequency speed motor, the mixing rotation speed can be adjustable from zero to the highest speed, be beneficial to control the temperature accurately, operating steadily.

Hydraulic discharging method, automatic discharging, fully discharged..

With the Teflon agitator, it scrape the bowl surface clean, no food stick, no food burnt during cooing

As a large cooking kettle mixer,it can be used for large capacity high viscosity food,such as Jujube paste,red bean paste,lotus paste filling etc.

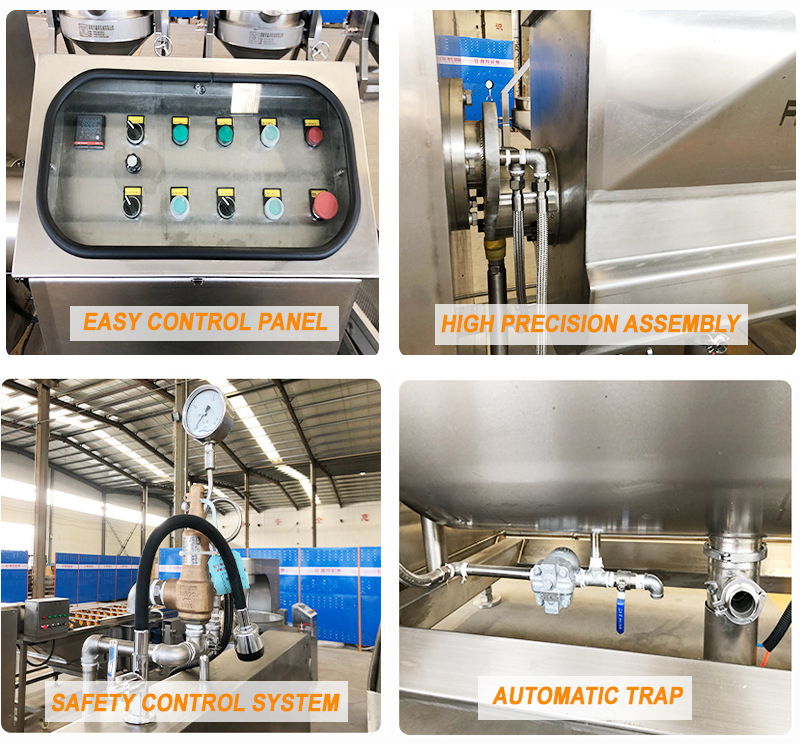

Product Advantages

Cooking and mixing the foods under vacuum condition, protect the food color, and concentrate faster.

Full Stainless Steel materials, and food grade Teflon agitators.

Different heating solution can be selected, steam,gas,induction, electric thermal oil.

Reasonable structure and convenient operation.

Powerful mixing,suitable for high viscosity food.

Save space,large volume.

Product Parameters
Model Bowl Depth Stirring Power Tilting Power Stirring Speed Dimension Heating Source
300L 500mm 2.2KW 0.75KW 6-30r/min 2400*1100*1350mm Gas/Steam/Induction
400L 600mm 2.2KW 0.75KW 6-30r/min 2600*1050*1350mm Gas/Steam/Induction
500L 700mm 4KW 0.75KW 6-30r/min 2800*1150*1350mm Gas/Steam/Induction
600L 700mm 4KW 0.75KW 6-30r/min 3000*1200*1350mm Gas/Steam/Induction


Product Applications

Vacuum cooking mixer can be used for mixing and cooking industry, filling cooking industry (jam, lotus paste, preserved fruit, jujube paste), meat processing industry(pot-stewed fowl, ported meat paste, hoisin sauce), seasoning industry(hotpot condiment, instant noodles paste, chili sauce),hotel , restaurant and fast food site.


vacuum-cooker        vacuum-mixer-2
